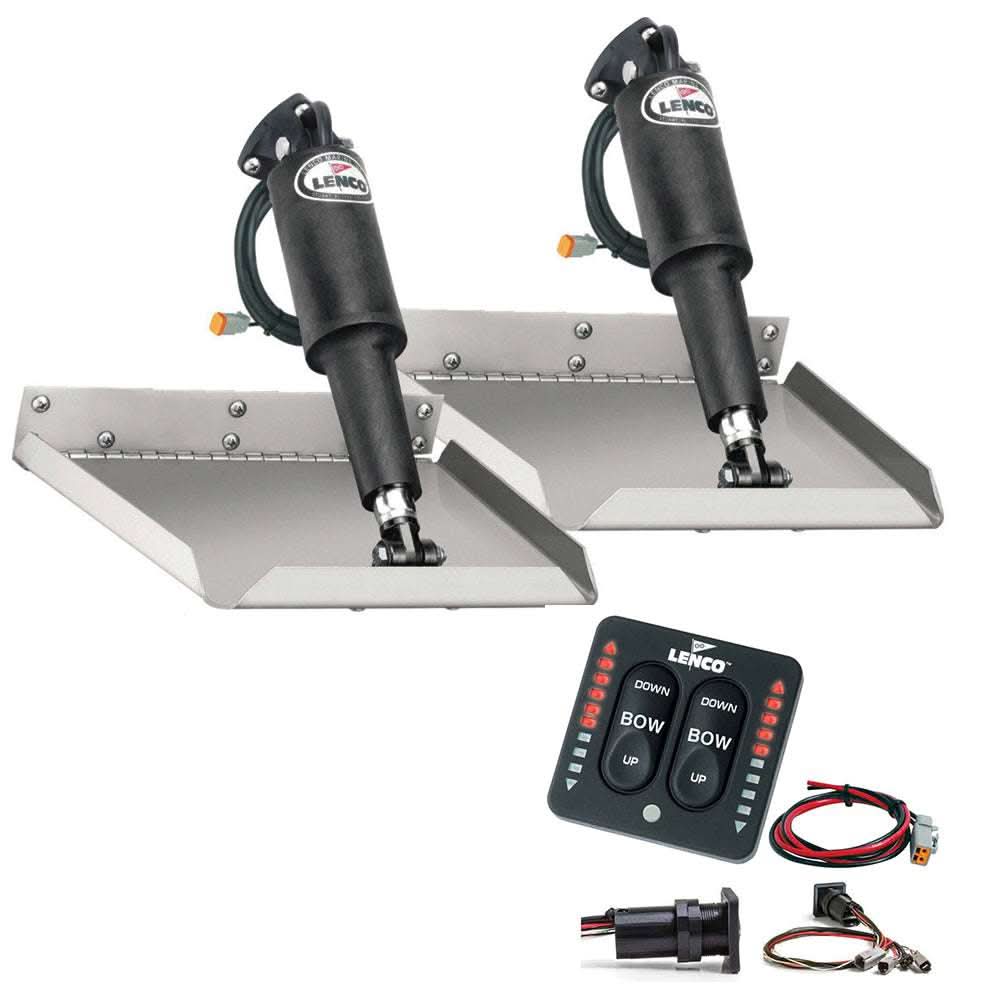

Lenco 12" x 18" Edgemount Trim Tab Kit with LED Indicator Switch Kit 12V - TT12X18EI

Lenco 12" x 18" Edgemount Trim Tab Kit with LED Indicator   Switch Kit 12V - TT12X18EI

The Lenco TT12X18EI is a complete, 12-volt Edgemount Trim Tab Kit designed for boats with limited transom space. This kit features high-performance electric actuators and 12" x 18" stainless steel planes, bundled with Lenco's premium LED Indicator Switch to provide precise control and clear visual feedback of your tab positions.

The Edgemount Advantage

The "Edge Mount" design attaches the actuator to the trailing edge of the trim tab plane. This requires 4" less transom height than standard mounting kits, making it the go-to solution for boats with swim platforms, low transoms, or limited mounting surface area.

Key Features

• Instant Response Actuators: Lenco’s electric ballscrew design is up to three times more powerful than hydraulic systems and provides immediate reaction to helm commands.

• LED Indicator Switch: The included tactile switch features two high-intensity LED displays that show the exact position of your tabs. It includes a built-in retract feature that automatically returns the tabs to the "up" position when power is removed.

• Auto-Dimming Display: An integrated photo eye monitors ambient light and adjusts the LED intensity for perfect visibility in both direct sunlight and nighttime conditions.

• Maintenance-Free & Submersible: The entire system is sealed for life; there are no hydraulic pumps to fail or oil to leak.

• Heavy-Duty Construction: Features 12-gauge laser-cut 304 stainless steel planes and 316 "super buff" stainless steel actuator rams.

Applications

• Powerboats, center consoles, cuddy cabins, and sport boats

• Coastal cruising and offshore passages

• Replacements or upgrades to mechanical trim tabs

Technical Specifications

Everything Included in the Kit:

• (2) 12-gauge stainless steel edgemount trim tab planes

• (2) 12V Actuators with 6' leads and Deutsch plugs

• (1) Tactile LED Indicator Switch Kit (Keypad & Control Box)

• (2) 20' Actuator extension wiring harnesses

• (2) Upper mounting brackets with gland seals

• (2) Lower mounting brackets

• All necessary stainless steel mounting hardware

Installation Pro-Tip:

When installing edgemount tabs, ensure your measurements are precise regarding the "negative" space on your transom. Because the actuator mounts further back on the plane, the actuator mounting height is significantly lower than a standard kit. Always use the provided template to ensure your pilot holes for the mounting brackets and cable gland seals are perfectly aligned to prevent water intrusion
