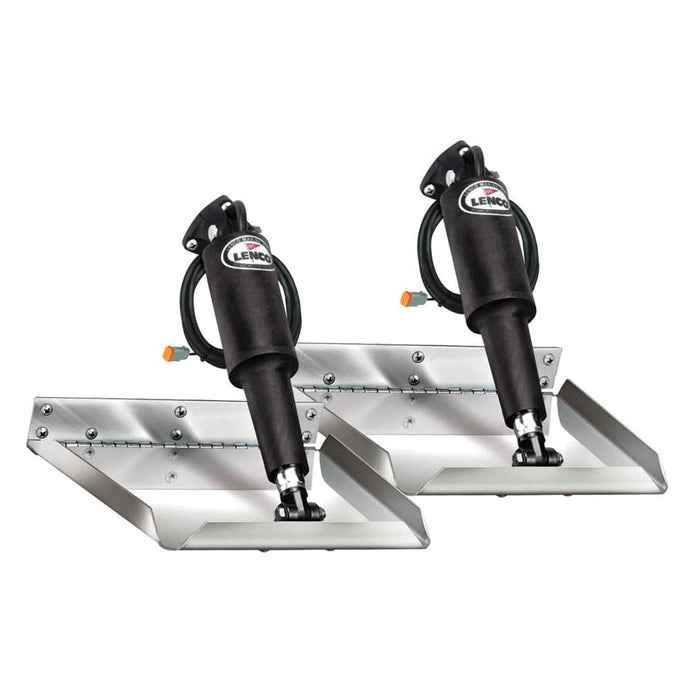

Lenco 12" x 12" Electro-Polished Edge Mount Trim Tab Kit - 15116-101

12" x 12" Electro-Polished Edge Mount Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.

Kits include:

• (2) 12-gauge stainless steel Electro-Polished blades

• (2) 15054-001 actuator with 6' leads and Deutsch connectors

• (2) 30133-103 20' actuator extension wiring harnesses

• (2) 15085-001 upper mounting brackets with gland seal

• (2) 50014-001 lower mounting brackets

• Lenco owner's/installation manual

• Stainless steel mounting hardware

Specifications:

• Boat Length:17' - 30'

• L" x W":12" x 12"

• Hinge Height:2"

• Minimun Transom Height:11"

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : Lenco Marine
Manufacturer Part No : 15116-101
UPC : 874847006804
