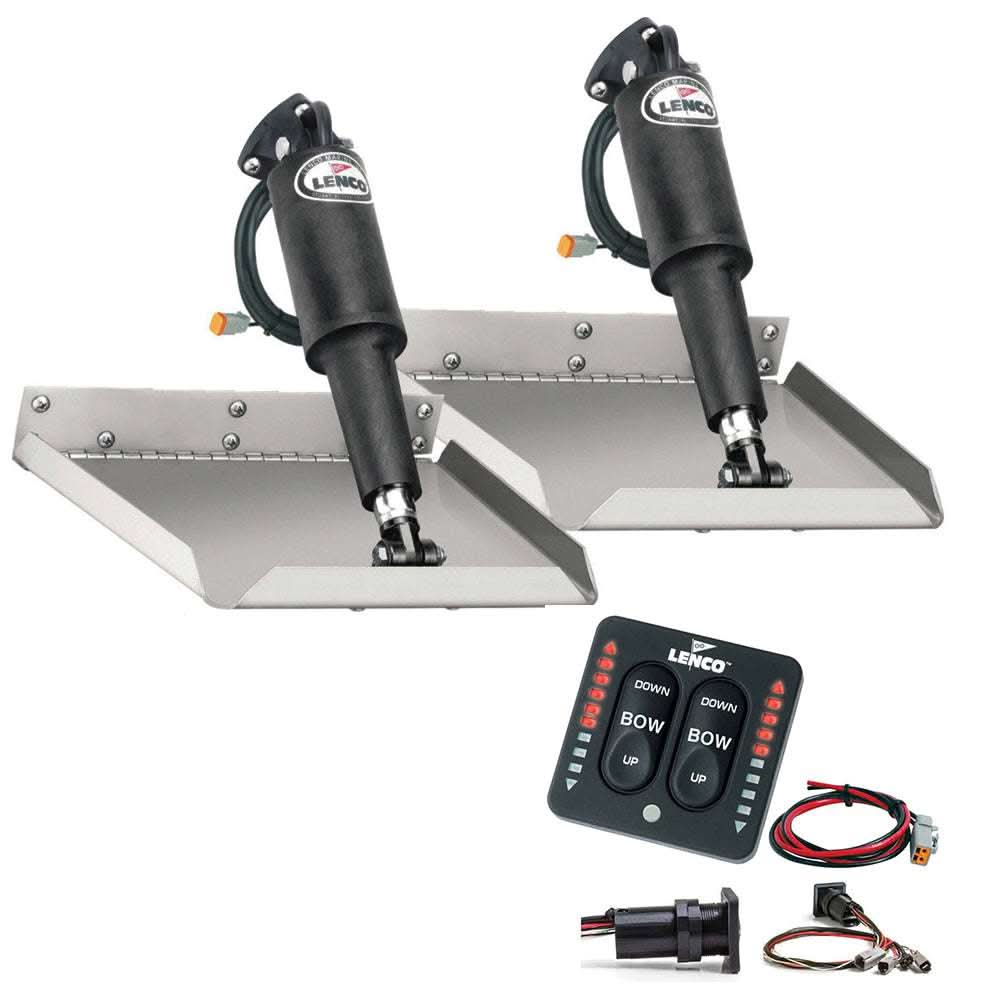

Lenco 12" x 12" Edgemount Trim Tab Kit with LED Indicator Switch Kit 12V - 15110-103
Manufacturer Part #: 15110-103
Couldn't load pickup availability
Lenco 12" x 12" Edgemount Trim Tab Kit with LED Indicator Switch Kit 12V – 15110-103
The Lenco 12" x 12" Edgemount Trim Tab Kit (15110-103) is engineered for boats that need dependable trim control but have limited transom space due to swim platforms, ladders, jack plates, or other transom-mounted accessories. Featuring 12" x 12" edgemount trim tabs, this system mounts along the outer edges of the transom, delivering effective lift and leveling without interfering with existing hardware.
Powered by Lenco’s proven all-electric trim tab technology, this 12-volt system provides fast, quiet, and reliable performance without the complexity of hydraulic pumps, hoses, or fluid. The electric actuators respond instantly to helm input, offering precise control while simplifying installation and long-term maintenance.
This kit includes an LED indicator switch, providing real-time visual feedback of trim tab position at the helm. The LED display allows for accurate adjustments to reduce bow rise during acceleration, minimize porpoising at cruising speeds, correct side-to-side list caused by uneven loads, and improve overall fuel efficiency and ride comfort.
Constructed from marine-grade, corrosion-resistant materials, the Lenco 15110-103 edgemount trim tabs are built to withstand harsh saltwater environments and demanding marine use, ensuring long-lasting durability and consistent performance season after season.
Key Benefits
-
Edgemount design ideal for boats with limited transom space
-
12" x 12" trim tabs for balanced lift and responsive control
-
LED indicator switch displays real-time trim tab position
-
Reduces bow rise for quicker planing and improved visibility
-
Corrects side-to-side list from uneven passenger or gear loads
-
Minimizes porpoising and hull instability at cruising speeds
-
Improves fuel efficiency by optimizing hull attitude
-
Low-maintenance electric system with no hydraulics
Features
-
12" x 12" Edgemount Trim Tabs for transom-edge mounting
-
12V electric actuators for fast, quiet, and dependable operation
-
LED indicator helm switch kit for confident, precise control
-
All-electric design—no pumps, hoses, or hydraulic fluid
-
Marine-grade, corrosion-resistant construction
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab systems
Specifications
-
Model Number: 15110-103
-
Tab Dimensions: 12" x 12"
-
Mounting Style: Edgemount
-
Voltage: 12V
-
Switch Type: LED Indicator Switch Kit
-
System Type: Electric Trim Tab Kit
Ideal Applications
The Lenco 12" x 12" Edgemount Trim Tab Kit with LED Indicator Switch is ideal for:
-
Boats with limited transom space
-
Center console and bay boats with transom-mounted accessories
-
Boats with swim platforms or jack plates
-
Inshore and nearshore recreational vessels
Intuitive LED Monitoring & Safety
Stay in total control with the included Lenco LED Indicator Switch Kit:
-
Visual Position Display: Two rows of bright LEDs show the exact deployment of your port and starboard tabs, allowing you to memorize and return to your boat's "sweet spot."
-
Auto-Retract Function: To prevent accidental damage during trailering or lifting, the tabs automatically retract to the "up" position whenever the ignition is turned off.
-
Simplified Wiring: The integrated control box/switch design means fewer components to mount behind the dash and a faster, cleaner installation.
Performance-Driven Construction
-
Instant Electric Response: Lenco’s 12V electric actuators provide immediate feedback. There is no hydraulic lag, no pump to prime, and no risk of oil leaks.
-
Heavy-Duty Build: The 12" x 12" blades are laser-cut from 12-gauge 304 stainless steel with a 5/8" flared trailing edge for superior strength.
-
Reliable in All Conditions: Fully submersible actuators with double O-ring seals and high-impact, UV-resistant housings ensure years of maintenance-free service in saltwater or freshwater.
In the Box: 15110-103 Complete Kit
-
(2) Edgemount Trim Tab Blades: 12" x 12" 12-gauge stainless steel.
-
(2) 101 Standard Actuators: 12V with 6' leads.
-
(1) LED Indicator Switch Kit: Includes the helm keypad and integrated control box.
-
(2) 20' Wiring Harnesses: Connecting the actuators to the helm.
-
(1) Mounting Hardware Pack: Stainless steel screws and specialized edgemount brackets.
-
(1) Installation Guide: Full step-by-step mounting and wiring instructions.
Comparison: Standard vs. Edgemount
"If your boat has a clear transom, the standard mount is the traditional choice. However, if you have a swim platform that sits just inches above the water line, the 15110-103 Edgemount Kit is mandatory. It moves the actuator mounting point down the transom, allowing you to gain all the benefits of 12" x 12" tabs without interfering with your boat's features."
Upgrade your vessel with the Lenco 12" x 12" Edgemount Trim Tab Kit (15110-103) to enjoy precise trim control, improved handling, and dependable electric performance—without sacrificing valuable transom space.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15110-103
UPC : 874847006293
Lenco 12" x 12" Edgemount Trim Tab Kit with LED Indicator Switch Kit 12V - 15110-103 is backordered and will ship as soon as it is back in stock.
