Lenco 102XD Extreme Duty Actuator - 12V - 4-1/4" Stroke - 15060-001
Manufacturer Part #: 15060-001
Couldn't load pickup availability
Lenco 102XD Extreme Duty Actuator – 12V – 4¼" Stroke – 15060-001
The Lenco 102XD Extreme Duty Actuator (15060-001) is a heavy-duty electric actuator engineered for the most demanding marine trim tab applications. Designed to deliver exceptional power, precision, and durability, this 12-volt actuator features an extended 4¼" stroke to provide significant travel capability and leverage—ideal for larger trim tab systems or vessels with higher displacement.
With rugged construction built to withstand harsh saltwater conditions and frequent use, the 102XD is the actuator of choice for boaters who need maximum force and extended range from their electric trim tab actuators. Whether you’re upgrading an existing system or installing a new heavy-duty setup, this actuator offers smooth, dependable performance without the complexity or maintenance of hydraulic components.
12-Volt Precision and Power
Operating on a standard 12V DC system, the 102XD brings professional-grade durability to the recreational and commercial market.
-
Instant Response: Lenco’s electric ball-screw technology provides immediate movement without the lag associated with hydraulic pumps.
-
Non-Creep Locking: Once the actuator is set, it holds its position perfectly. Unlike hydraulic cylinders that can "leak down" or creep under heavy load, the 102XD remains locked until you adjust it.
-
Self-Contained Design: No hydraulic lines or pumps are required, making this a cleaner, more reliable, and maintenance-free solution for your transom.
Reinforced for the Offshore Environment
-
Heavy-Duty Housing: The body is constructed from extra-thick, high-impact, UV-resistant glass-filled nylon to resist cracking and salt-spray degradation.
-
3/8" Mounting Hardware: To accommodate the higher torque and shear forces of Extreme Duty use, this model utilizes 3/8" stainless steel mounting bolts (larger than the 5/16" bolts used on standard 101/102 models).
-
Double O-Ring Protection: Features redundant seals at the shaft and housing to ensure the unit remains 100% waterproof and submersible in deep-water mounting scenarios.

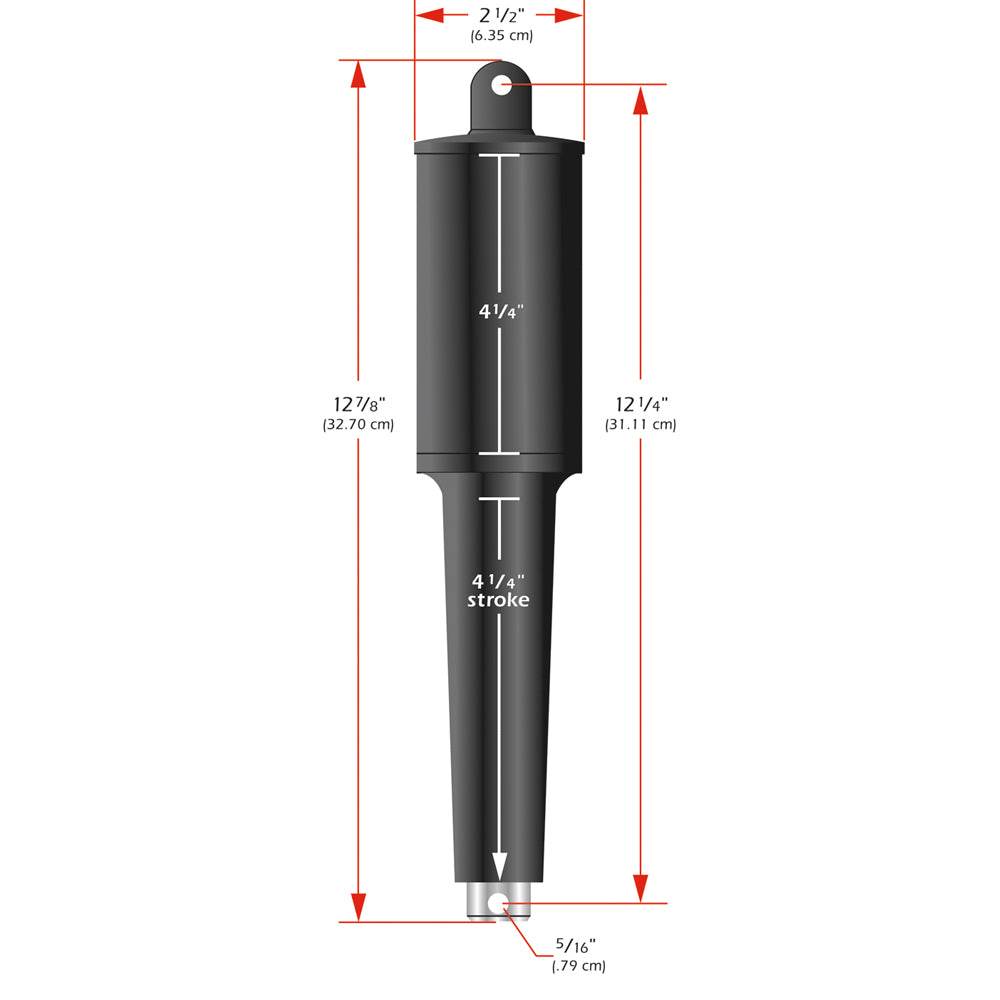

Technical Specifications
| Feature | Details |
| Model Number | 15060-001 |
| Series | 102XD (Extreme Duty) |
| Voltage | 12-Volt |
| Stroke Length | 4-1/4" |
| Mounting Hardware | 3/8" Stainless Steel |
| Overall Length (Retracted) | 13" (center-to-center) |
| Connector | 6' Lead with Deutsch Plug |
| Material | High-Impact Glass-Filled Nylon |
In the Box: 15060-001
-
(1) 102XD 12V Actuator: High-torque motor with 6-foot lead.
-
(1) Upper Mounting Bracket: Reinforced XD design.
-
(1) Lower Mounting Bracket: XD-compatible.
-
(1) XD Hardware Pack: Heavy-duty 3/8" stainless steel mounting bolts and gland seals.
Pro-Tip for Installation:
"Because the 102XD has a retracted length of 13 inches (one inch longer than the standard 101 series), ensure you have the necessary vertical transom space before installation. Additionally, because this uses 3/8" hardware, you will need to drill or enlarge your existing mounting holes if you are upgrading from a standard Lenco actuator."
🔧 Key Benefits
-
Extreme duty design for high-load, high-use applications
-
4¼" stroke length for extended movement and enhanced control
-
Instant, quiet electric operation with no hydraulics or fluid
-
Improves boat stability, handling, and planing performance
-
Built for harsh marine environments with robust corrosion resistance
⚙️ Features
-
12V DC operation—compatible with standard marine electrical systems
-
4¼" (4.25") stroke length for extended trim tab travel
-
Heavy-duty actuator construction for demanding use
-
High-impact nylon housing reinforced for strength and durability
-
316 stainless steel tubular shaft for advanced corrosion resistance
-
Sealed design with enhanced marine-grade components
-
Waterproof connectors and rugged cable for long-term reliability
-
Improved internal seals and thrust bearings for extended life
-
Designed and manufactured by Lenco Marine, a trusted leader in trim tab actuators
📊 Specifications
-
Model Number: 15060-001
-
Actuator Type: Extreme Duty Electric Actuator
-
Voltage: 12V DC
-
Stroke Length: 4¼" (108 mm)
-
Recommended Use: Heavy-duty trim tab systems
-
System Type: All-electric actuator
-
Construction: Marine-grade materials, corrosion-resistant
-
Compatibility: Works with most standard electric trim tab control systems
🚤 Ideal Applications
The Lenco 102XD Extreme Duty Actuator – 12V (15060-001) is ideal for:
-
Larger center console boats
-
Offshore fishing vessels and cruisers
-
Boats with high loads or frequent trim tab usage
-
Heavy trim tab systems requiring extended stroke and power
-
Replacement or upgrade installations on boats originally equipped with standard actuators
🛠 Why Choose Lenco
Lenco electric actuators are known for instant response, all-electric simplicity, and marine durability. Compared to hydraulic systems, Lenco’s electric actuators eliminate pumps, hoses, and fluid, reducing maintenance and enhancing reliability. Their robust construction and industry reputation make them a top choice for serious boaters who demand performance and durability.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15060-001
UPC : 874847003254
