Lenco 101 Standard Actuator – 12V | 2‑1/4" Stroke | Model 15054‑001
The Lenco 101 Standard Actuator (15054-001) is a rugged and reliable electric trim tab actuator engineered for dependable marine performance. Designed for 12-volt systems, this actuator provides smooth, responsive movement with a 2¼" (2.25") stroke—perfect for powering Lenco trim tab systems on small to mid-size boats.
Built with durable, corrosion-resistant materials, the 101 Standard Actuator delivers quiet, maintenance-free operation without the complexity or leaks associated with hydraulic systems. Its compact design makes it suitable for a wide range of trim tab installations, whether you’re upgrading an existing system or replacing worn components.
Why Choose Lenco Electric?
By utilizing an electric ball-screw design, Lenco eliminates the common failures associated with hydraulic systems:
-
Instant Response: There is no hydraulic lag. The moment you press the switch, the motor moves, giving you real-time authority over your hull's attitude.
-
Maintenance-Free: No hydraulic pumps to mount, no oil levels to check, and no hoses to bleed. The system is completely self-contained and eco-friendly.
-
Zero Creep: Once set, the internal ball-screw locks the actuator in place. Unlike hydraulic cylinders, which can "leak down" over time, Lenco actuators hold their position until you change them.
Built for the Harsh Marine Environment
-
Submersible Durability: The motor and gears are housed in high-impact, UV-resistant glass-filled nylon. Double O-ring seals on the shaft and housing ensure a 100% waterproof environment.
-
Easy Installation: Features a 6-foot lead with a factory-installed waterproof Deutsch connector. This allows for a quick "snap-together" connection to your existing Lenco wiring harness.
-
Standard Hardware: Uses 5/16" stainless steel mounting hardware, making it a direct replacement for almost any Lenco standard actuator manufactured since 1997.

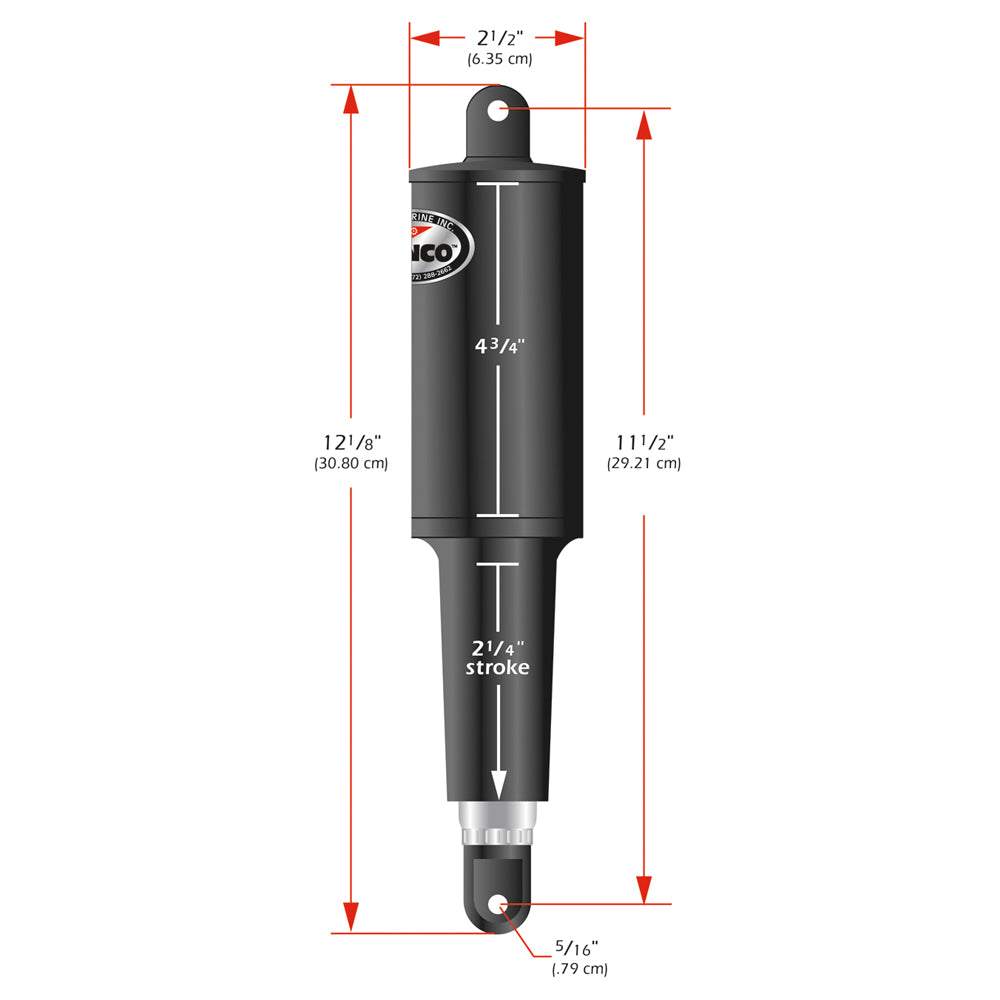

Technical Specifications
| Feature | Details |
| Model Number | 15054-001 |
| Voltage | 12-Volt |
| Stroke Length | 2-1/4" |
| Retracted Length | 11-3/8" (Center-to-Center) |
| Hardware Size | 5/16" Stainless Steel |
| Connector Type | Deutsch Plug (Waterproof) |
| Housing Material | High-Impact Glass-Filled Nylon |
In the Box: 15054-001
-
(1) 101 Standard 12V Actuator: With 6-foot lead and Deutsch plug.
-
(1) Upper Mounting Bracket: Features a specialized gland seal for the transom.
-
(1) Lower Mounting Bracket: Standard tab-mount bracket.
-
(1) Hardware Pack: Complete set of stainless steel mounting screws and bolts.
Pro-Tip for Replacement:
"If you are replacing an older Lenco actuator, check your existing wiring. If your current plug is a different style, you may need a Deutsch to AMP adapter or simply replace the extension harness. Always verify the 2-1/4" stroke length by measuring the chrome shaft on your old unit to ensure a perfect match."
🔧 Key Benefits
-
Reliable 12V operation for standard marine electrical systems
-
2¼" stroke length for effective trim tab movement
-
Improves handling, stability, and ride comfort
-
Quiet, smooth, all-electric operation with no hydraulics
-
Low maintenance design—no fluid, pumps, or hoses
-
Corrosion-resistant construction designed for harsh marine use
⚙️ Features
-
12V DC actuator engineered for marine trim tab systems
-
2¼" (2.25") stroke for precise, dependable travel
-
Heavy-duty housing built to resist corrosion and impact
-
Water-sealed electrical connectors for long-lasting reliability
-
Easy installation with standard mounting hardware
-
Works seamlessly with Lenco trim tab controls and switch kits
-
Manufactured by Lenco Marine, a leader in electric trim tab technology
📊 Specifications
-
Model Number: 15054-001
-
Type: Standard Electric Actuator
-
Voltage: 12V DC
-
Stroke Length: 2¼" (2.25")
-
Recommended For: Small to mid-size boats
-
System Type: Electric trim tab actuation
-
Construction: Marine-grade, corrosion-resistant materials
🚤 Ideal Applications
The Lenco 101 Standard Actuator (15054-001) is ideal for:
-
Center console boats
-
Bay boats and flats boats
-
Dual console and runabout vessels
-
Everyday recreational boats requiring reliable electric trim tab control
🛠 Why Choose Lenco
Lenco actuators are widely trusted for their instant electrical response, rugged marine construction, and low-maintenance design. Compared to traditional hydraulic systems, Lenco’s all-electric trim tab actuators eliminate the need for pumps, hoses, and fluid—resulting in a simpler installation, fewer failure points, and long-term reliability that boaters depend on.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Lenco Marine
Manufacturer Part No : 15054-001
UPC : 874847003186
