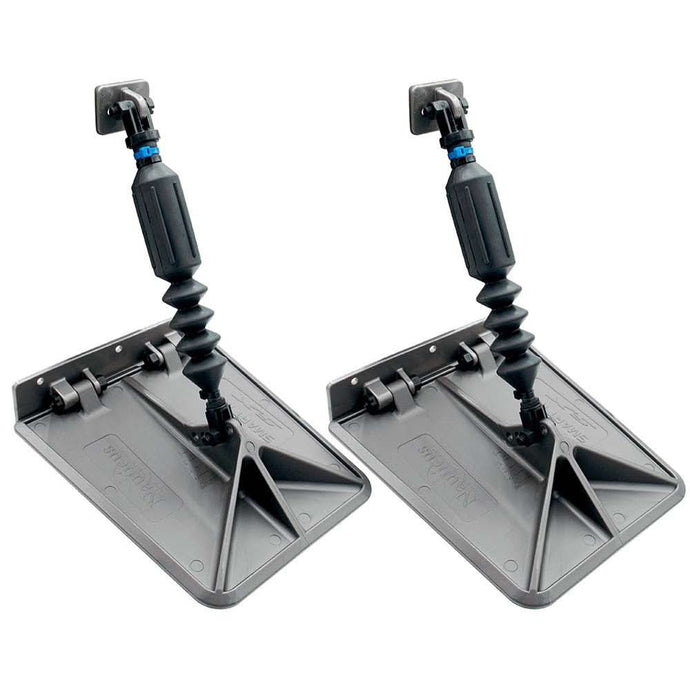

Lectrotab SX 9.5" x 10" Smart Tabs for 16–18 Foot Boats with 60lb Actuators - Gunmetal Grey - SXG9510-60
Improve your boat's handling, stability, and fuel economy with the Lectrotab SX 9.5" x 10" Smart Tabs Kit (SXG9510-60). Specially tuned for 16- to 18-foot powerboats with 60 to 150 HP engines, this fully automatic trim tab system continuously adjusts to water resistance, vessel speed, and weight distribution without the need for manual switches, wiring, or hydraulic pumps.
Formed from rust- and corrosion-free molded composite material, the SX series holds up against harsh saltwater conditions without needing sacrificial anodes. The 60 lb gas-charged actuators press down at low speeds to lower the bow up to 40% faster, reducing on-plane speed by up to 35%—making it an ideal upgrade for watersports, skiing, and tubing. Integrated tracking ribs under the tab plates provide extra control during high-speed turns.
Key Features & Highlights:
-
Fully Automatic Operation: Self-adjusts to water conditions and hull speed without helm controls, wiring, or pumps.
-
40% Less Bow Rise: Forces the bow down quickly during hole-shot, letting you get on plane at up to 35% lower speeds.
-
Enhanced Speed & Tracking: Eliminates porpoising and chine walking while built-in tracking ribs improve high-speed maneuvers.
-
Saltwater-Proof Build: Molded composite construction eliminates rust, corrosion, and electrolysis.
-
Quick & Simple Assembly: Installs in minutes using self-locking clevis pins—requires only a drill and Phillips screwdriver.
-
Fuel Efficiency Boost: Smooths out rough water rides and increases fuel economy by 11% or more.
Specifications:
-
Part Number: SXG9510-60
-
Brand: Lectrotab / Nauticus
-
UPC: 698690951469
-
Tab Dimensions: 9.5" Length x 10" Width
-
Color: Gunmetal Grey
-
Recommended Boat Size: 16' to 18' powerboats
-
Engine Horsepower Rating: 60 – 150 HP
-
Actuator Load Capacity: 60 lbs
-
Material: Heavy-Duty Molded Composite
What’s in the Box:
-
(2) 9.5" x 10" Gunmetal Grey Composite Trim Tab Plates with Tracking Ribs
-
(2) 60 lb Gas-Charged Actuators
-
(2) Transom Mounting Brackets
-
(2) Tab Mounting Brackets
-
Self-Locking Clevis Pins & Stainless Steel Fasteners
-
Installation Instructions & Template
BRAND: Lectrotab
MPN: SXG9510-60Lectrotab SX 9.5 x 10 Smart Tabs for 16-18 Foot Boats with 60lb Actuators * Gunmetal Grey - SXG9510-60 is backordered and will ship as soon as it is back in stock.
