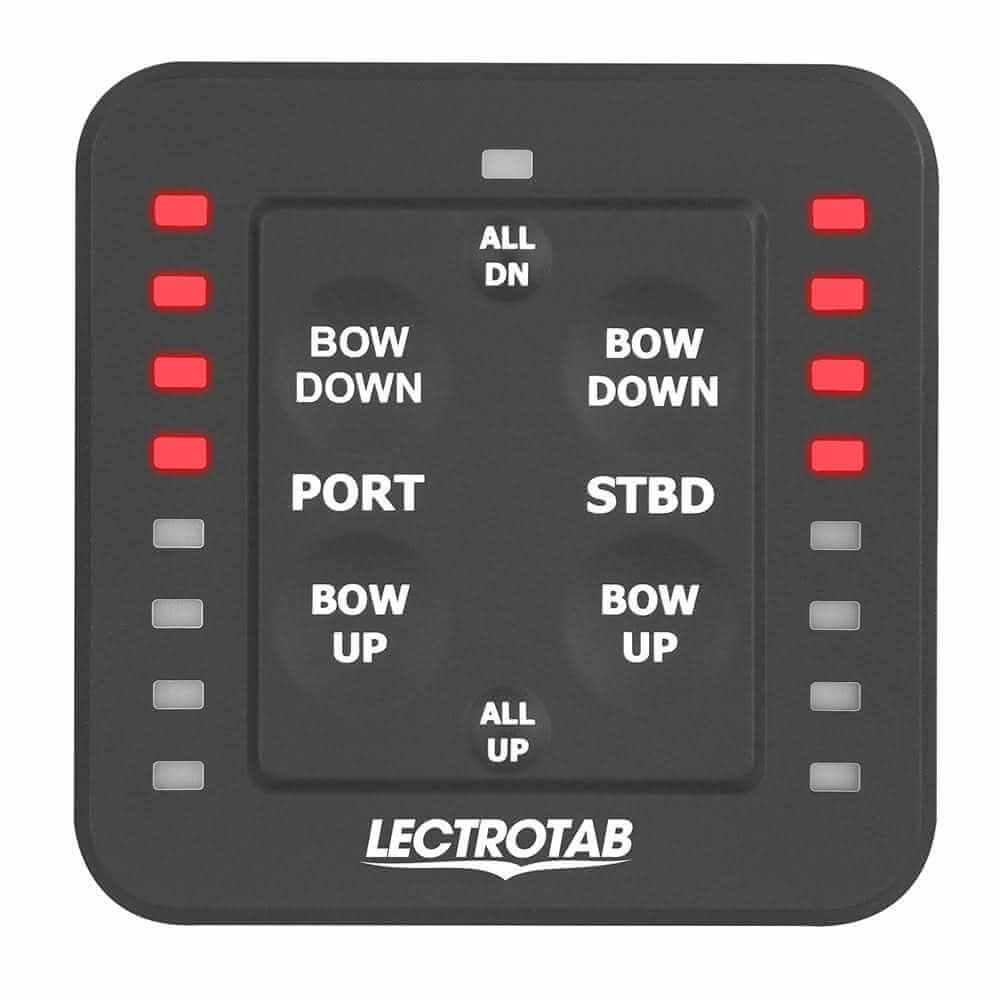

Lectrotab One-Touch LED Control - 12/24V with Auto Retract & LED Indicators - SLC-11

Lectrotab One Touch LED Control – One-Touch LED Trim Tab Control (Model SLC-11)

Optimize your boat’s trim tab control with the Lectrotab One-Touch LED Control (SLC-11) — an advanced, marine-grade controller designed for precision, convenience, and rugged reliability. This microprocessor-based control panel gives you effortless management of your vessel’s trim tabs with intuitive one-touch operation and LED position indicators, making on-water handling smoother and more enjoyable.

The SLC-11 LED control is fully sealed and waterproof, preventing moisture intrusion in harsh marine environments while resisting sun damage — a must for long-lasting performance. With automatic tab retraction, last-position memory, and compatibility with both 12 V and 24 V DC systems, this Lectrotab controller is a direct upgrade from rocker switches or older cable-style controls.

Key Features

• One-touch leveling control for easy trim tab adjustment (raise/lower)

• LED tab position indicators show real-time status

• Auto retract & last-position recall when ignition or accessory switch is turned off

• Completely sealed and waterproof, ideal for harsh marine conditions (

• 12 V or 24 V DC operation without the need for an external power module

• Direct replacement for older Oval LED (SETR-61) controls

• Automatic LED dimming/brightening based on ambient light for easy visibility

Applications

• Trim tab systems on boats and yachts

• Hydraulic or electric trim tab actuators

• Marine autopilot and leveling systems

The Lectrotab SLC-11 One-Touch LED Control enhances your boat’s handling with smarter trim tab management, easier control, and reliable LED feedback you can trust.

Technical Specifications

• Voltage: 12/24V DC (Automatically detects voltage)

• Dimensions: 3" W x 3" H (77mm x 77mm)

  Mounting Hole: Fits a 2.25" to 2.5" (57mm to 64mm) diameter cutout.

• Compatibility: Works with single or dual actuator-per-tab systems.

• Warranty: 2-Year Warranty

Installation Pro-Tip:

To enable the Auto Retract feature, the AUX terminal must be connected to your boat's ignition run position or an accessory switch. This ensures that the tabs retract whenever the engine is shut off, protecting the actuators from marine growth and damage during trailering or lifting.

Manufacturer : Lectrotab
Manufacturer Part No : SLC-11
