What makes the Johnson Pump 5.0GPM Flow Master suitable for RV and boat water systems?

The Johnson Pump 5.0GPM Flow Master is designed with a variable flow feature and a five-chamber positive displacement diaphragm, making it ideal for pressurizing water in closed systems like RVs and boats. Its digital controller maintains smooth flow regardless of demand, ensuring reliable water pressure in your system.

How does the digital controller in the Johnson Pump improve its operation?

The digital controller in the Johnson Pump automatically turns the pump on and off when a tap is opened or closed, providing hands-free operation. It also allows for precise flow adjustments, ensuring a smooth water flow and reducing noise and energy consumption.

Can the Johnson Pump be installed without an accumulator tank, and is it prone to damage if it runs dry?

Yes, the Johnson Pump features a unique variable flow design that allows it to be mounted without an accumulator tank while maintaining even flow. It is also designed to be dry running without damage, making it a durable choice for various water pressurization needs.

How does the variable flow feature of the Johnson Pump 5.0GPM Flow Master improve water pressure in a boat or RV system?

The variable flow feature allows the Johnson Pump to adjust its water output smoothly based on demand, maintaining consistent pressure without needing an accumulator tank. This ensures a steady stream of water regardless of how many taps are in use, improving the overall system performance.

What are the advantages of the digital controller on the Johnson Pump 5.0GPM Flow Master?

The digital controller automatically turns the Johnson Pump on and off when a tap is opened or closed, providing convenient and efficient operation. It also helps prevent dry running and minimizes power consumption for reliable performance.

Popular right now
Lots of people have looked at this recently

Johnson Pump 5.0GPM Flow Master Variable Flow Pump - 24V - 10-13329-104

Name: Johnson Pump 5.0GPM Flow Master Variable Flow Pump - 24V - 10-13329-104
Brand: Johnson Pump
SKU: 43807
Price: 265.99 USD
Availability: InStock

$265.99 ~~$510.17~~

SKU: 43807

Manufacturer Part #: 10-13329-104

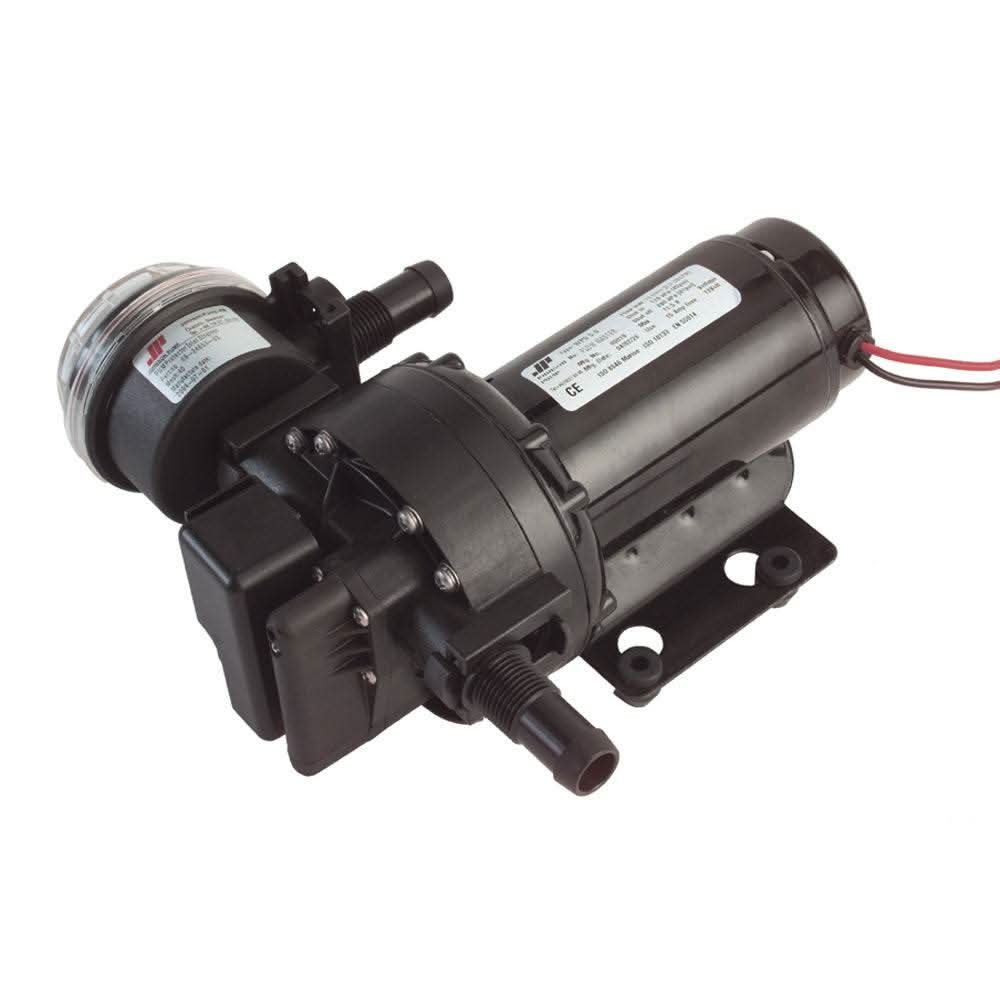

Johnson Pump 5.0 GPM Flow Master Variable Flow Pump – 24V – 10-13329-104

The Johnson Pump Flow Master Variable Flow Pump (10-13329-104) is a high-performance 24-volt freshwater pressure pump designed to deliver smooth, adjustable water flow for marine and RV onboard water systems. With a maximum output of 5.0 gallons per minute, this pump provides consistent pressure for multiple fixtures while minimizing noise, pulsation, and power consumption.

Equipped with variable-speed motor technology, the Flow Master automatically adjusts pump speed based on demand, maintaining steady water pressure without the need for an accumulator tank. This results in quieter operation, extended pump life, and reduced cycling compared to traditional on/off diaphragm pumps.

Built for durability in harsh marine environments, the Flow Master features corrosion-resistant components, an integrated thermal overload protection system, and dry-run capability to protect against accidental water loss. Its compact design allows for easy installation in tight spaces, making it an ideal upgrade or OEM replacement for premium freshwater systems.

Key Performance Features

Variable Speed Control: The pump features an integrated digital controller that automatically adjusts the motor's RPM. As you open more faucets, the motor speeds up to maintain a constant water pressure.
No Accumulator Needed: Because the pump modulates its speed to prevent "cycling" (rapidly turning on and off), you can save space and complexity by eliminating the accumulator tank from your plumbing system.
Quiet and Smooth Operation: The variable speed technology significantly reduces water hammer and pump noise, providing a whisper-quiet performance even at low flow rates.
Self-Priming Power: This heavy-duty 5-chamber design is capable of self-priming up to 8 feet, making it ideal for large yachts, RVs, and off-grid cabins.
Safety Protections: It includes built-in protection against dry running, over-voltage, and low-voltage, ensuring a long service life for the motor.

Technical Specifications

Flow Rate: 5.0 GPM (19 LPM)
Voltage: 24V DC
Pressure Setting: 50 PSI (3.5 Bar) cut-off
Fuse Size: 8 Amp
Port Size: 1/2" NPT or 1/2" Hose Barb (Quick-connect fittings included)
Motor: Environmentally protected (IP67) with a double ball bearing design.

In the Box

The 10-13329-104 is a complete, ready-to-install unit:

Flow Master Pump: The 5-chamber pump body with integrated digital control electronics.
Inlet Strainer: A 40-mesh PUMProtector strainer to prevent debris from damaging the internal diaphragms.
Quick-Connect Fittings: Typically includes multiple port options (threaded and barbed) for flexible installation.
Installation Manual: Detailed wiring and plumbing instructions.

Benefits

Provides smooth, consistent water pressure
Reduces noise and vibration
Extends pump and system lifespan
Improves efficiency over standard pressure pumps

Applications

Marine freshwater systems
Yachts and commercial vessels
RV freshwater systems
Multi-fixture onboard plumbing systems

Why Choose the Johnson Pump Flow Master 5.0 GPM Pump

The Johnson Pump Flow Master 24V 5.0 GPM Pump is ideal for vessels requiring quiet operation, high flow, and precise pressure control. Its variable-speed technology delivers a premium freshwater experience while reducing system wear and power draw.

Summary for the User

The Flow Master 5.0 is the gold standard for high-end marine and RV water systems. It is best suited for vessels with multiple outlets (shower, galley, and washdown) that require a steady stream of water regardless of how many taps are open simultaneously.

Installation Tip: To ensure the variable speed technology works perfectly, use high-quality, reinforced water hoses that can handle the 50 PSI pressure without expanding, which can sometimes "confuse" the digital sensors.

Manufacturer : Johnson Pump
Manufacturer Part No : 10-13329-104
UPC : 729321332941
