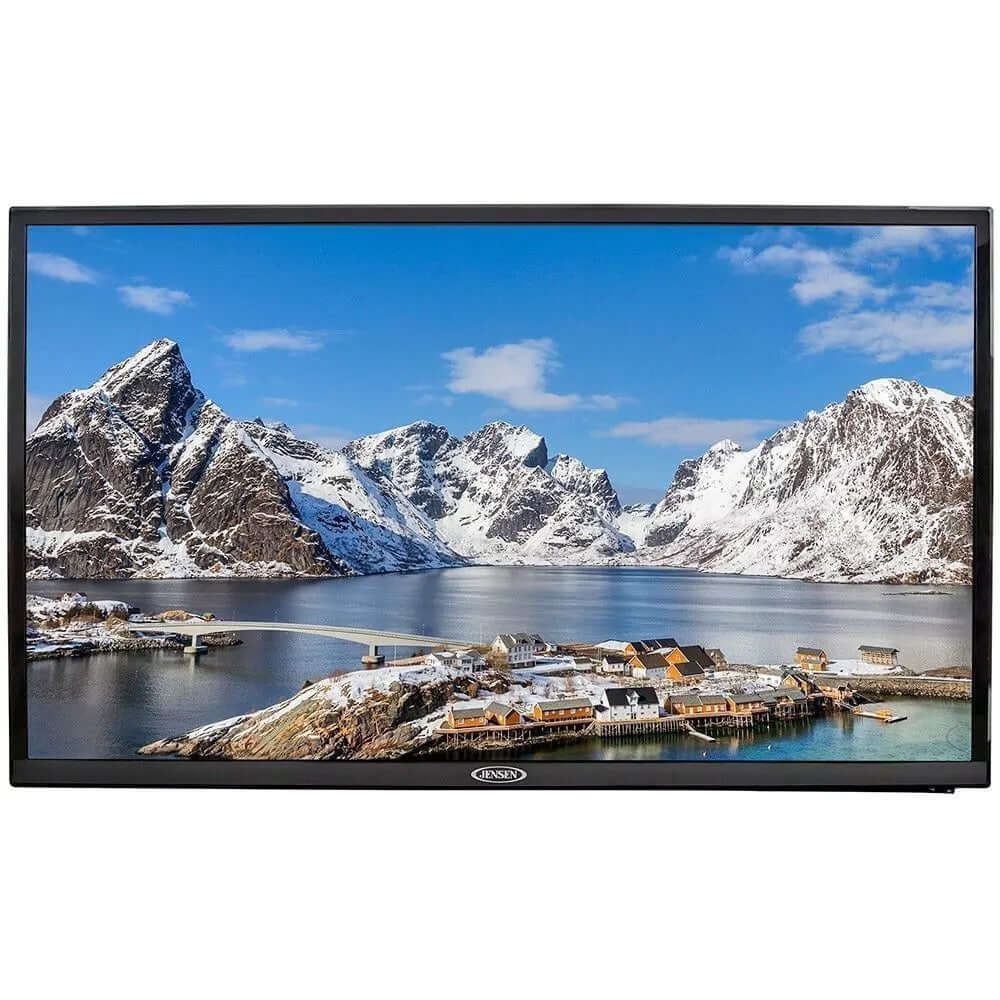

JENSEN 32" 12V Smart TV - JTV3225DCS

JENSEN 32" 12V Smart TV

32 12V Smart TV

JENSEN has designed this lightweight, energy-efficient 12-volt DC television perfect for cabin entertainment. All JENSEN TVs are built for mobile use with conformal-coated circuit boards and reinforced mounting points.

Features:

• DC power


• White LED illumination


• High-performance LCD panel


• Integrated HDTV (ATSC) tuner


• 1366 x 768 resolution


• 16.7 million colors


• ARC/CEC functions through HDMI1


• VESA 100mm x 100mm mounting pattern


• IR remote control included

Inputs/Outputs:

• Composite video input (NTSC/PAL compatible)


• RF input


• USB inputs x 2


• HDMI inputs x 2


• RJ45 LAN input


• Optical output


• Headphone output (3.5 mm)

Specifications:

• Power System: 12V DC


• Power Consumption: 230mA stand by / 5.05A max


• Operating Temperature Range: -4 degrees F to 149 degrees F / -20 degrees C to 65 degrees C


• Storage Temperature Range: -22 degrees F to 158 degrees F / -30 degrees C to 70 degrees C


• Maximum Relative Humidity: 85%


• Overall Dimensions (W x H x D): 28.8 x 17.1 x 3.2 inch (without stand)


• Product Weight (unpackaged): 7.7 lbs


• Regulatory Certification(s): FCC, ETL, FCC ID

Performance Specifications:

• Video / Display System: NTSC/ATSC/PAL


• Video Input Signal (Composite): 1Vp-p @ 75 ohms


• Audio Output: 2 x 10W @ 4 Ohm

LCD Specifications:

• Diagonal Size: 31.5 in.


• Resolution: 1366 x 768


• Brightness: 200 nit


• Contrast Ratio: 3000: 1


• Display Format: 16:9


• Response Time: 8.5 ms

View Angles:

• Top: 89 degrees


• Bottom: 89 degrees


• Left: 89 degrees


• Right: 89 degrees

BRAND: JENSEN

Manufacturer Part Number: JTV3225DCS
