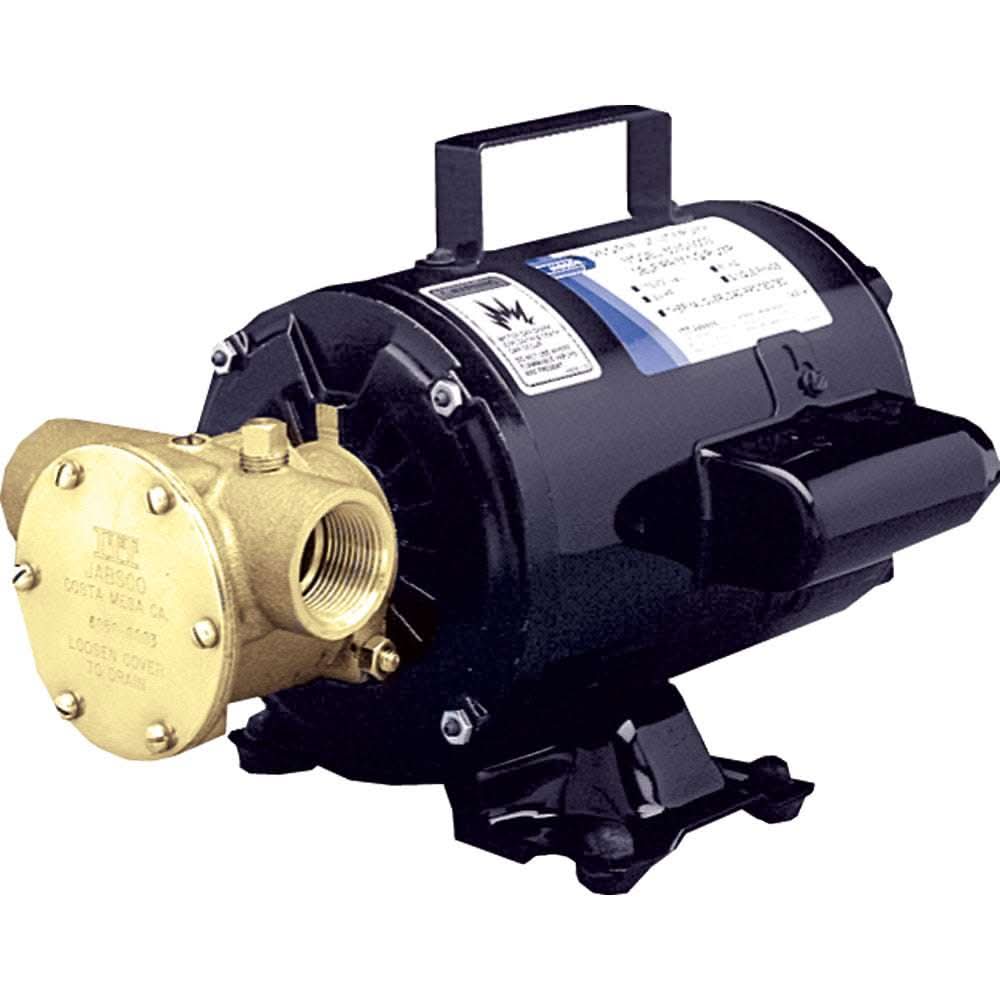

Jabsco Utility Pump with Open Drip Proof Motor - 115V - 6050-0003
Manufacturer Part #: 6050-0003
Couldn't load pickup availability
Jabsco Utility Pump with Open Drip Proof Motor – 115V – 6050-0003
The Jabsco 6050-0003 Utility Pump is a dependable, high-quality solution for general-purpose water transfer in marine, industrial, and commercial applications. Designed for continuous duty operation, this pump features a 115V AC open drip proof (ODP) motor, making it ideal for use in dry, well-ventilated locations where reliable performance and efficient cooling are required.
Engineered with Jabsco’s proven pump technology, this utility pump delivers consistent flow for a wide range of onboard and shoreside tasks, including washdown systems, water circulation, tank transfer, and equipment cooling. The rugged construction ensures long service life, while the open motor design allows heat to dissipate efficiently during extended operation.
Commonly used in engine rooms, mechanical spaces, and utility areas, the Jabsco utility pump is trusted for its reliability, straightforward installation, and low maintenance requirements. Its versatile design makes it a practical choice for boat owners, marinas, and maintenance professionals who need dependable AC-powered pumping capability.
Key Features
-
Self-Priming Capability: Can prime from dry up to 4 feet and from wet up to 10 feet.
-
Durable Construction: Features a high-quality bronze pump head for superior corrosion resistance and longevity.
-
Open Drip Proof (ODP) Motor: Designed for use in clean, dry environments with adequate ventilation.
-
Flexible Impeller Design: Uses a Neoprene impeller that can handle small solids and debris without clogging.
-
Thermal Overload Protection: The motor is equipped with built-in thermal protection to prevent overheating during continuous operation.
-
Versatile Porting: Equipped with 3/4" NPT internal ports and 1" external hose barb connections for flexible plumbing options.
Performance & Capability
-
High-Volume Flow: Delivers up to 23 GPM (Gallons Per Minute) at 10 feet of total head, making it ideal for rapid water transfer or dewatering.
-
Reliable Self-Priming: Capable of a 10-foot dry suction lift and can maintain a prime of up to 22 feet once wetted.
-
Debris Tolerance: The flexible nitrile impeller design allows the pump to pass small solids and abrasives with minimal wear, unlike standard centrifugal pumps.
-
Continuous Duty: Powered by a 3/4 HP motor with thermal overload protection, it is rated for continuous operation as long as discharge pressure stays below 20 psi.
Durable Construction
-
Corrosion Resistance: Features a solid bronze pump head and a 316 stainless steel impeller sleeve over the motor shaft for long-term durability in harsh environments.
-
Serviceability: Designed with a replaceable wearplate and a common lip-type shaft seal, making it easy to maintain over years of service.
-
Portable Design: Includes a convenient carrying handle and an 8-foot power cord with a grounded plug for easy mobility between jobsites.
Technical Specifications
-
Voltage: 115V AC (Can be converted to 230V)
-
Motor Type: Open Drip Proof (ODP) Capacitor Type
-
Ports: 1" NPT Internal Thread
-
Impeller Material: Nitrile (Oil-resistant)
-
Max Temperature: 50°F to 180°F (10°C to 83°C)
In the Box
-
(1) Jabsco Utility Pump with 115V ODP Motor
-
(1) Pre-installed Neoprene Impeller
-
(1) Instruction and Maintenance Manual
Note: This pump should not be run dry for more than 30 seconds as it will damage the impeller. It is not designed for pumping flammable liquids or gasoline.
Summary for the User
The Jabsco Utility Pump with Open Drip Proof Motor - 115V - 6050-0003 is a professional-grade "workhorse" for tasks ranging from draining flooded basements and sump pumping to bait tank circulation and industrial filling. It is a manual pump that requires liquid for lubrication; you should never run it dry for more than 30 seconds to avoid damaging the impeller.
Pro Tip: For unattended operation, this pump is designed to work with the Jabsco 4732-0000 Vacuum Switch, which will automatically shut the pump off if the liquid source runs dry.
Would you like me to find the 4732-0000 Vacuum Switch for you, or perhaps a Nitrile Service Kit to keep as a spare for future maintenance?
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 6050-0003
UPC : 671880004374
Jabsco Utility Pump with Open Drip Proof Motor - 115V - 6050-0003 is backordered and will ship as soon as it is back in stock.
