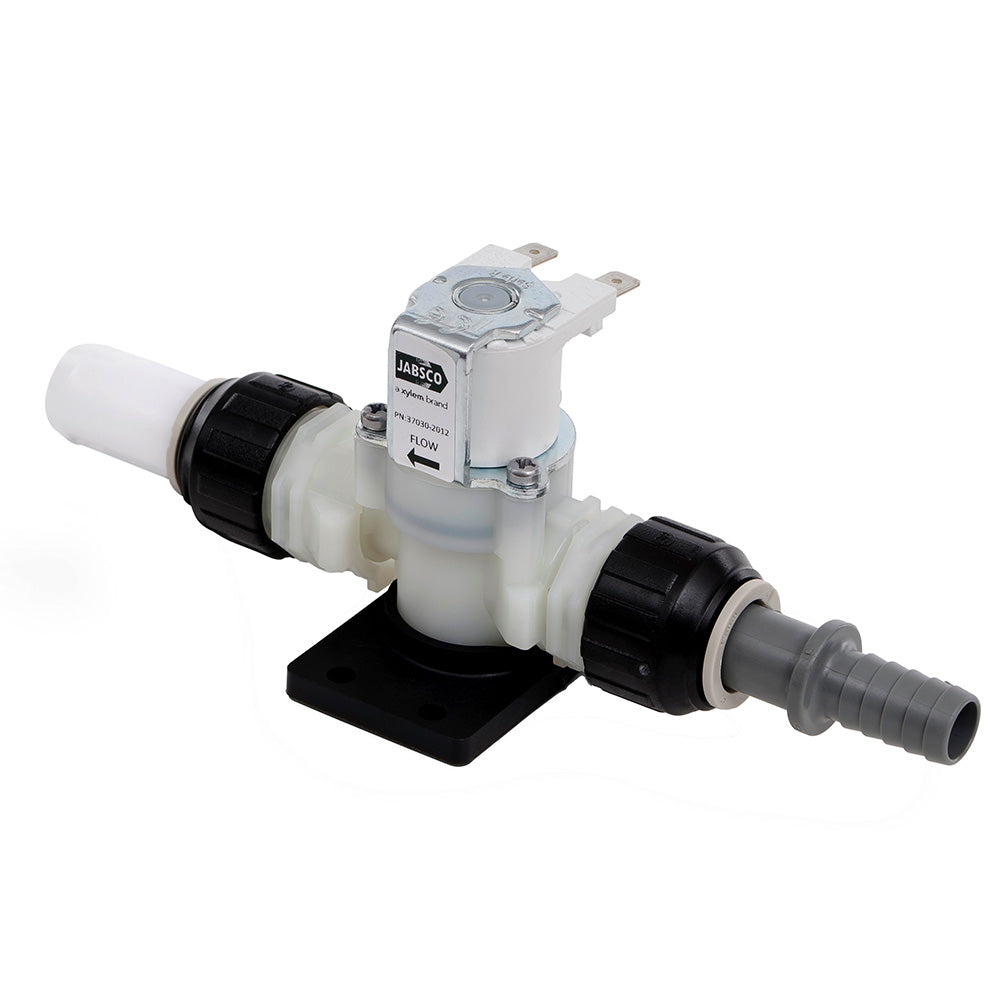

Jabsco Solenoid/Anti-Syphon Valve - 12V - 37038-2012

Jabsco Solenoid/Anti-Syphon Valve - 12V - 37038-2012

Protect your vessel's freshwater system while ensuring dependable toilet operation with the Jabsco Solenoid/Anti-Syphon Valve - 12V (37038-2012). Designed specifically for Jabsco Quiet Flush freshwater marine toilets, this inline, normally closed solenoid valve helps prevent backflow and siphoning, protecting your potable water supply from contamination while delivering reliable water flow during each flush.

Built with marine-grade components, the valve features an integrated double check valve and internal inlet filter to improve system reliability and reduce maintenance. Its versatile mounting design allows installation above or below the toilet in virtually any orientation, making it an ideal replacement or upgrade for compatible Jabsco sanitation systems.

Features

• Genuine Jabsco 37038-2012 replacement solenoid/anti-syphon valve
• 12V DC inline, normally closed solenoid valve
• Prevents siphoning and helps protect potable water from contamination
• Integrated double check valve for added water safety
• Internal inlet filter helps reduce debris entering the system
• Mounts in any orientation for flexible installation
• Designed for freshwater marine toilet systems
• Includes mounting bracket and connection fittings

Specifications

• Voltage: 12V DC
• Valve Type: Normally closed inline solenoid valve
• Inlet Connection: 1/2" (15mm) JG Speedfit to 1/2" (15mm) hose barb
• Outlet Connection: 1/2" (15mm) JG Speedfit to 3/4" (19mm) hose barb
• Mounting: Any orientation (above or below toilet)
• Manufacturer Part Number: 37038-2012

Compatible With

• Jabsco Quiet Flush 37045 Series
• Jabsco Quiet Flush 37055 Series
• Jabsco Quiet Flush 37075 Series
• Select Jabsco 58XX0 toilet models

Ideal For

• Replacing worn or failed Quiet Flush solenoid valves
• Maintaining anti-siphon protection in marine freshwater toilet systems
• Preventing backflow and safeguarding onboard potable water supplies

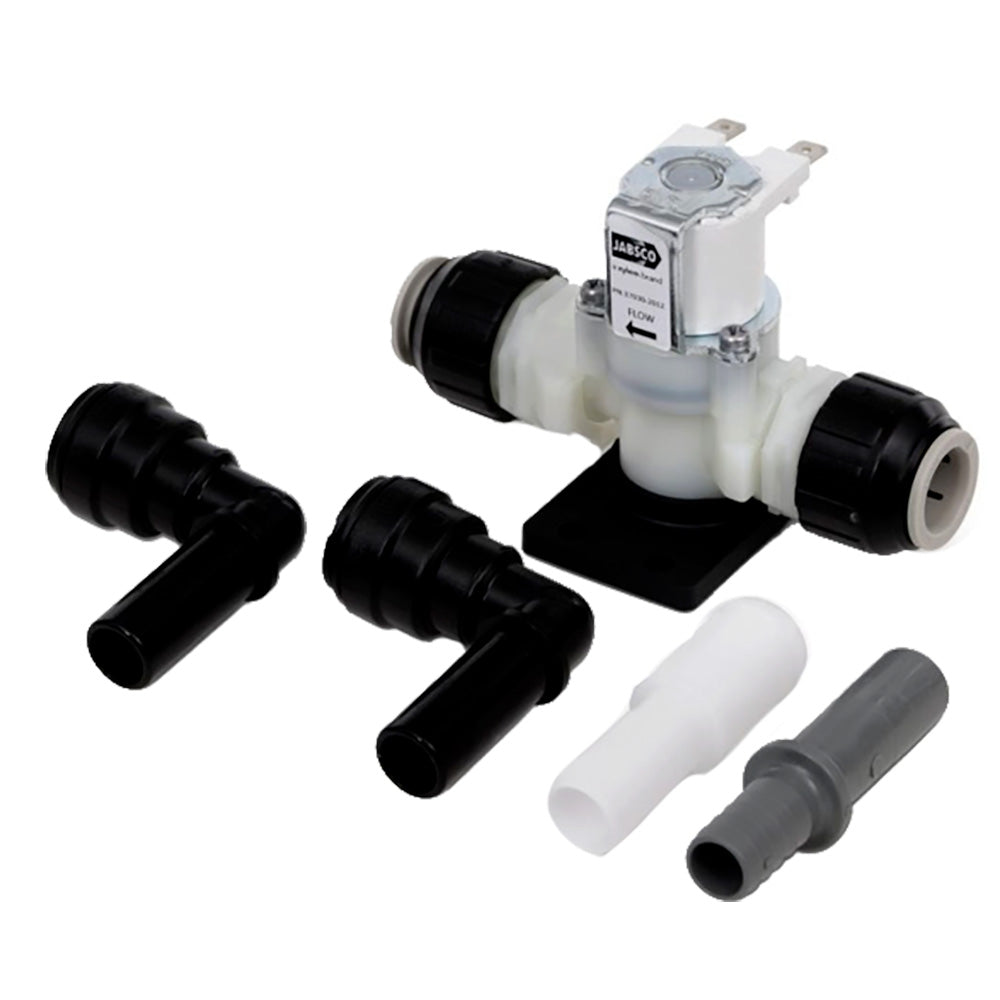

In the Box

• (1) Jabsco 12V Solenoid / Anti-Syphon Valve assembly

• Installation hardware/gaskets

• Instruction manual
