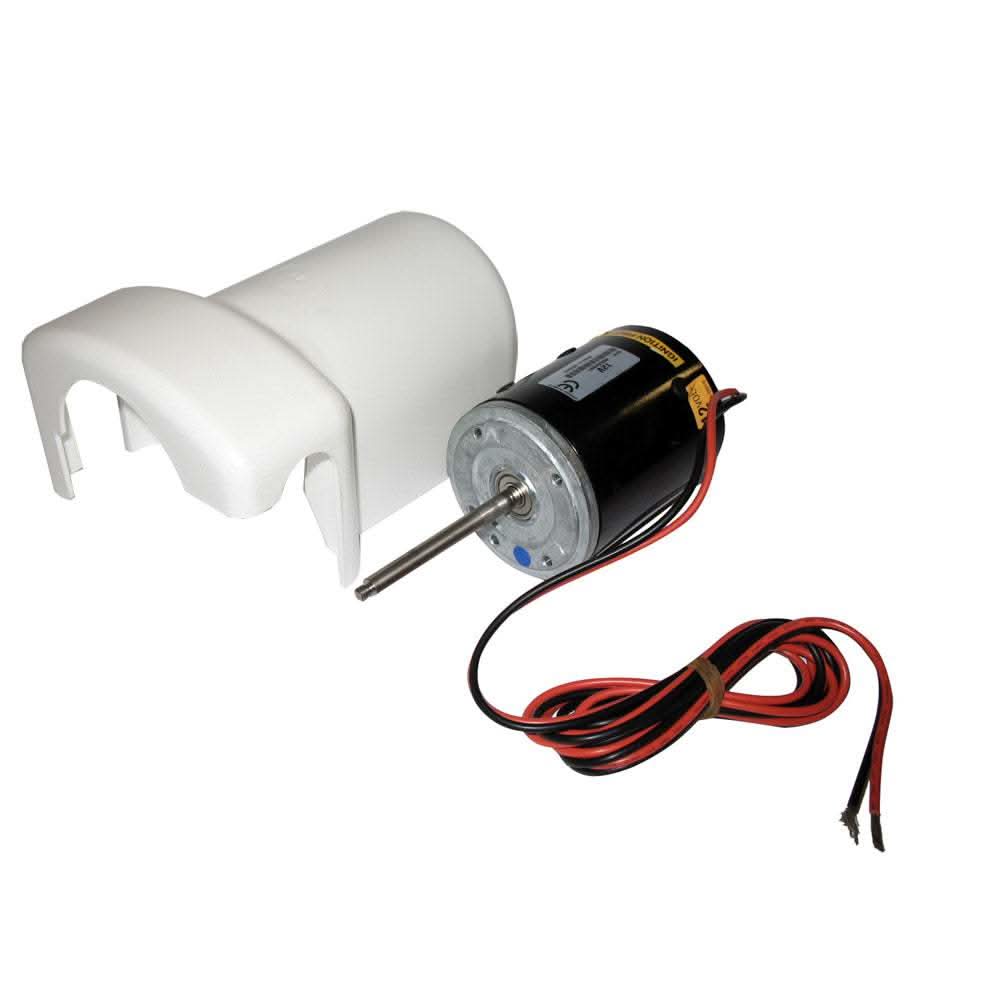

Jabsco Replacement Motor for 37010 Series Toilets - 12V - 37064-0000
Manufacturer Part #: 37064-0000
Couldn't load pickup availability
Jabsco Replacement Motor for 37010 Series Toilets – 12V – 37064-0000
The Jabsco 37064-0000 Replacement Motor is a genuine OEM 12-volt DC motor engineered to restore full flushing and pumping performance to Jabsco 37010 Series marine toilets. Designed as a direct-fit replacement, this motor ensures reliable operation of your onboard sanitation system while extending the life of your existing toilet assembly.
Built to meet Jabsco’s strict marine standards, the 37064-0000 motor delivers dependable torque, smooth operation, and long service life in harsh marine environments where moisture, vibration, and continuous use are common.
Purpose-Built for Jabsco 37010 Series Toilets
This replacement motor is specifically designed to integrate seamlessly with Jabsco 37010 Series electric toilets, ensuring correct rotation, proper speed, and consistent power output for effective waste evacuation and flushing cycles. Using a genuine Jabsco motor eliminates compatibility issues commonly associated with aftermarket alternatives.
Reliable 12V DC Performance
Operating on 12-volt DC power, the motor is fully compatible with standard marine electrical systems. It delivers the consistent torque required to drive the toilet’s macerator and pump assembly, helping maintain reliable flushing even under frequent or heavy use.
Marine-Grade Construction for Harsh Environments
Manufactured with corrosion-resistant materials, sealed internal components, and a rugged housing, this motor is built to withstand:
-
Humid bilge environments
-
Saltwater exposure
-
Continuous vibration
-
Repeated start-stop cycles
These design elements help reduce premature failure and provide dependable performance over time.
Direct-Fit, Easy Replacement
The 37064-0000 is engineered as a drop-in replacement, allowing for straightforward installation with minimal downtime. When paired with proper maintenance, replacing the motor can significantly improve flush performance without the cost of replacing the entire toilet unit.
In the Box: 37064-0000
-
(1) 12V DC Motor: High-torque, permanent magnet motor.
-
(1) Macerator Chopper Stem: Pre-installed on the motor shaft.
-
(1) Centrifugal Impeller: Attached for waste discharge.
-
(1) Stainless Steel Base Plate: Already assembled with the motor.
-
(1) Slinger/Seal Assembly: To prevent water from entering the motor.
-
(1) Set of Gaskets & O-Rings: For a leak-free seal to the toilet base.
-
(1) Hardware Pack: Four stainless steel mounting screws.
Key Features & Benefits
1. Restoration of "Flushing Power"
Over years of use, electric toilet motors can become sluggish or loud due to corrosion or hair wrapping around the shaft. This assembly replaces the entire drive system, returning the toilet to its original factory flow rate and maceration capability.
2. Integrated Macerator
The unit includes the stainless steel "chopper" blade. This blade is critical for breaking down waste and toilet tissue so it can pass through the discharge plumbing without clogging the joker valve or holding tank fittings.
3. Built for the Marine Environment
-
Corrosion Resistance: Features a powder-coated motor shell and stainless steel shaft.
-
Ignition Protected: Fully compliant with USCG 183.410 and ISO 8846, making it safe for installation in compartments where fuel vapors might exist.
Technical Specifications
| Feature | Details |
| Model Number | 37064-0000 |
| Voltage | 12V DC |
| Compatibility | All Jabsco 37010-Series Electric Toilets |
| Amp Draw | 16 Amps (Nominal) |
| Fuse Size | 25 Amp |
| Weight | 5.5 lbs (2.5 kg) |
| Material | Stainless Steel / Bronze / Powder-Coated Steel |
Pro-Tip for Installation:
"Before mounting the new motor, thoroughly clean the inside of the toilet base where the macerator sits. Any leftover scale or debris can prevent the new O-ring from sealing properly, leading to a slow leak. Also, this is the perfect time to replace your Joker Valve (Jabsco 37010-0000); if the old valve is worn out, the new motor might struggle with back-pressure, shortening its lifespan."
Ideal Applications
-
Replacement motor for worn or failed toilet motors
-
Preventative maintenance on Jabsco electric heads
-
Recreational boats and yachts
-
Commercial vessels with Jabsco sanitation systems
-
Marine service and repair installations
Why Choose a Genuine Jabsco Replacement Motor
Using a genuine Jabsco replacement motor ensures factory-correct fit, performance, and durability. The 37064-0000 motor helps protect your sanitation system from strain, reduces the risk of system failure, and maintains the reliability boaters expect from Jabsco products.
Restore confidence in your onboard sanitation system with the Jabsco Replacement Motor for 37010 Series Toilets – 12V – 37064-0000, a dependable OEM solution designed for long-term marine performance.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 37064-0000
UPC : 671880032902
