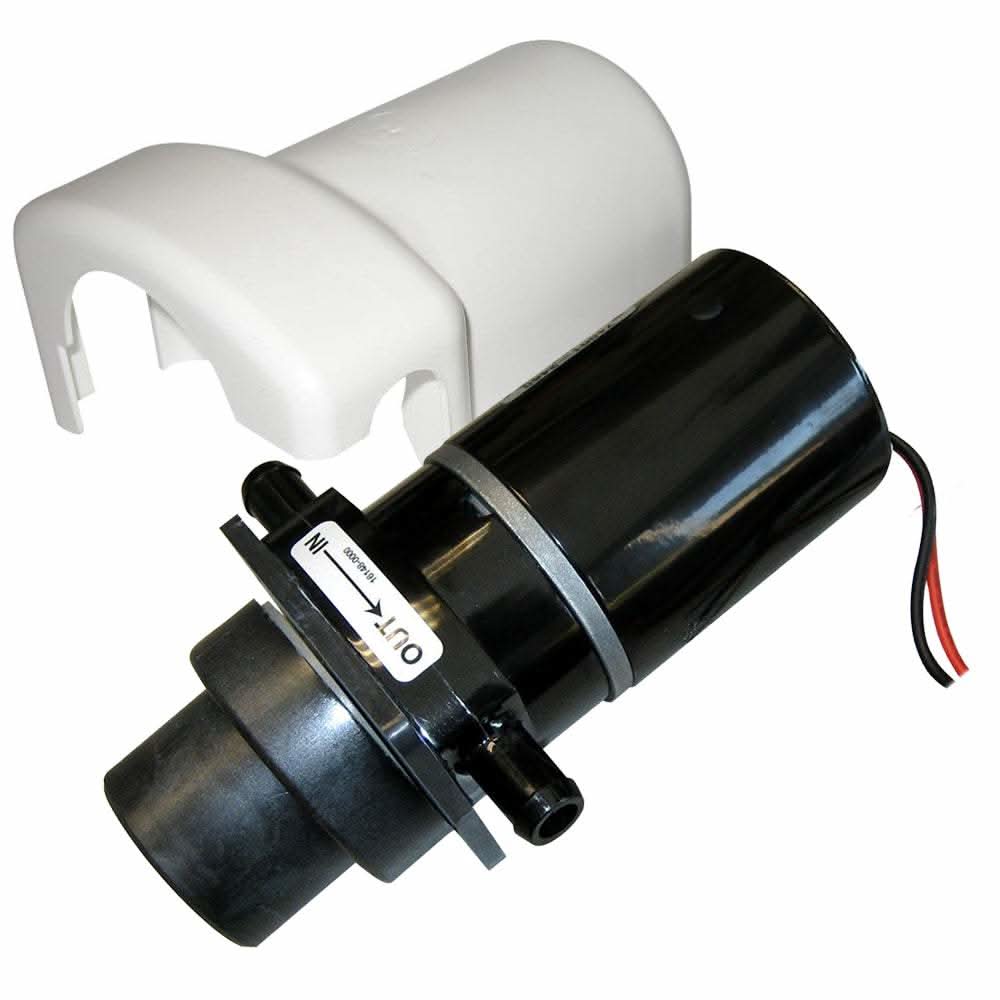

Jabsco Motor/Pump Assembly for 37010 Series Electric Toilets - 24V - 37041-0011

Jabsco 37041-0011 Motor & Pump Assembly (24V) - 37041-0011

Direct Replacement for Jabsco 37010-Series Electric Toilets

Restore the power and efficiency of your marine sanitation system with the Jabsco 37041-0011 Motor/Pump Assembly. This 24-volt genuine replacement part is specifically engineered for the Jabsco 37010-Series electric toilets, combining the rinse water intake pump and the waste macerator discharge pump into one compact, high-performance unit.

By replacing the entire assembly rather than individual components, you ensure a factory-tight seal, optimal motor timing, and a complete refresh of your toilet's mechanical heart.

Core Functions

• Dual-Action Pumping: This unit performs two critical tasks simultaneously. The flexible impeller section draws in flush water to rinse the bowl, while the high-speed macerator blade grinds waste and pumps it out to the holding tank or overboard.

• Integrated Macerator: Features a heavy-duty stainless steel chopper blade that reduces waste to a fine slurry, preventing clogs in your discharge plumbing.

Key Features & Benefits

• OEM Compatibility: A perfect fit for all Jabsco 37010-Series electric marine toilets (both compact and household bowl sizes).

• High-Torque 24V Motor: Designed for the demanding marine environment, this motor provides the necessary torque to handle waste processing without overheating.

• Corrosion Resistant: Built with a stainless steel shaft and marine-grade materials to withstand constant exposure to water and sanitation chemicals.

• Easy Installation: The assembly comes pre-configured for a "drop-in" replacement, minimizing the time spent on messy maintenance.

Designed for 24V Jabsco Electric Toilets

Engineered specifically for 24V DC systems, this motor/pump assembly delivers the correct power, speed, and torque required for proper waste maceration and evacuation in compatible Jabsco 37010 Series toilets.

Complete Motor & Pump Replacement Assembly

This unit includes both the electric motor and pump, eliminating the need to replace individual components. It provides a direct-fit solution that simplifies repairs and reduces downtime when servicing marine toilets.

Reliable Waste Transfer Performance

The pump is designed to efficiently move waste and flush water through the sanitation system, ensuring smooth operation, consistent flushing, and reduced risk of clogs or incomplete evacuation.

Marine-Grade Construction

Built for the harsh marine environment, the 37041-0011 features:

• Corrosion-resistant components

• Sealed motor design for moisture protection

• Durable construction to withstand vibration and continuous marine use

This ensures long service life in both recreational and commercial vessels.

Easy Installation & Serviceability

As a genuine Jabsco replacement part, this motor/pump assembly installs directly into compatible toilets without modification. Using OEM components helps maintain factory performance, reliability, and warranty integrity.

Technical Specifications

Installation Pro-Tips

1. Check Your Voltage: This is the 24-volt version. Ensure your vessel’s electrical system matches this voltage to avoid damaging the motor or under-performing.

2. Seal Integrity: Always use the new O-rings and gaskets provided in the assembly to ensure a leak-proof connection between the pump and the china bowl.

3. Winterization: Like all marine pumps, ensure this unit is drained or treated with non-toxic antifreeze during the off-season to prevent the housing from cracking due to ice expansion.

Ideal Applications

• Repair or refurbishment of Jabsco 37010 Series toilets

• Commercial vessels with 24V sanitation systems

• Recreational boats and yachts using 24V electric heads

• Preventive maintenance or replacement of worn components

Why Choose Genuine Jabsco Replacement Parts

Jabsco is a global leader in marine sanitation systems, trusted for quality, reliability, and long-term support. Using the 37041-0011 Motor/Pump Assembly ensures your toilet continues to operate as designed, with factory-approved performance and durability.

Why Buy Genuine Jabsco Parts?

When it comes to marine sanitation, reliability is non-negotiable. Using a genuine Jabsco 37041-0011 assembly ensures that the flow rates and maceration capabilities match the original factory specifications, protecting your plumbing and keeping your head system odor-free.

Order your Jabsco replacement assembly from Anchor Express for fast shipping and the best technical support in the industry.
