Jabsco 3" Flangemount Blower - 100 CFM - 115v - 34744-0000
Manufacturer Part #: 34744-0000
Couldn't load pickup availability

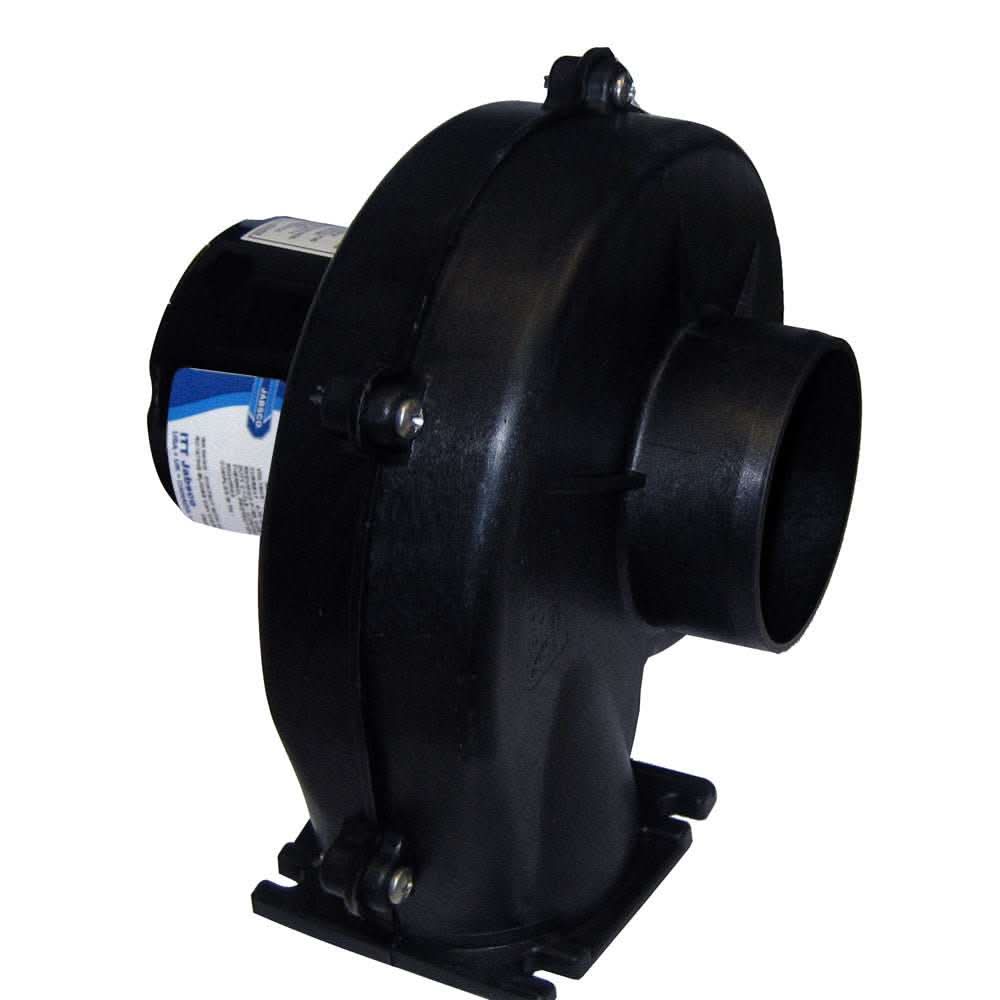

Jabsco 3" Flangemount Blower – 100 CFM – 115V – 34744-0000
The Jabsco 3" Flangemount Blower is a compact, dependable 115-volt ventilation blower designed to provide consistent airflow in marine, RV, and light commercial applications. With a 100 CFM airflow rating, this blower efficiently circulates air to help remove heat, moisture, fumes, and odors from engine spaces, compartments, and enclosed areas.
Built with Jabsco’s proven ventilation technology, this flangemount blower offers long service life and reliable performance in demanding environments.
Efficient 100 CFM Airflow
Rated at 100 cubic feet per minute, this blower provides steady air movement for smaller compartments and ventilation needs. It is ideal for applications where compact size and controlled airflow are required.
Secure Flangemount Installation
The flangemount design allows for stable mounting to bulkheads or flat surfaces, ensuring reduced vibration and long-term reliability. This mounting style makes the blower well-suited for permanent ventilation installations.
⚡ 115V AC Operation
Operating on 115V AC power, this blower is compatible with shore power or onboard AC electrical systems, making it ideal for marina-connected vessels, RVs, and stationary marine applications.
Durable, Marine-Grade Construction
Manufactured by Jabsco, this blower features corrosion-resistant materials and a rugged housing designed to withstand moisture, vibration, and harsh operating conditions commonly found in marine environments.
In the Box: 34744-0000
-
(1) Jabsco 3" Flangemount Blower: 115V AC unit with a corrosion-resistant housing.
-
(1) Integrated Mounting Flange: Pre-molded into the intake side of the housing.
-
(1) Wiring Lead: For connection to an AC power source.
-
(1) Instruction Sheet: Including mounting hole patterns and electrical safety data.
Key Features & Benefits
1. 115V AC Power Versatility
Unlike most marine blowers that run on battery power (12V/24V), this unit is designed for boats with active AC systems (Generators/Shore Power). It is an excellent choice for:
-
Galley Exhaust: Removing cooking odors and heat.
-
Head Ventilation: Constant moisture and odor extraction.
-
Electronic Cooling: Keeping rack-mounted navigation or audio equipment cool.
2. Space-Efficient Design
The 3-inch diameter makes this blower ideal for tight spaces where a 4-inch model is too bulky. Despite its smaller size, it still moves a respectable 100 CFM, which is more than enough for small compartments or focused cooling.
3. Built for Longevity
-
High-Impact Housing: The tough plastic housing is designed to withstand the vibration and salt-air exposure of a marine engine room or bilge area.
-
Low Amp Draw: Drawing only 0.5 Amps, this blower is highly efficient and won't put a significant strain on your AC circuit.
Technical Specifications
| Feature | Details |
| Model Number | 34744-0000 |
| Voltage | 115V AC (50/60 Hz) |
| Flow Rate | 100 CFM ($2.8 \text{ m}^3/\text{min}$) |
| Amp Draw | 0.5 Amps |
| Fuse Size | 1.0 Amp |
| Ducting Size | 3" (76mm) |
| Mounting Style | Flangemount (Bulkhead) |
| Weight | Approx. 5.0 lbs ($2.3 \text{ kg}$) |
Important Safety Note
NOT IGNITION PROTECTED: Like most AC-powered blowers, the 34744-0000 is not ignition protected. It must not be used in areas where flammable gasoline vapors may be present. It is strictly for diesel engine rooms, galleys, heads, or general industrial ventilation.
Pro-Tip for Installation:
"Because this blower uses AC voltage, ensure it is wired through a dedicated GFCI-protected circuit if installed in a damp environment like a head or bilge. To reduce noise, ensure the mounting surface is rigid; if mounting to a thin fiberglass bulkhead, adding a small rubber gasket between the flange and the wall can significantly cut down on vibration resonance throughout the boat."
Ideal Applications
-
Marine compartments and lockers
-
Engine room auxiliary ventilation
-
RV and camper ventilation
-
Light commercial and utility spaces
-
Shore power–connected vessels
Why Choose Jabsco Ventilation Products
Jabsco is a trusted name in marine ventilation and pumping systems, known for dependable performance and quality construction. The 3" Flangemount Blower – 100 CFM – 115V offers an effective, compact ventilation solution where space and reliability matter.
Maintain proper airflow with the Jabsco 3" Flangemount Blower – 100 CFM – 115V – 34744-0000, a compact, reliable blower designed for continuous ventilation performance.
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
Manufacturer : Jabsco
Manufacturer Part No : 34744-0000
UPC : 671880029438
