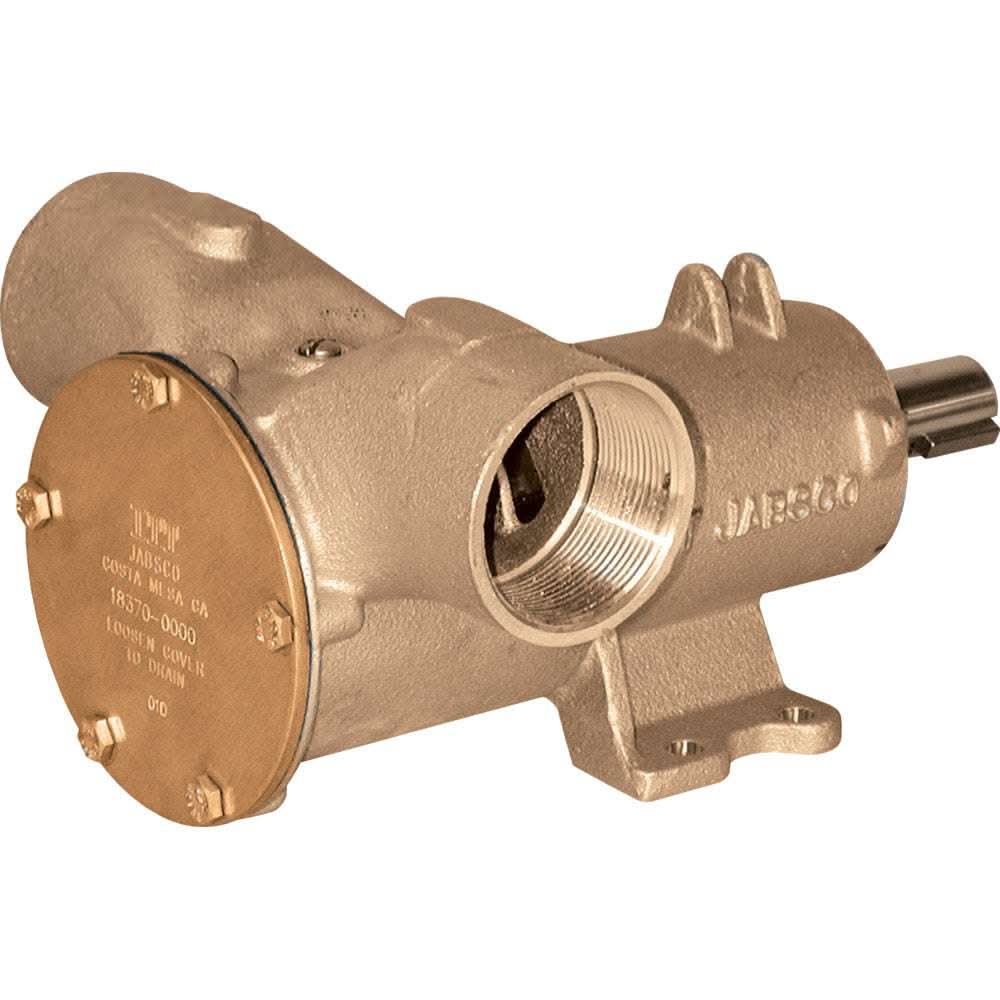

Jabsco 2" Bronze Pedestal Pump - 18370-0000

The Jabsco 18370-0000 Bronze Pedestal Pump is a heavy-duty, flexible impeller pump designed for high-volume water transfer in marine and industrial environments. It is a bare-shaft pedestal unit, meaning it is designed to be driven by an external motor via a pulley and belt or a direct coupling.

Key Performance Features

• High-Volume Flow: Delivers a nominal flow rate of 60 GPM (270 LPM) at 1500 RPM, with a maximum capacity of up to 83 GPM at 1750 RPM.

• Rapid Self-Priming: Capable of self-priming from dry up to 7.8 feet (2.4m). When the impeller is wetted, the suction lift increases up to 22 feet.

• Versatile Handling: This pump combines the priming benefits of positive displacement pumps with the transfer ability of centrifugals. It can handle thin or viscous liquids and passes hard and soft solids without clogging.

• Bi-Directional Operation: The pump can operate in either direction, with the intake and discharge ports determined by the shaft's rotation.

• Marine-Grade Durability: Constructed with a bronze body, 316 stainless steel shaft, and a carbon-ceramic mechanical face seal for long-term reliability in saltwater.

Technical Specifications

• Port Size: 2" NPT (Internal)

• Impeller: Neoprene (Standard)

• Seal Type: Carbon/Ceramic Mechanical Face Seal

• Bearings: Twin single-row, sealed ball bearings

• Weight: Approximately 19.8 lbs (9 kg)

• Shaft Diameter: 1"

Summary for the User

The Jabsco 2" Bronze Pedestal Pump 18370-0000 is an industrial-strength "workhorse" ideal for engine cooling, bilge pumping, and high-capacity washdowns. Its ability to tolerate abrasive wear and handle solids makes it a reliable choice for messy or demanding tasks.

Pro Tip: To prevent damage, do not run this pump dry for more than 30 seconds. Lack of liquid will quickly cause friction heat that destroys the flexible neoprene impeller.

Part Number: 18370-0000

The Jabsco 2" Bronze Pedestal Pump delivers rugged construction and dependable manual operation, making it an excellent choice for boaters who need a reliable backup or primary manual pumping solution.
