How do I install the Jabsco 12v Electric Conversion Kit on my toilet?

The Jabsco 12v Electric Conversion Kit is designed for easy installation, directly replacing your manual pump. Installation instructions are included, and it can be set up in both above or below waterline configurations for convenience.

What makes the Jabsco 12v Electric Conversion Kit suitable for my marine toilet?

This conversion kit is compatible with all Jabsco and Par 29090 and 29120 standard and large bowl toilets, with adapters available for other makes. Its built-in macerator and dual action control make it versatile and easy to operate on boats.

Is the Jabsco 12v Electric Conversion Kit safe to use in marine environments?

Yes, the kit meets strict standards including EN50081-2 for EMC, ISO 8846 MARINE for ignition protection, and USCG 183.410, ensuring safe and reliable operation in marine environments.

How easy is it to install the Jabsco 12v Electric Conversion Kit on my existing toilet?

The Jabsco 12v Electric Conversion Kit is designed for straightforward installation, allowing you to replace your manual pump with minimal effort. It fits standard Jabsco and Par 29090 and 29120 toilets, and adapters are available for other models, making it suitable for both DIY enthusiasts and professionals.

What are the key operational benefits of using the Jabsco 12v Electric Conversion Kit?

This electric conversion kit offers simple operation with dual action control for adjustable water levels, self-priming capability up to 2 feet, and a built-in macerator for efficient waste pumping. Additionally, it is energy-efficient, consuming less than 1 amp hour at 12 volts, ideal for reliable marine use.

Popular right now
Lots of people have looked at this recently

Jabsco 12v Electric Conversion Kit (Manual to electric) - 29200-0120

$513.99 ~~$779.99~~

SKU: 31427

Manufacturer Part #: 29200-0120

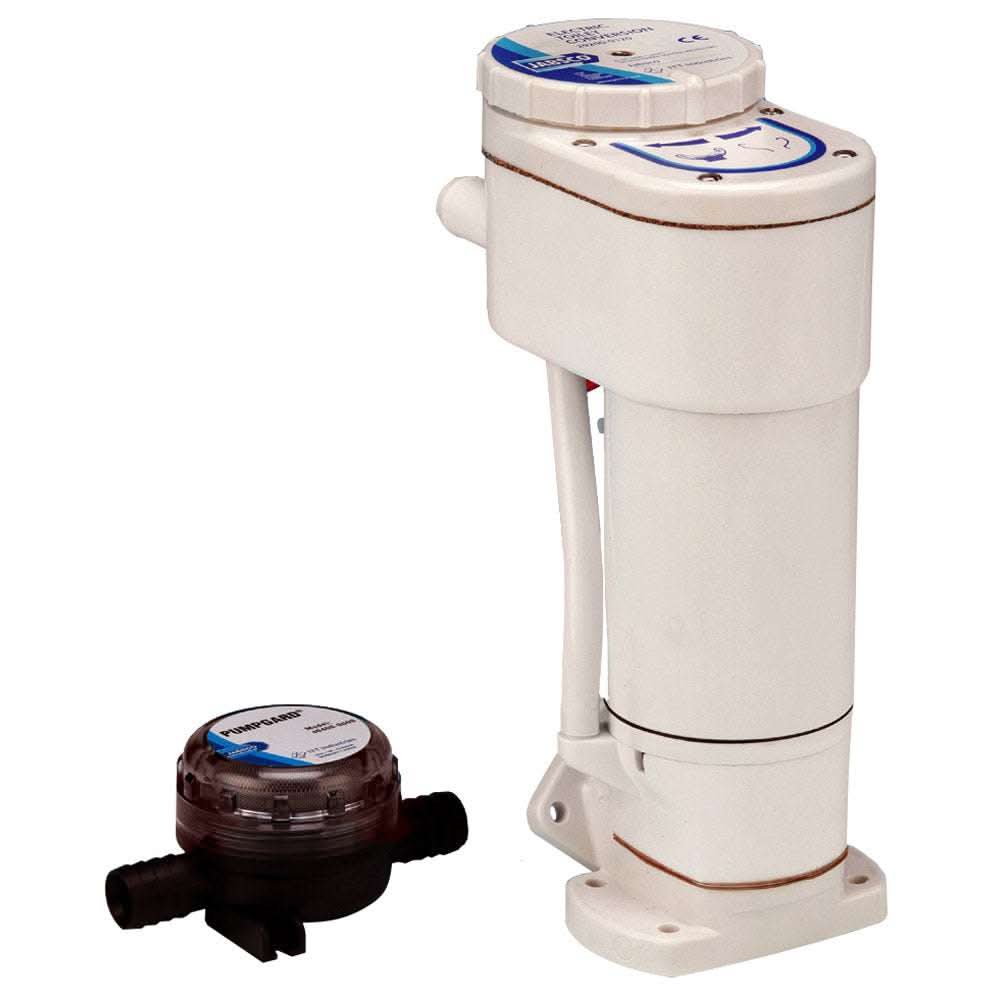

Jabsco 12V Electric Conversion Kit (Manual to Electric) – 29200‑0120

Upgrade your marine sanitation system with the Jabsco 12V Electric Conversion Kit 29200‑0120, designed to convert most manual marine toilets to full electric operation. Perfect for boaters who want the convenience, efficiency, and cleanliness of an electric flush system, this kit allows you to enjoy effortless, push-button flushing while retaining your existing toilet bowl and plumbing.

The kit is compatible with a wide range of manual toilets, including Jabsco, Raritan, Mansfield, Sealand, and other brands with a standard 4-bolt, 3-3/4" diameter bolt pattern. This makes installation straightforward, eliminating the need to replace your entire toilet assembly. Its self-priming pump can lift up to 4 feet (1.2 m) vertically, making it ideal for a variety of installation configurations, including those below the waterline with proper vented loop protection.

Built to meet USCG 183.410 and ISO 8846 Marine Ignition Protection standards, this conversion kit ensures safe and reliable operation in all marine environments, both freshwater and saltwater. The Jabsco 29200‑0120 is trusted by professional marine technicians and DIY boaters alike for enhancing comfort and improving onboard sanitation.

Key Performance Features

High-Efficiency Macerator: The internal stainless steel macerator plate grinds waste into a fine slurry, which significantly reduces the risk of holding tank clogs and allows for easier pump-outs.
Dual-Purpose Pump: This unit features a built-in centrifugal pump that manages both intake rinse water and waste discharge simultaneously with a single touch.
Direct Replacement: It is engineered to bolt directly onto the existing base of most manual Jabsco toilets (29090 and 29120 series) and can be mounted on either the left or right side of the bowl.
Corrosion-Resistant Materials: Built with a 316 stainless steel shaft and a high-impact plastic housing to withstand the corrosive marine environment.¹

Technical Specifications

Voltage: 12V DC (Requires a 25A fuse).
Self-Priming: Capable of a 3-foot (0.9m) vertical lift, allowing it to be installed above or below the waterline.
Port Sizes: 3/4" (19mm) Inlet and 1" (25mm) Discharge.
Inlet Type: Designed for use with fresh or salt water (external intake pump not required).

What's In The Box

The 29200-0120 kit is comprehensive and typically includes:

Motor & Macerator Assembly: The main 12V power unit.
Control Switch: A heavy-duty, waterproof momentary push-button switch.
Installation Hardware: All necessary gaskets, base fasteners, and wiring connectors.
Adapters: Discharge port adapters for 1" (25mm) or 1-1/2" (38mm) hoses.

Why Choose Jabsco Jabsco 12v Electric Conversion Kit (Manual to electric) 29200‑0120

Reduces manual effort and improves hygiene with electric flushing
Easy installation using existing plumbing and toilet seat
Ideal for both recreational and commercial boats
Enhances reliability and performance of your marine sanitation system

Summary for the User

This conversion kit is a cost-effective upgrade that provides the luxury of a "household-style" flush. It is highly praised for its powerful suction and straightforward DIY installation. Because it uses a macerator, it is much more effective at moving waste through long plumbing runs than a manual pump.

Installation Tip: To ensure maximum performance, use heavy-gauge marine-grade wire for the power run to prevent voltage drop, which can cause the motor to run sluggishly.

Manufacturer : Jabsco
Manufacturer Part No : 29200-0120
UPC : 671880520935
