What are the key features of the Jabsco 1" Electro-Magnetic Clutch Pump?

The Jabsco 1" Electro-Magnetic Clutch Pump is made from durable marine-quality bronze and stainless steel, designed for ruggedness and reliability. It is easy to service, operates inexpensively, and can handle solids without clogging. Plus, it can pump in either direction and won't airlock.

What are the typical applications for the Jabsco 1" Electro-Magnetic Clutch Pump?

This versatile pump is ideal for marine applications such as engine cooling, bilge pumping, and washdowns, as well as industrial uses like chemical transfer, pharmaceutical processing, and ink handling. It is also suitable for farming, public utilities, and municipal dewatering tasks.

How does the Jabsco 1" Electro-Magnetic Clutch Pump perform in demanding conditions?

The Jabsco pump is capable of self-priming from dry up to 7.8 feet and tolerates abrasive wear, making it suitable for tough conditions. It handles soft and hard solids without clogging, ensuring reliable operation across various demanding applications.

What are the key features of the Jabsco 1" Electro-Magnetic Clutch Pump?

The Jabsco 1" Electro-Magnetic Clutch Pump is built with marine-quality bronze and stainless steel, making it durable and reliable. It is easy to service, handles solids without clogging, and can operate in either direction without airlocking, making it versatile for various applications.

In which applications can I use the Jabsco 1" Electro-Magnetic Clutch Pump?

This pump is ideal for marine uses like engine cooling, bilge pumping, and wash downs. It’s also suitable for industrial tasks such as chemical transfer, pharmaceuticals, and ink processing, as well as farming and municipal utility applications like dewatering and draining meter boxes or manholes.

How does the Jabsco 1" Electro-Magnetic Clutch Pump perform in different conditions and what are its maintenance requirements?

The pump has a flow rate of 23 US gallons per minute at 1750 RPM and can self-prime from dry up to 7.8 feet. It is designed to tolerate abrasive wear and is easy to maintain and service, ensuring reliable operation across various demanding conditions.

Popular right now
Lots of people have looked at this recently

Jabsco 1" Electro-Magnetic Clutch Pump - 12V - 11860-0005

$845.99 ~~$1,294.99~~

SKU: 34539

Manufacturer Part #: 11860-0005

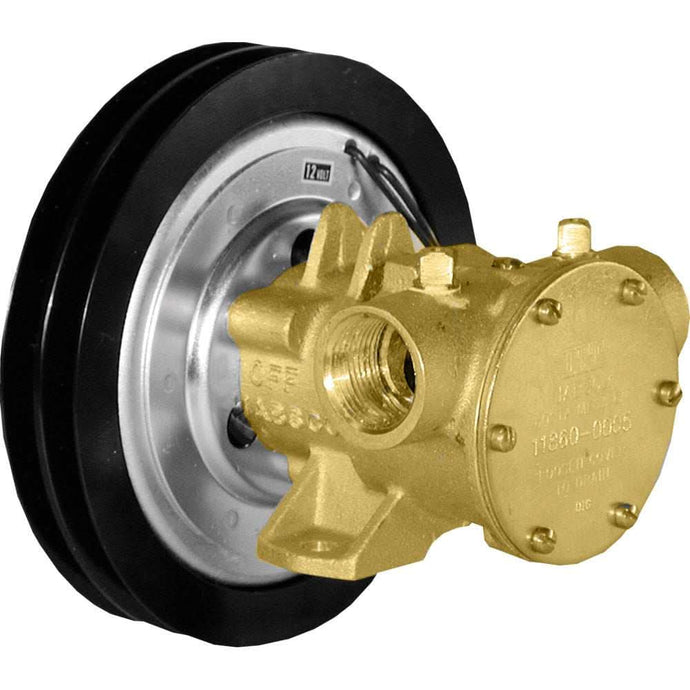

Jabsco 1" Electro-Magnetic Clutch Pump – 12V – 11860-0005

The Jabsco 11860-0005 Electro-Magnetic Clutch Pump is a heavy-duty engine-driven raw water pump designed for marine air conditioning, refrigeration, and engine cooling support systems. Featuring a 12V electro-magnetic clutch, this pump engages only when power is applied, reducing wear, heat buildup, and parasitic engine load when cooling is not required.

Built with a corrosion-resistant bronze housing and Jabsco’s proven flexible impeller design, the pump delivers reliable seawater flow and excellent self-priming capability. The 1-inch inlet and outlet ports provide efficient water movement for high-demand marine applications. Trusted by OEMs and marine professionals, this clutch pump offers long service life in both freshwater and saltwater environments.

Key Performance Features

Engine-Driven Power: This pump is designed to be belt-driven by your gasoline or diesel engine using two A-size belts. The 12V DC electromagnetic clutch allows you to engage or disengage the pump remotely via a dash switch or float switch.
High-Volume Flow: Delivers a nominal flow of 23 GPM (87 LPM) at 1,750 RPM. At maximum engine speeds (up to 3,000 RPM), it can reach capacities of nearly 35 GPM.
Reliable Self-Priming: Effectively self-primes from a dry start up to 7.8 feet (2.4m). Once the impeller is wet, it can maintain a vertical lift of up to 22 feet.
Manual Override: A unique safety feature of the 11860-0005 is the inclusion of mechanical engagement screws. If your electrical system fails, you can manually lock the clutch to keep the pump operational.
Debris & Abrasive Tolerance: The flexible Nitrile impeller handles hard and soft solids without clogging and can withstand abrasive wear, making it suitable for messy bilge or industrial drainage tasks.

Technical Specifications

Body Material: Marine-quality Bronze
Shaft: 316 Stainless Steel
Seal: Mechanical Carbon-Ceramic Face Type
Port Size: 1" NPT (Internal Thread)
Pulley: 7" Diameter with 2-A Section grooves
Impeller: Nitrile (Oil-resistant)
Weight: Approximately 16.15 lbs

What is Included

When you purchase the Jabsco 1" Electro-Magnetic Clutch Pump - 12V - 11860-0005, the box typically contains the core mechanical assembly:

The Pump Body: A heavy-duty bronze housing with pre-installed internal components.
The 12V Clutch Assembly: A pre-mounted electromagnetic clutch with a 7" double-groove pulley (for 2-A section belts).
Impeller: A Nitrile (oil-resistant) impeller already installed inside the pump.
Mounting Hardware: Basic bolts for the pump-to-clutch assembly (the pump is usually shipped fully assembled).
Technical Manual: Installation instructions, exploded parts diagram, and a maintenance guide.

What You Will Need (Not Included)

Because every engine room and plumbing setup is different, you will need to source these items separately:

Drive Belts: Two A-section V-belts sized to fit your engine's pulley system.
Mounting Bracket: A custom or universal bracket to secure the pump to your engine block.
Electrical Switch & Wiring: A 12V DC dash switch and appropriate gauge wire to activate the clutch.
Plumbing Fittings: Two 1" NPT threaded fittings to connect your intake and discharge hoses.
Fasteners: The bolts required to secure the pump's base to your specific mounting bracket.

Essential Spares

It is a standard marine best practice to carry a backup for wear-and-tear parts. The Jabsco 920-0003P Nitrile Impeller Kit includes a replacement impeller and the necessary gasket for the end cover.

Would you like me to find the Jabsco 920-0003P Impeller Kit so you can have a spare ready, or perhaps the Vacuum Switch used to protect the pump from running dry?

Summary for the User

The Jabsco 1" Electro-Magnetic Clutch Pump - 12V - 11860-0005 is an ideal "fit-and-forget" solution for emergency bilge pumping, high-pressure washdowns, or engine cooling. By harnessing the engine's mechanical power, it ensures you have high-capacity pumping even if your batteries are low. It is widely regarded as one of the most rugged and versatile general-purpose pumps in the Jabsco catalog.

Pro Tip: To prevent accidental damage, consider installing the Jabsco 4732-0000 Vacuum Switch. This will automatically disengage the clutch if the pump runs dry for more than 30 seconds, protecting your impeller from heat damage.

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Jabsco
Manufacturer Part No : 11860-0005
UPC : 671880007962
