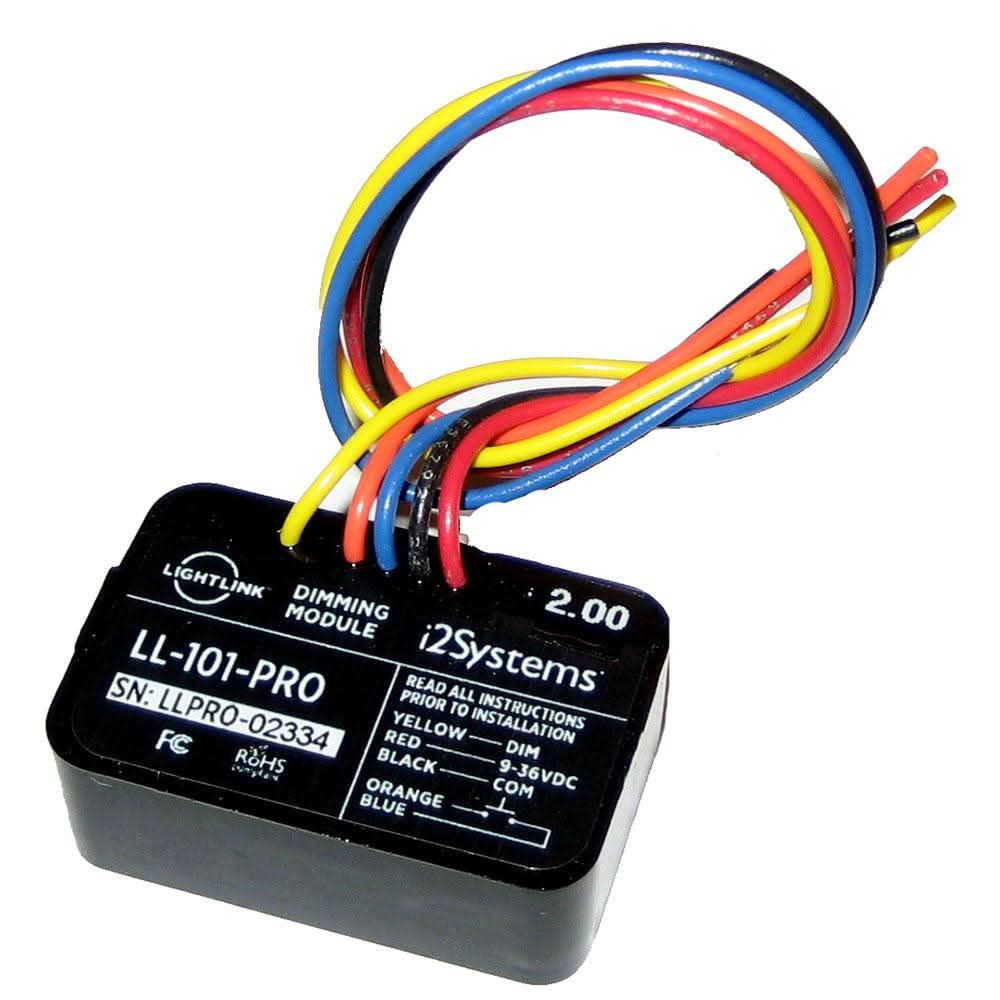

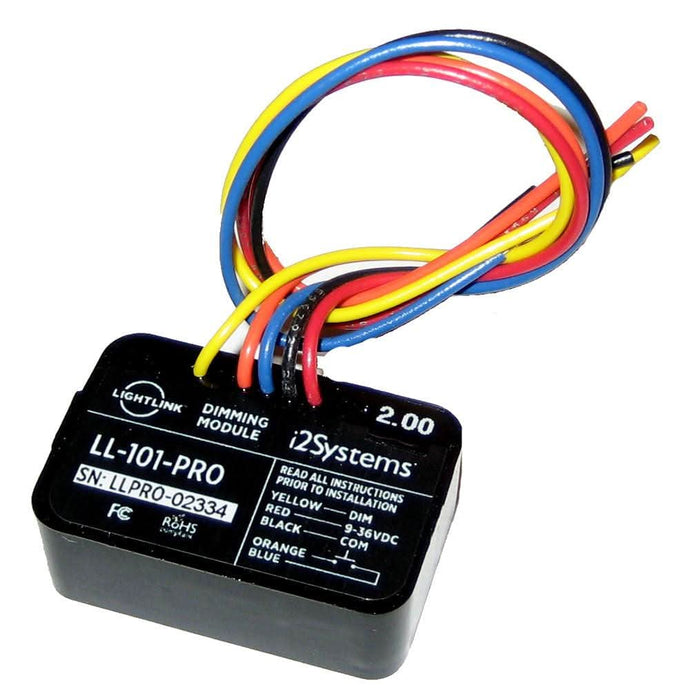

i2Systems LightLink Pro LED Dimming Module f/Apeiron PRO - LL-101-PRO

LightLink Pro LED Dimming Module for Apeiron PRO

Press and hold momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged.

Briefly press and release momentary switch for on/off operation.

For 2 and 3 Color enabled Fixtures, double-click momentary switch to enter color 2, triple-click for color 3.

Add additional momentary switches in parallel with the shown switch for multi-location control.

Upon loss of power, intensity and LED color of controlled Fixtures return to previous state, using LightLink’s onboard non-volatile memory.

Features:

9-36V DC Input

Low Level Dimming Using Momentary Switch Interface

Enables Smart Tri-Color Operation

Small Size, Fully Potted

Non-Volatile Memory Recalls Last Intensity
