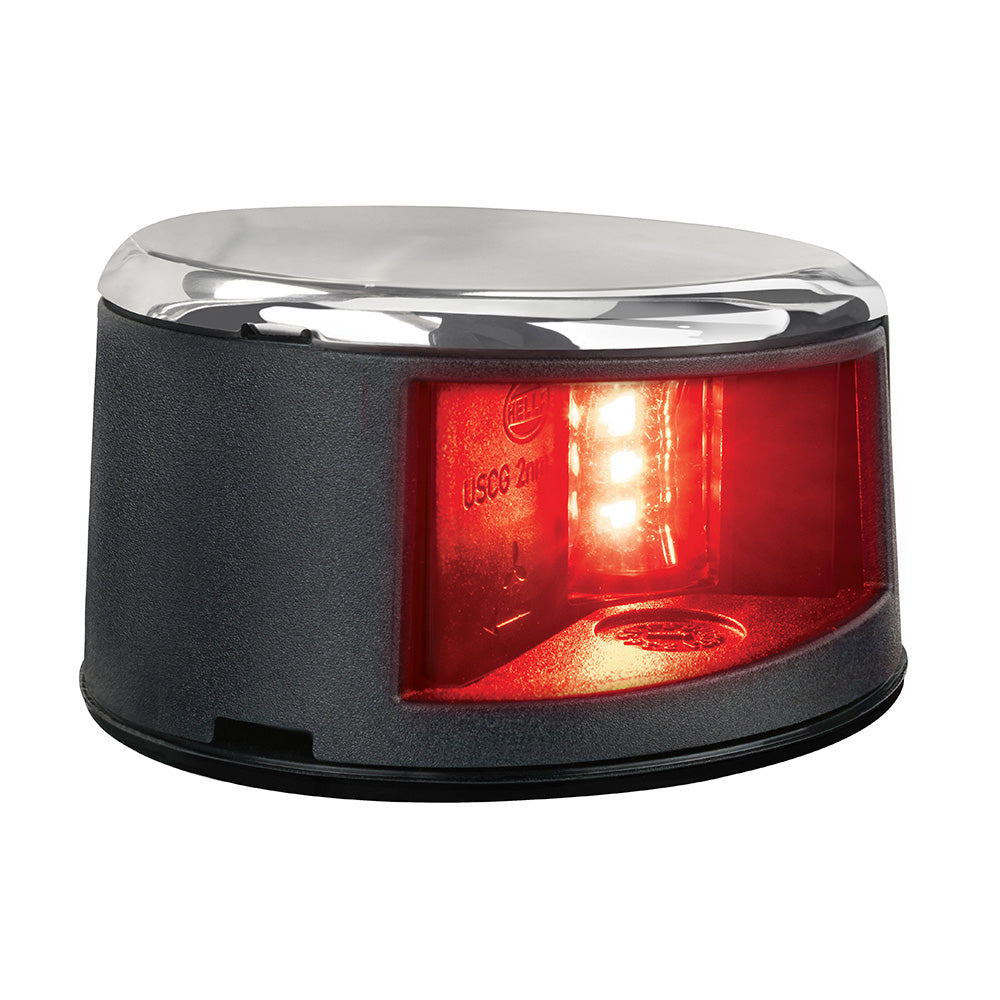

Hella Marine NaviLED Gen II Port Deck Mount Navigation Lamp – Stainless Steel
The Hella Marine NaviLED Gen II Port Deck Mount Navigation Lamp, part number 17910011, provides reliable port-side navigation lighting for boats and powerboats. Its refined deck-mount design features clean lines and concealed fasteners after installation, while the stainless steel bezel delivers a durable, polished appearance suited to modern marine applications.
Designed for vessels up to 65 feet in length, this navigation lamp meets current American Boat and Yacht Council (ABYC) requirements and provides a minimum 2 nautical miles of visibility. Multivolt circuitry supports 12- and 24-volt DC electrical systems and maintains required visibility even when supply voltage drops to 9 volts. Reverse-polarity protection helps safeguard the lamp during installation and electrical irregularities.
The fully sealed Hella Marine housing is rated IP67 and IP69, making it suitable for submersion during operation and high-pressure water-jet cleaning. UV-resistant, high-impact acrylic withstands sunlight, vibration, and corrosive saltwater exposure. Integrated electromagnetic compatibility measures limit interference and improve protection against emissions that could affect onboard radio, communication, navigation, and other electrical equipment. A tinned marine cable supports dependable wiring in demanding marine environments, and the lamp is backed by a 5-year warranty.
Features:
- Mounting: Horizontal surface mount with a two-hole screw pattern and concealed fasteners
- Navigation visibility: 2 nautical miles for port-side powerboat applications
- Lens material: High-impact, UV-resistant acrylic
- Operating voltage: Multivolt 9–32V DC for 12- and 24-volt systems
- Voltage protection: Reverse-polarity protected
- Power consumption: Less than 2 watts
- Cable: 4.7 inches of tinned marine cable
- Protection: IP67 and IP69 fully sealed construction, suitable for submersion and high-pressure water-jet cleaning
- Warranty: 5 years
Hella Marine NaviLED Gen II Port Deck Mount Navigation Lamp - Stainless Steel
Hella Marine NaviLED Gen II Port Deck Mount Navigation Lamp – Stainless Steel
The Hella Marine NaviLED Gen II Port Deck Mount Navigation Lamp, part number 17910011, provides reliable port-side navigation lighting for boats and powerboats. Its refined deck-mount design features clean lines and concealed fasteners after installation, while the stainless steel bezel delivers a durable, polished appearance suited to modern marine applications.
Designed for vessels up to 65 feet in length, this navigation lamp meets current American Boat and Yacht Council (ABYC) requirements and provides a minimum 2 nautical miles of visibility. Multivolt circuitry supports 12- and 24-volt DC electrical systems and maintains required visibility even when supply voltage drops to 9 volts. Reverse-polarity protection helps safeguard the lamp during installation and electrical irregularities.
The fully sealed Hella Marine housing is rated IP67 and IP69, making it suitable for submersion during operation and high-pressure water-jet cleaning. UV-resistant, high-impact acrylic withstands sunlight, vibration, and corrosive saltwater exposure. Integrated electromagnetic compatibility measures limit interference and improve protection against emissions that could affect onboard radio, communication, navigation, and other electrical equipment. A tinned marine cable supports dependable wiring in demanding marine environments, and the lamp is backed by a 5-year warranty.
Features:
- Mounting: Horizontal surface mount with a two-hole screw pattern and concealed fasteners
- Navigation visibility: 2 nautical miles for port-side powerboat applications
- Lens material: High-impact, UV-resistant acrylic
- Operating voltage: Multivolt 9–32V DC for 12- and 24-volt systems
- Voltage protection: Reverse-polarity protected
- Power consumption: Less than 2 watts
- Cable: 4.7 inches of tinned marine cable
- Protection: IP67 and IP69 fully sealed construction, suitable for submersion and high-pressure water-jet cleaning
- Warranty: 5 years
BRAND: Hella Marine
Manufacturer Part Number: 17910011
