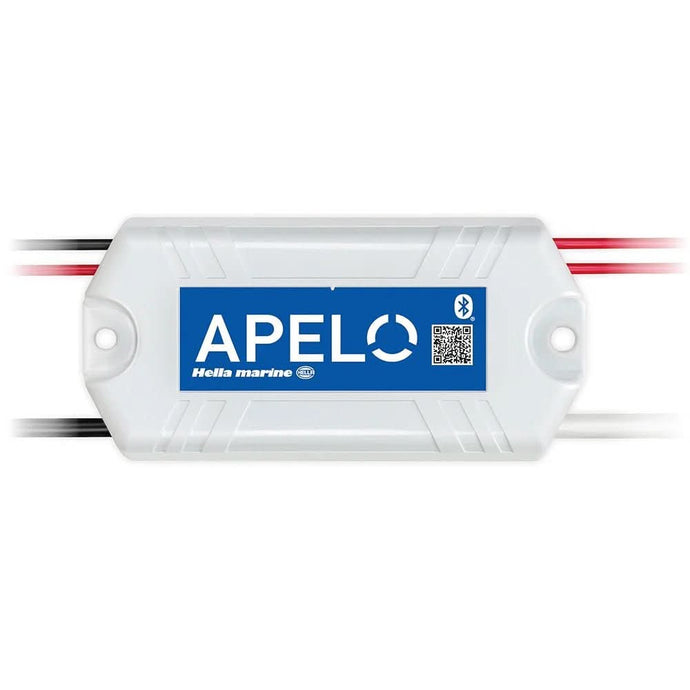

Hella Marine Apelo Light Controller Part 285814001 for Dynamic RGB/W Lighting Control - 285814001

Hella Marine Apelo Light Controller – Dynamic RGB/W Lighting Control (285814001)

Unlock the full potential of your underwater lighting system with the Hella Marine Apelo Light Controller (Part #285814001). Designed specifically for Apelo Dynamic RGB/W underwater lights, this advanced controller allows you to customize colors, brightness, and lighting effects for a truly immersive on-water experience.

Whether you're creating a vibrant dockside atmosphere, matching your boat’s theme, or enhancing night visibility, the Apelo controller delivers precision lighting control at your fingertips.

Key Features & Benefits

✔ Dynamic RGB/W Control

Easily control millions of color combinations plus pure white lighting with smooth transitions and customizable effects.

✔ Seamless Apelo Integration

Engineered to work specifically with Hella Marine Apelo RGB/W underwater lights for reliable compatibility and performance.

✔ Adjustable Brightness & Effects

Fine-tune brightness levels and choose from dynamic lighting modes including color cycling and static color hold.

✔ Marine-Grade Construction

Built to withstand the harsh marine environment, including vibration, moisture, and salt exposure.

✔ Multiple Light Synchronization

Control multiple Apelo RGB/W lights simultaneously for a synchronized underwater lighting display.

Why Add the Apelo Light Controller?

Without a dedicated controller, RGB/W underwater lights cannot fully deliver their customizable capabilities. The Apelo Controller provides:

• Full color spectrum access

• Enhanced onboard ambiance

• Personalized lighting setups

• Synchronized multi-light installations

• Easy system management

Perfect for boaters who want professional-level lighting customization.

Technical Specifications

• Voltage: Multivolt 12V / 24V DC.

• Power Handling: Total $150\text{W}$ max ($13\text{A}$ at 12V / $6.5\text{A}$ at 24V).

• Channel Capacity: $3\text{A}$ per color channel (Red, Green, Blue, White).

• Ingress Protection: IP67 (Completely sealed against dust and water immersion).

• Connectivity: Bluetooth Low Energy (BLE) Mesh

• Dimensions: Approximately $5.1\text{" (L)}\times 4.6\text{" (W)}\times 1.2\text{" (H)}$.

What’s in the Box

• Apelo Light Controller Unit: Fully sealed, UV-resistant module.

• Tinned Marine Cable (140mm): Pre-installed leads for corrosion-resistant electrical connections.

• Quick Start Guide / Instruction Sheet: Detailed wiring diagrams and app pairing instructions.

Ideal Applications

• Underwater transom lighting

• Swim platform illumination

• Dockside entertainment lighting

• Custom marine RGB lighting systems

• Sportfish, center consoles, cruisers, and yachts

Installation Tips

• Install in a dry, protected helm or electrical compartment.

• Follow Hella Marine wiring diagrams for proper connection.

• Use marine-grade connectors and sealants.

• Pair with compatible RGB/W Apelo lights only.

Mounting Tip

The Apelo Controller uses Bluetooth signals to communicate. To ensure the best range and mesh reliability, do not mount the controller directly onto or inside metallic surfaces (like aluminum hulls or steel lockers), as this can act as a Faraday cage and significantly reduce the wireless signal strength. Aim for a mounting location at least $50\text{ cm}$ (approx. $20\text{ inches}$) away from large metal objects.



Customize Your Underwater Experience

Take complete control of your lighting with the Hella Marine Apelo Light Controller (285814001). Create stunning color displays, dial in crisp white illumination, and elevate your boat’s nighttime presence with professional-grade RGB/W control.
