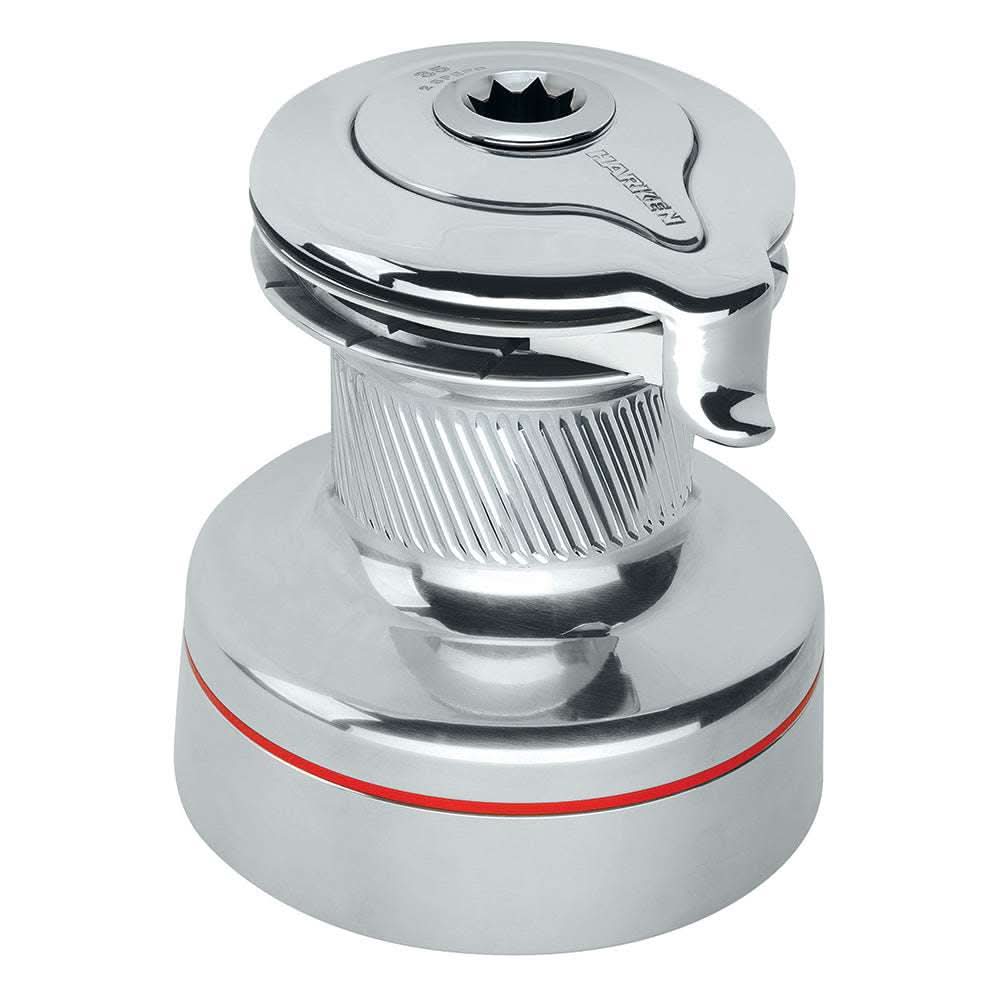

Harken 35 Self-Tailing Radial All-Chrome Winch - 2 Speed - 35.2STCCC
Manufacturer Part #: 35.2STCCC
Couldn't load pickup availability
Harken 35 Self-Tailing Radial All-Chrome Winch - 2 Speed - 35.2STCCC
The Harken 35 Self-Tailing Radial All-Chrome Winch – 2 Speed (35.2STC) is a premium manual sailing winch engineered for performance, durability, and smooth line handling on cruising and performance sailboats. Built with a highly polished chrome radial drum, this winch provides excellent corrosion resistance and classic marine aesthetics, while its radial groove pattern and self-tailing design deliver superior rope grip with minimal wear. The two-speed gearing system gives sailors the flexibility to rapidly take up line or apply greater mechanical advantage under heavy loads, making trimming sheets or hoisting halyards easier and more efficient.
Technical Specifications
-
Model: Harken 35.2STC (Self-Tailing Radial All-Chrome Winch)
-
Configuration: Self-tailing, 2-speed manual winch
-
Material: All-chrome finish with composite self-tailing jaws & roller bearings
-
Gear Ratios:
-
1st Speed: ~2.13:1
-
2nd Speed: ~5.65:1
-
-
Power Ratios: ~13.5:1 (1st), ~35.9:1 (2nd)
-
Drum Diameter: ~80 mm (3 1/8″)
-
Base Diameter: ~149 mm (5 7/8″)
-
Height: ~170 mm (6 11/16″)
-
Line Entry Height: ~79 mm (3 1/8″)
-
Line Size Range: 8 mm to 12 mm (5/16″–1/2″)
-
Weight: ~4.8 kg (10.6 lb)
-
Fastener Circle: ~123 mm (4 7/8″) with 5 fasteners
Key Features & Performance
-
Radial Gripping Surface: The drum features diagonal ribs that provide a stronger grip on the line while significantly reducing line wear compared to abrasive finishes.
-
Two-Speed Gearing: This winch features a high-speed gear for quick trimming and a high-power gear for fine-tuning under heavy loads.
-
Efficient Self-Tailing: The integrated mechanism allows a single crew member to trim sails without needing a second person to tail the line, making it ideal for short-handed sailing.
-
Simple Maintenance: The snap-fit design allows the winch to be stripped and serviced on deck without the risk of losing small internal parts.
In the Box
-
Winch Assembly: The complete pre-assembled 35.2STCCC unit.
-
Installation Manual: Detailed mounting patterns and maintenance schedules.
-
Note: Mounting hardware (bolts) and winch handles are sold separately to accommodate different deck thicknesses and user preferences.
Ideal For
-
Cruising sailboats and performance yachts
-
Halyards, sheets, and control lines
-
Sailors seeking a combination of classic chrome aesthetics and modern radial performance
-
Deck installations that demand rugged reliability and load versatility
Manufacturer : Harken
Manufacturer Part No : 35.2STCCC
