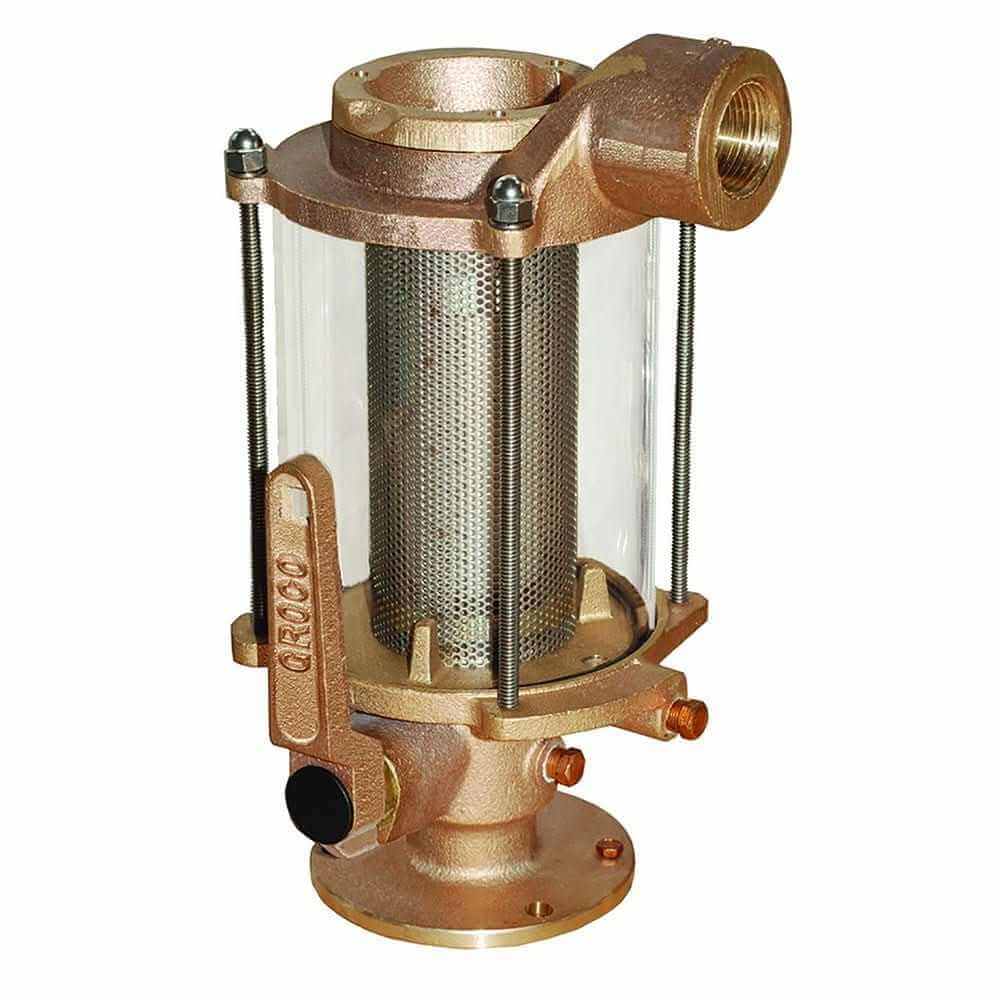

GROCO 1-1/2" Ball Valve/Seacock and Raw Water Strainer Combo - BVS-1500

GROCO 1-1/2" Ball Valve/Seacock & Raw Water Strainer Combo – BVS-1500

Upgrade your vessel’s plumbing system with the GROCO BVS-1500 Ball Valve/Seacock and Raw Water Strainer Combo, a premium all-in-one solution engineered for maximum reliability, safety, and space efficiency. Designed specifically for marine applications, this unit combines a full-flow seacock and raw water strainer into a single compact assembly, reducing installation complexity and minimizing potential leak points below the waterline.

Constructed from rugged C84400 marine bronze, the BVS-1500 is built to withstand harsh saltwater environments while delivering long-term durability. The integrated design eliminates the need for multiple fittings and hose connections, helping improve system integrity and simplify maintenance.

Key Features & Benefits

• All-in-One Seacock & Strainer Design
  Combines valve and strainer into a single unit to save space and reduce below-waterline connections—lowering leak risk and installation cost.

• Full-Flow Ball Valve System
  Ensures unrestricted water flow for optimal engine cooling and system performance.

• Heavy-Duty Marine Bronze Construction
  Built from corrosion-resistant C84400 bronze for long-lasting durability in saltwater conditions.

• Service-Friendly Strainer Design
  Features a screw-on/off cap and removable stainless steel filter basket for easy inspection and cleaning.

• Integrated Drain Plug & Grease Zerk
  Allows for easy winterization, drainage, and lubrication (on models 1-1/4" and larger).

• Ratchet-Ready Valve Handle
  Square hole in the handle accepts a standard ratchet for easier operation in tight bilge spaces.

Technical Specifications

• Model: BVS-1500

• Connection Size: 1-1/2" NPS (bottom) / 1-1/2" NPT (top)

• Material: C84400 Marine Bronze

• Valve Type: Full-flow ball valve with stainless steel ball & stem

• Strainer Basket: 304 Stainless Steel

• Open Area Ratio: 19:1 (high flow efficiency)

• Design: Integral seacock + raw water strainer combo

• Application: Below-waterline installations

Dimensions (Approx.)

• Height: ~15"

• Width: ~8"

• Compact footprint for tight bilge installations

 Ideal Applications

• Engine raw water intake systems

• Generator cooling systems

• Marine air conditioning systems

• Commercial and recreational vessels

Why Choose the GROCO BVS Series?

The GROCO BVS-1500 is trusted by boat builders and marine professionals because it simplifies complex plumbing setups while improving safety. By combining two critical components into one, it reduces installation time, minimizes maintenance points, and enhances overall system reliability—making it a smart upgrade for any serious marine application.

Installation Tip

When installing the BVS-1500, ensure the seacock is securely bolted to a backing block and connected to the vessel's bonding system using the provided bonding screw. To maintain the smooth operation of the valve, GROCO recommends injecting U-LUBE lubricant through the zerk fitting during your regular maintenance schedule.
