Garmin GPS 24xd GPS Antenna w/Heading Sensor f/NMEA 2000 Network - Black - 010-02316-20

GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 Network - Black

The GPS 24xd position receiver and antenna give users precise location with multi-band GNSS and heading accuracy even at slow speeds.

Features:

• Navigate to more locations with expanded GNSS support
• Get high-sensitivity tracking with a fast GPS update rate
• Accurately pinpoint, regardless of speed
• It’s water-resistant (IPX7) to withstand the elements
• Install it easily with multiple mounting options
• The antenna is compatible with NMEA 2000® devices

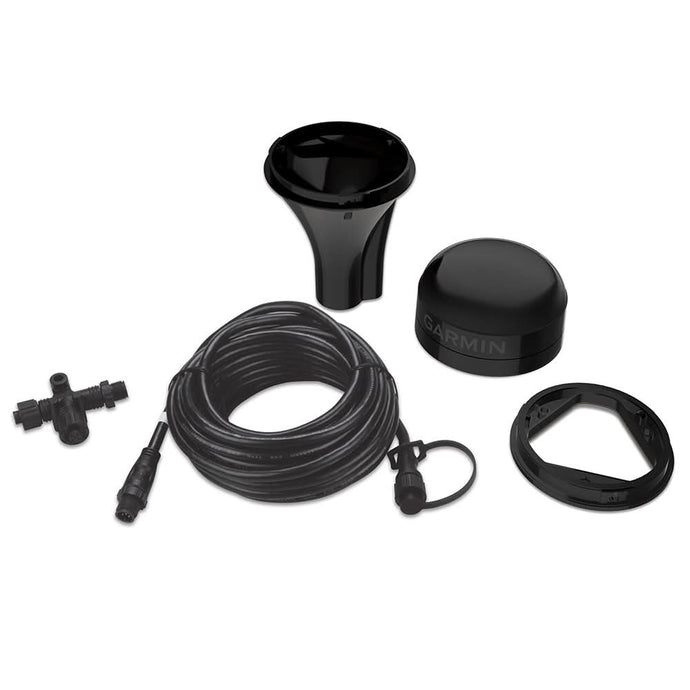

In the Box:

• GPS 24xd NMEA 2000®
• Pole mount
• Surface mount
• NMEA 2000 backbone/drop cable (6 meters)
• NMEA 2000 T-connector
• Documentation

Specifications:

• Color: Black
• Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g), white; 6.2 oz (176 g), black
• Cable Length: 19 ft 8" (6 m)
• Temperature Range: -22° to 176° F (-30° to 80° C), white; -22° to 149° F (-30° to 65° C), black
• Case Material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-Safe Distance: 5.9" (150 mm)
• Power Source Input: 9-32 Vdc
• Input Current: 150 mA at 12 Vdc
• NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
• Position Accuracy, Typical Marine Use: < 1-meter CEP, < 3 meters, 95%
