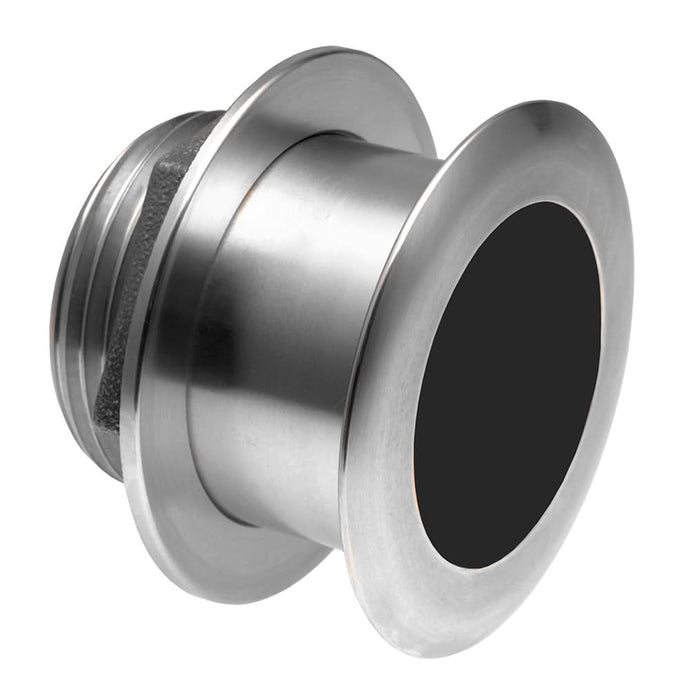

Furuno 556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted - 556TID-LTD/12
Manufacturer Part #: 556TID-LTD/12
556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted
Furuno's Stainless Steel Thru-Hull Transducer, 1 kW (10 Pin), 12-degree Tilted Element.
Airmar SS164 Housing Style Transducer.
If a thru-hull flush-style, stainless steel transducer is called for, the 12-Degree Tilted Element 556TID-LTD/12 will accommodate a deadrise angle between 8° and 15°. This transducer compensates for deadrise by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
- 1kW 50/200 kHz
- 20/6 degree Beam Angles
- Stainless Steel Thru Hull with Temperature
- 30 Foot Cable with 10-Pin Connector
Furuno 556TID-LTD/12 Stainless Steel Thru-Hull 1kW - 12° Tilted - 556TID-LTD/12 is backordered and will ship as soon as it is back in stock.
