Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch

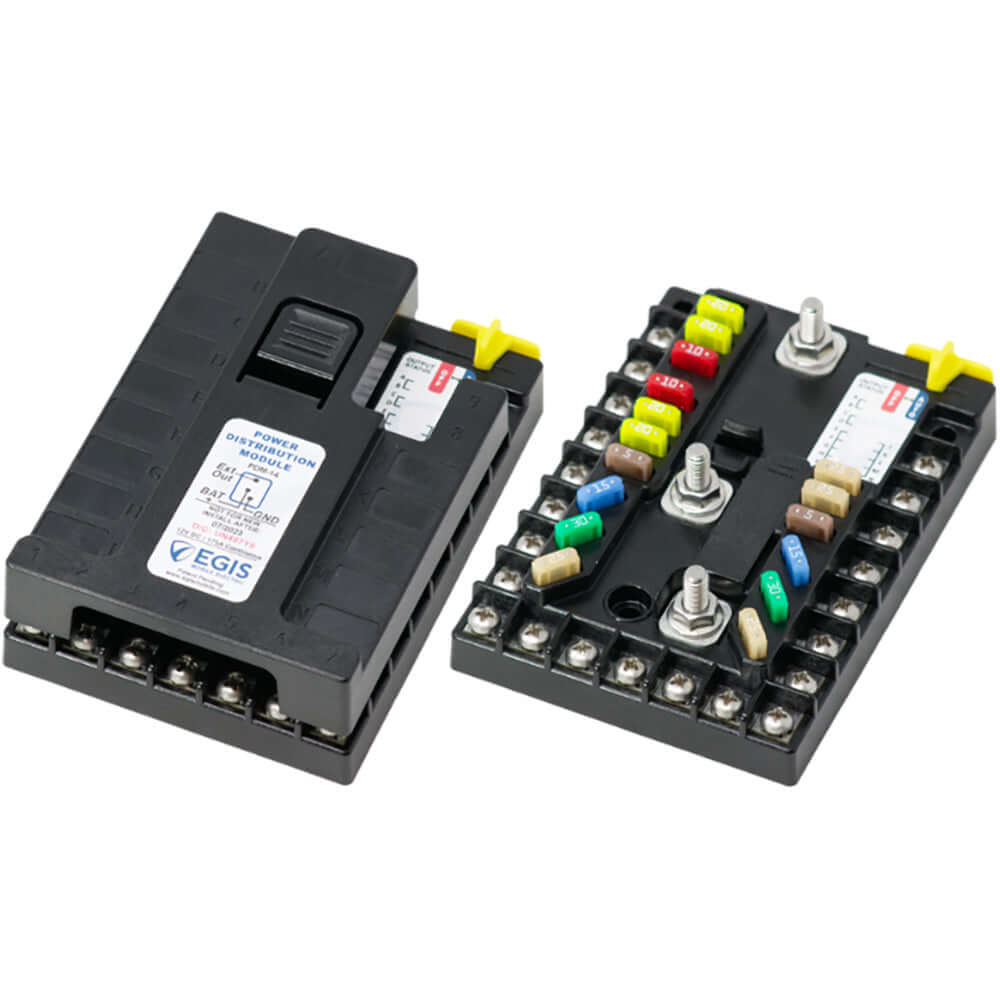

PDM 14 Circuit + Ground 175A 12V with Kill Switch

Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.

Features:

• For 12-volt systems, the allowed voltage range is 8-18 VDC


• Total continuous output limit: 175 amps


• Three load groups with a continuous output of 75-115 amps


• Optional time delay 0-10 hrs


• Optional low voltage protection 11-12.2 volts


• Offload current draw 1.3 mA

BRAND: Egis Mobile Electric

Manufacturer Part Number: 2601
