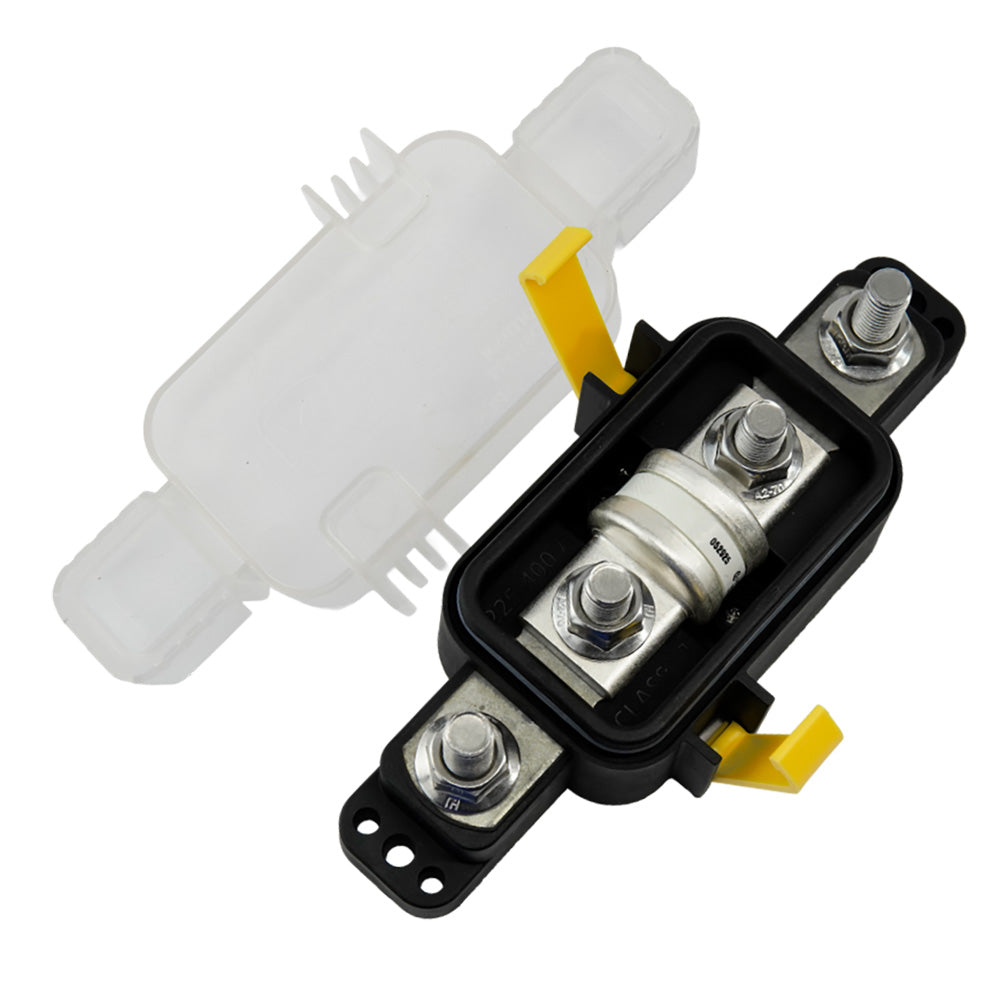

Egis Class T Fuse Block 225-400 A - Sealed - 3912

Egis Class T Fuse Block 225-400 A - Sealed

Class T Fuse Block 225-400 A - Sealed

Applications/Problems This Solves:

• Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself.
• Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats.

Features:

• Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop.
• Stainless Steel Self-Locking Hardware ensures robust connections long-term connection reliability.
• Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.
• 4 Year Warranty

Specifications:

• Maximum Amperage: 225-400A
• Max Voltage: 80 VDC
• Ingress Protection Ratings: IP66, IP67, IP6K9K
• Mounting Holes: 4x #10 (M5) 2x 1/4 (M6)
• Mounting Screw Max Torque: 50 in-lbs (5.5 N-m)
• Busbar Material: Tin-Plated Copper

BRAND: Egis Mobile Electric
Manufacturer Part Number: 3912
