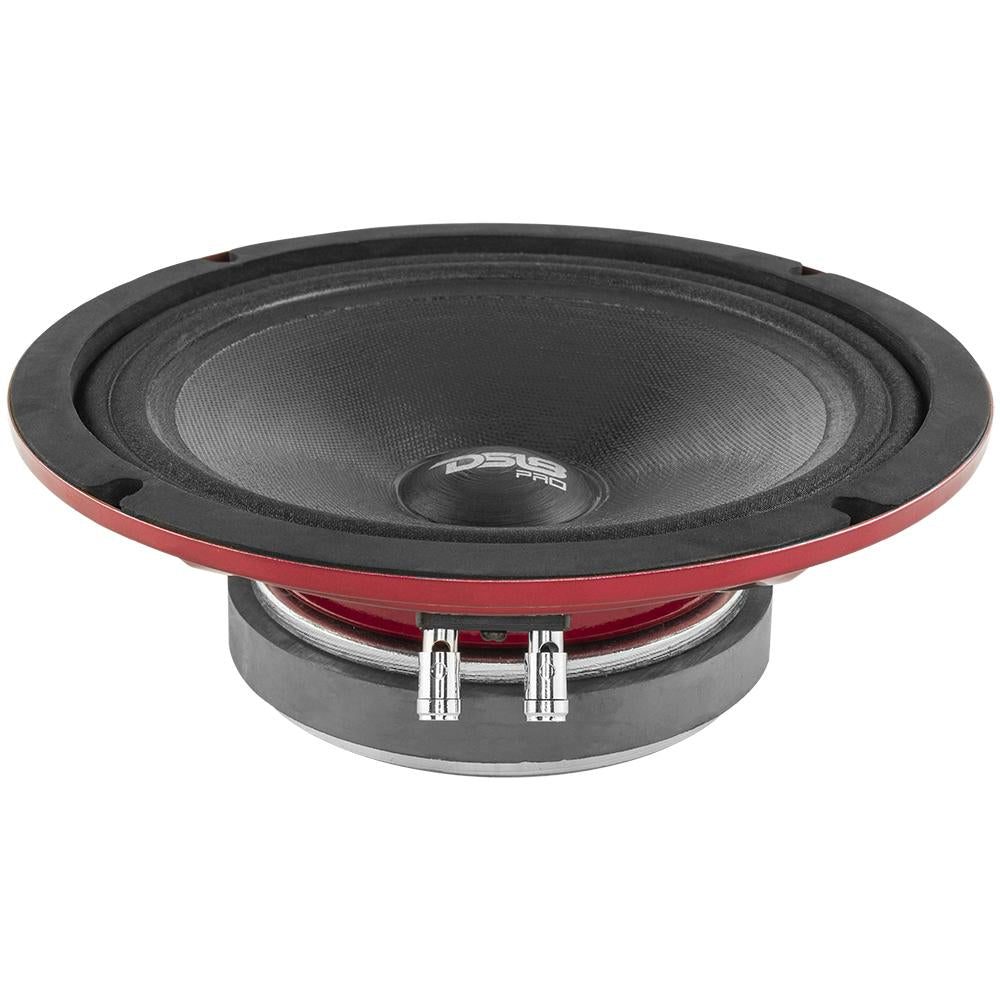

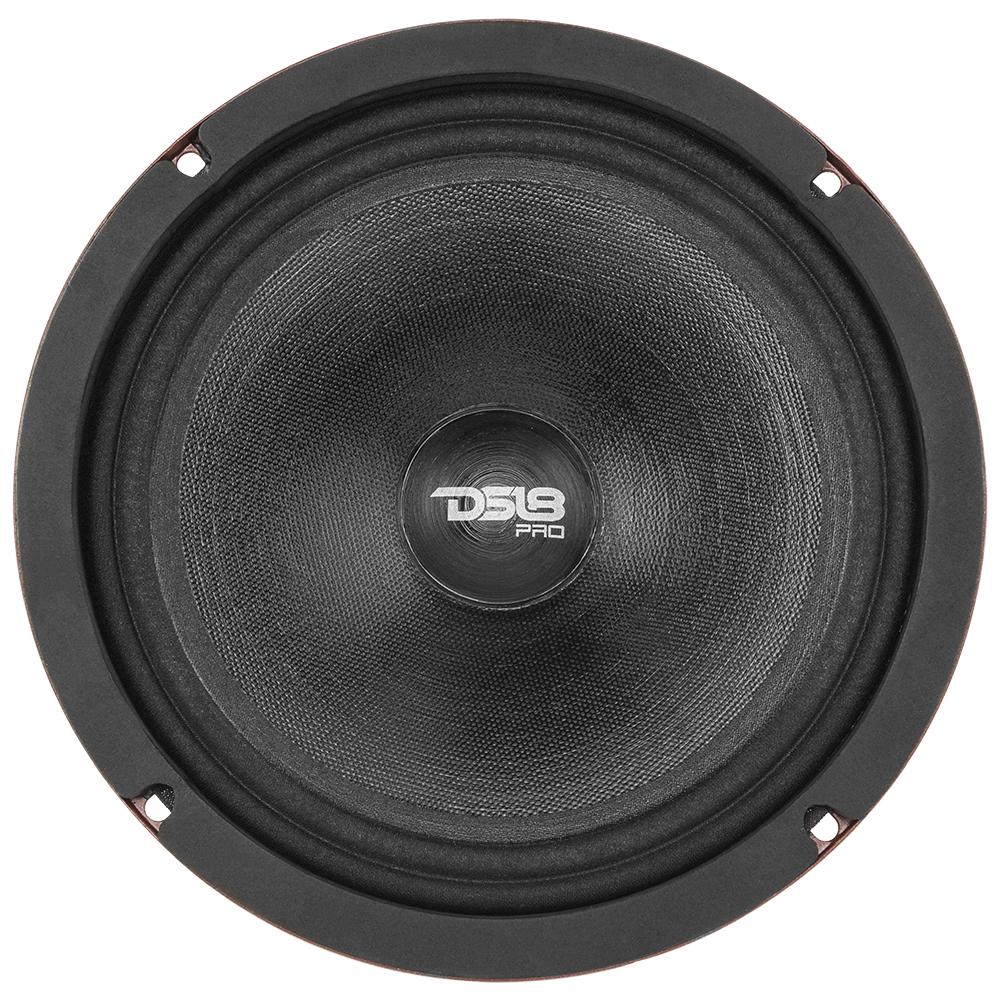

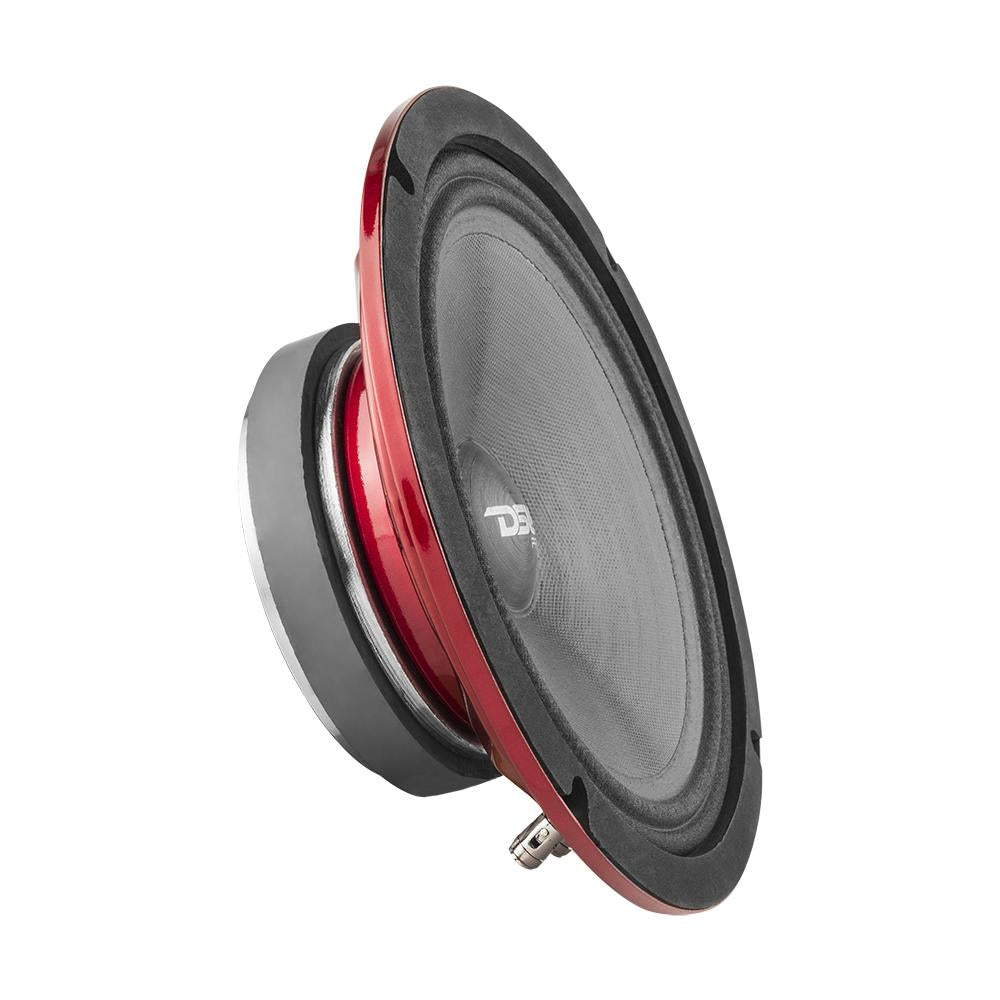

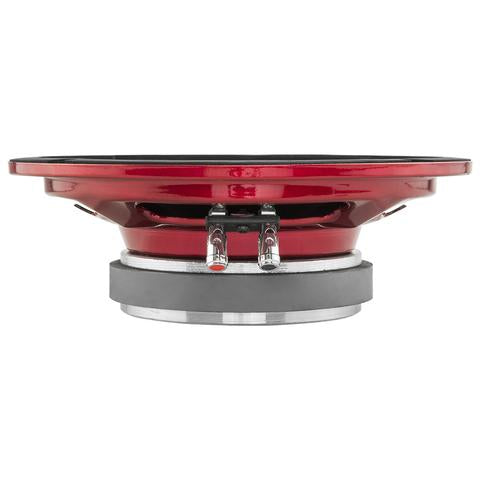

DS18 Slim 8" Motorcycle Midrange Speaker - PRO-SM8.2

DS18 Slim 8" Motorcycle Midrange Speaker

Slim 8" Motorcycle Midrange Speaker

The DS18 Slim midrange speaker was made for the motorcycle music fanatics. IPX6 rating, protecting it from any water that might come along the ride.

Specifications:

• Model: PRO-SM8.2
• Type: Midrange Loudspeaker
• Size: 8"
• RMS Power: 250W
• MAX Power: 500W
• Frequency Response: 65-12kHz
• Impedance: 2 ohm
• Sensitivity: 97dB

Materials:

• Surround: Cloth Edge
• Frame: Red Steel Basket
• Cone: Non-Pressed Paper Cone
• Magnet: Ferrite
• Voice Coil Wire: CCAW

Diameters:

• Voice Coil Size: 1.5"
• Magnet Size: 25 oz
• Mounting Depth: 2.45" (55.5mm)
• Cut-Out Dimension: 6.99" (177.4mm)

Parameters:

• Vas 11.321LTR
• Xmax 8 mm
• Fs 110 Hz
• Qms 3.881
• Qes 0.78
• Qts 0.718
• Re 2 Ohms

Sold as an Individual

BRAND: DS18
Manufacturer Part Number: PRO-SM8.2
