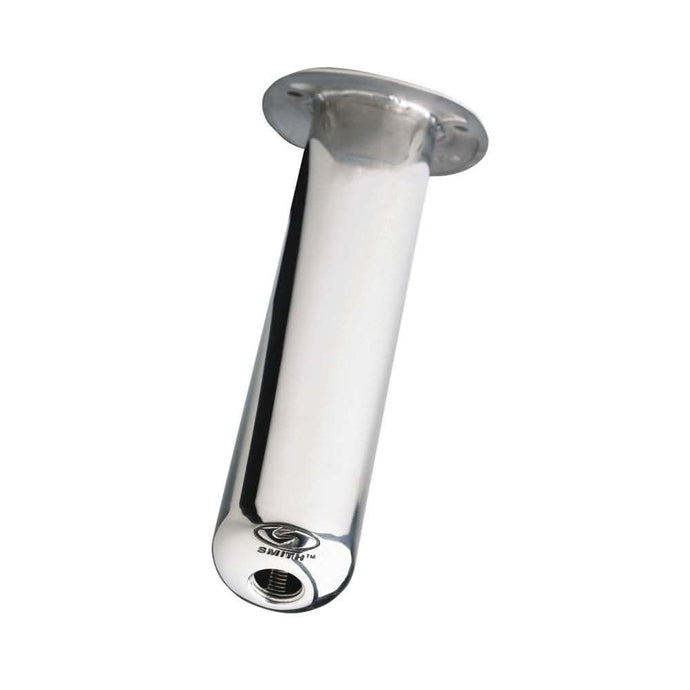

C.E. Smith Flush Mount Rod Holder - 30 Degree 10.5" Deep - 53682CA

Key Performance Features

• 316L Stainless Steel Construction: Forged from low-carbon marine-grade stainless steel for ultimate corrosion resistance. The head is mirror-polished to enhance the look of any cockpit.

• Integrally Cast Gimbal Bar: The gimbal pin at the bottom is not just welded in; it is part of the casting or heavy-duty reinforced to withstand the "pounding" of heavy rods in rough seas.

• White Vinyl Liner: Includes a UV-resistant vinyl liner that protects your expensive rod butts from scratches and prevents "rattle" while underway.

• Super-Deep Profile: The 10.5" depth ensures that even the longest bent-butt rods are seated securely and won't bounce out.

• Integrated Drain: Features a bottom design that allows water to drain out, preventing stagnant saltwater from sitting in the tube and corroding your rod's gimbal.

Technical Specifications

Installation Pro-Tips

• The "Drip Loop": If you are mounting this over a dry storage area, you can attach a drain tube to the bottom nipple to route rainwater and washdown directly into the bilge rather than onto your gear.

• Reinforce the Deck: For high-drag trolling (like using a planer or heavy lead), consider adding a backing plate under the gunwale to spread the load and prevent the fiberglass from cracking.

• Bedding the Flange: Use Sikaflex-291i or a high-quality marine silicone under the flange during installation to prevent water from leaking into the gunwale core.

• Alignment: Use a 2-inch hole saw for the main tube and double-check your 30-degree tilt direction before drilling your three mounting screw holes.

Why Choose the 80 Series (53682CA)?

The 53682CA is the choice for serious offshore anglers who don't want to worry about equipment failure. While the 70 Series is great for general fishing, the 80 Series is beefed up in every dimension. Its ability to be plumbed with a drain hose makes it a "must-have" if you are installing rod holders above expensive electronics or dry tackle lockers.

Installation Pro-Tip:

For maximum security when fishing for big game, we highly recommend using a C.E. Smith 80 Series Backing Plate (53682-BP). Standard washers can concentrate stress on a small area of the fiberglass; a backing plate distributes that load over a much larger surface, preventing gunwale damage during a heavy hit.
