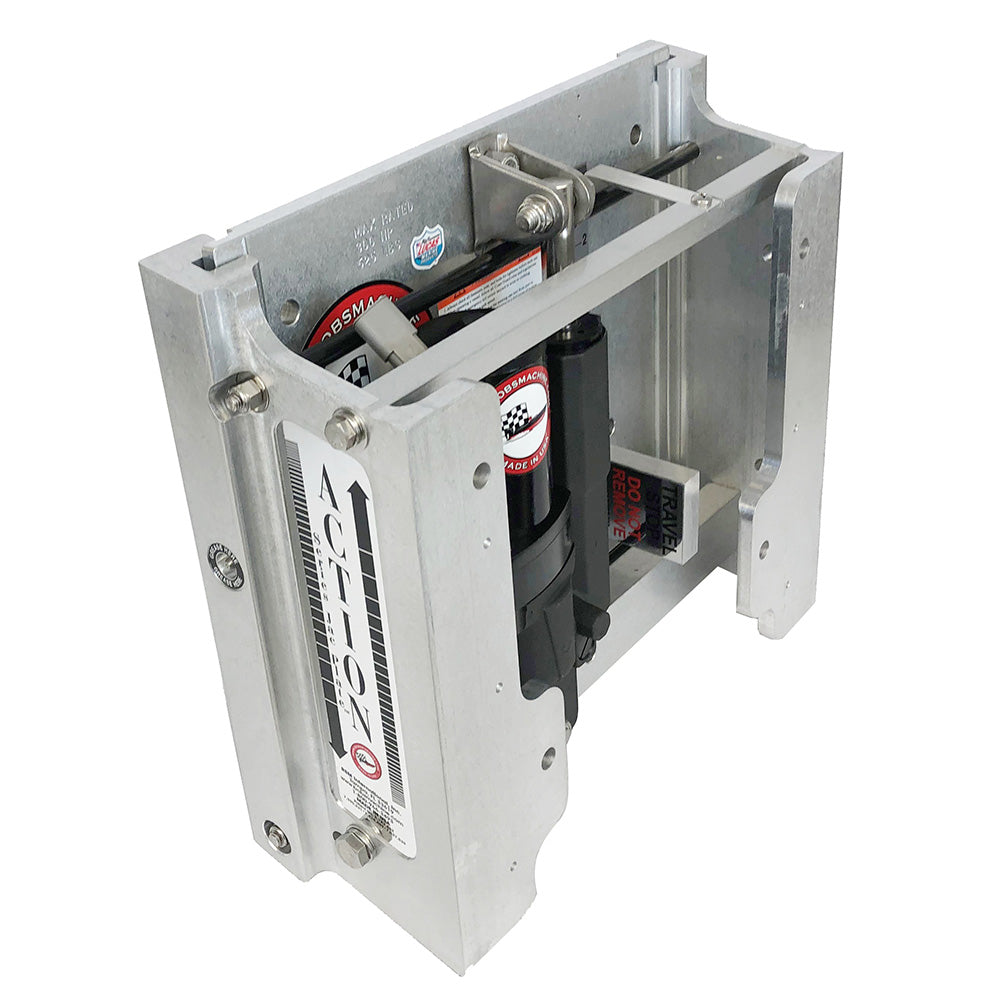

Bob's Machine 6" Setback Action Series Hydraulic Jack Plate - Silver - 100-106010-NOPC-NOSPN-NG

Frequently Asked Questions (FAQs)

1. What is the Bob's Machine Action Series 100-106010-NOPC-NOSPN-NG used for?

The Bob's Machine Action Series is a hydraulic jack plate designed to raise and lower an outboard motor without changing its trim angle. It allows boaters to adjust engine height for improved handling, shallow-water operation, acceleration, and potential running efficiency.

2. How much setback does this Bob's Machine hydraulic jack plate provide?

This model features a 6-inch setback, positioning the outboard motor 6 inches farther behind the boat's transom. This provides additional mounting clearance and flexibility for optimizing engine height.

3. How much vertical lift does the Bob's Machine 6" Action Series provide?

The jack plate provides 6 inches of hydraulic travel plus approximately 1.5 inches of built-in structural lift, giving it a total advertised lift of 7.5 inches.

4. What is the maximum horsepower rating for this jack plate?

The Bob's Machine Action Series 6-inch hydraulic jack plate is rated for compatible outboard motors up to 300 horsepower, subject to the motor's weight and mounting requirements.

5. What is the maximum outboard motor weight supported?

The Action Series is designed to accommodate compatible outboard motors weighing up to 625 pounds. Always verify the boat's transom capacity and the outboard's actual weight before installation.

6. Does the Bob's Machine Action Series include a hydraulic pump?

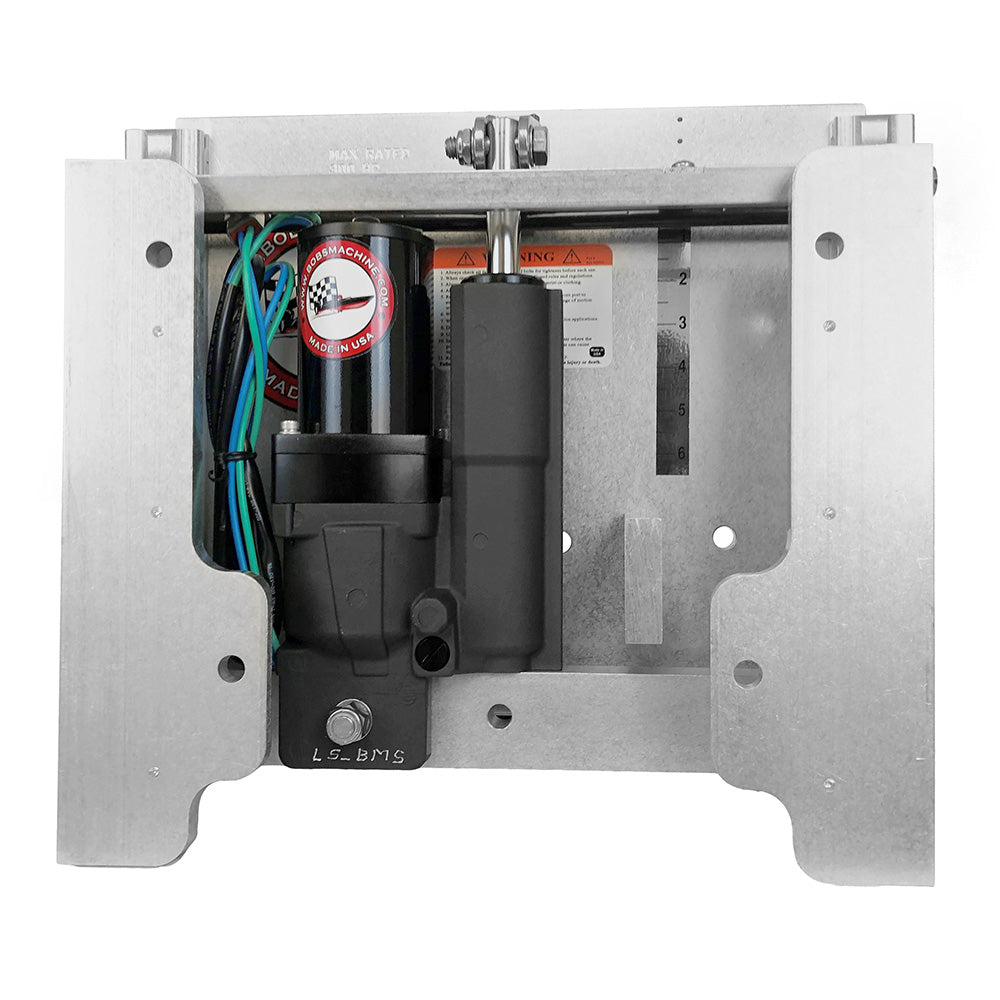

Yes. The Action Series features an integrated hydraulic pump mounted within the jack plate assembly. This eliminates the need for a separate hydraulic pump installed inside the boat.

7. How fast does the Bob's Machine Action Series raise the outboard motor?

Bob's Machine advertises a fast hydraulic lift system capable of raising a compatible outboard in approximately six seconds. Actual movement speed may vary depending on motor weight, electrical supply, and operating conditions.

8. Can this hydraulic jack plate improve boat performance?

Yes. Proper outboard height adjustment can help optimize propeller performance, reduce unnecessary drag, and improve handling. Actual improvements depend on the boat, engine, propeller, loading, and water conditions.

9. Is the Bob's Machine 6" Action Series suitable for bass boats?

Yes. The Action Series is designed for compatible outboard-powered boats, including bass boats, bay boats, flats boats, and other recreational fishing vessels. Verify the boat manufacturer's setback recommendations before installation.

10. Does the Bob's Machine Action Series work with shallow-water anchors?

The Action Series features predrilled mounting locations designed to accommodate compatible shallow-water anchor brackets. Additional brackets and mounting accessories may be required.

11. Does the Bob's Machine Action Series have an internal or external hydraulic pump?

This model features an internal hydraulic pump mounted directly within the jack plate structure. Bob's Machine also states that the system can be converted to an in-boat pump configuration if desired.

12. What is the maximum motor mounting width supported?

The Action Series supports outboard motors with a mounting width of up to 14.5 inches. For wider motor configurations, Bob's Machine recommends its Extreme Series jack plates.

13. How much does the Bob's Machine 6" Action Series jack plate weigh?

Bob's Machine's 2026 catalog lists the 6-inch Action Series at approximately 49 pounds (22 kg). This is the plate weight, not the packaged shipping weight.

14. What comes in the box with the Bob's Machine 100-106010-NOPC-NOSPN-NG?

According to Bob's Machine, the package includes:

• Action Series hydraulic jack plate with integrated pump

• Wiring harness

• Relay assembly

• Rocker-style control switch

Additional mounting hardware or accessories may be required for your boat.

15. Does the Bob's Machine Action Series require hydraulic hoses inside the boat?

No. The integrated pump design eliminates the need for a separate in-boat hydraulic pump and associated long hydraulic hose runs, simplifying the installation.

16. Can the Bob's Machine Action Series be used in saltwater?

Yes, it is designed for marine applications, but proper maintenance is essential. Rinse exposed components with fresh water after saltwater use, inspect electrical connections, and lubricate service points according to the manufacturer's instructions.

17. Does the Bob's Machine Action Series require regular maintenance?

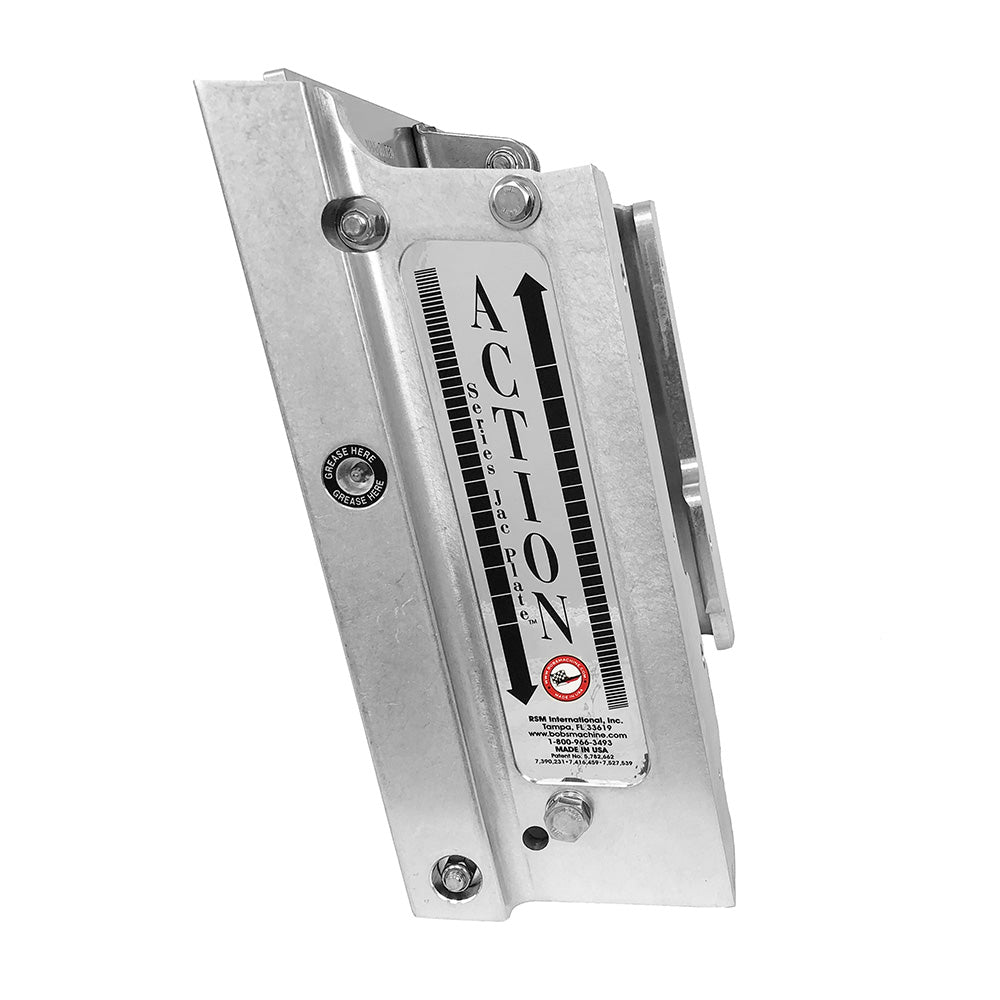

Yes. Recommended maintenance includes inspecting mounting bolts, checking electrical connections, cleaning the jack plate, and lubricating the automotive-style grease fittings according to Bob's Machine's maintenance instructions.

18. Does the Bob's Machine 6" Action Series include a height gauge?

The standard package includes a rocker-style control switch. A height gauge is available on certain configurations, but it should not be assumed to be included with 100-106010-NOPC-NOSPN-NG.

19. What warranty comes with the Bob's Machine Action Series hydraulic jack plate?

Bob's Machine's 2026 catalog lists a limited lifetime structural warranty against qualifying manufacturing defects and a three-year Action Pump warranty. Warranty coverage is subject to the manufacturer's current terms and exclusions.

20. How do I know if the Bob's Machine 100-106010-NOPC-NOSPN-NG is right for my boat?

Confirm that your outboard does not exceed 300 horsepower or 625 pounds, that its mounting width is compatible, and that your boat's transom is rated for the additional leverage created by a 6-inch setback. Also verify steering clearance, mounting dimensions, and electrical requirements before installation.
