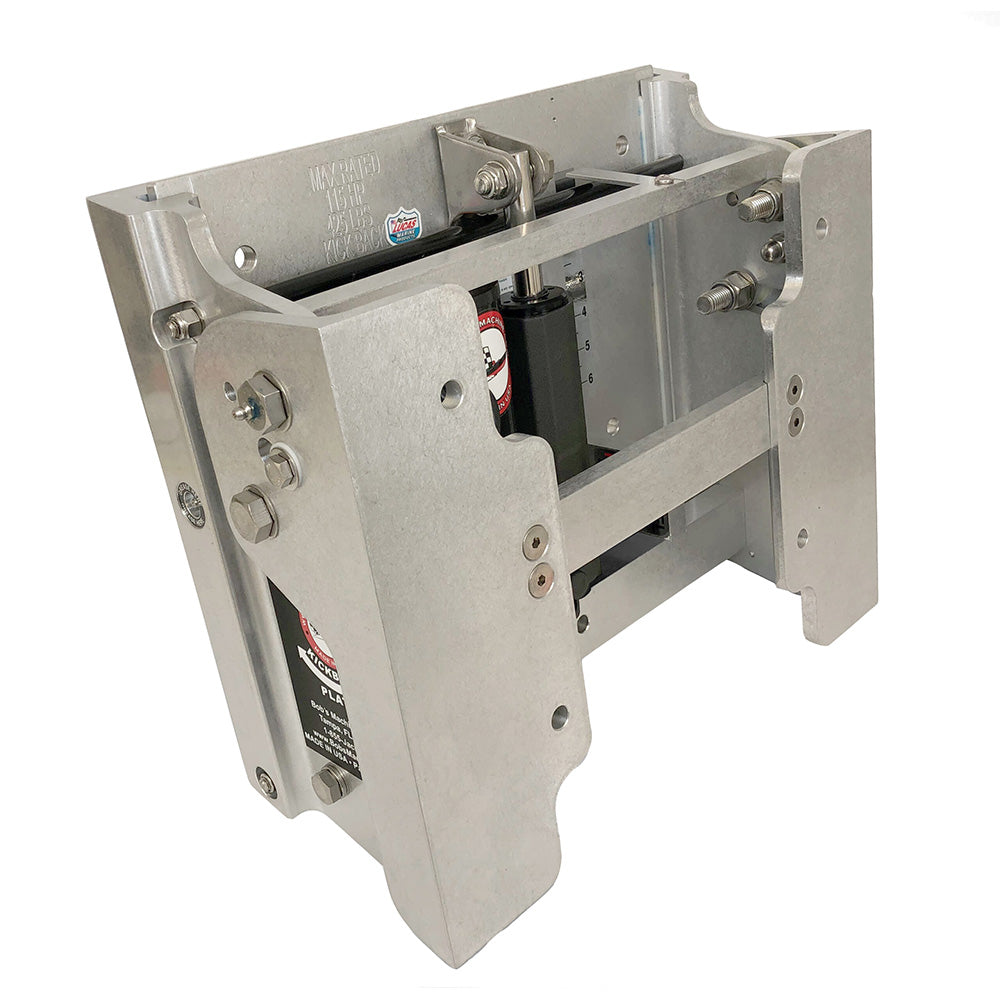

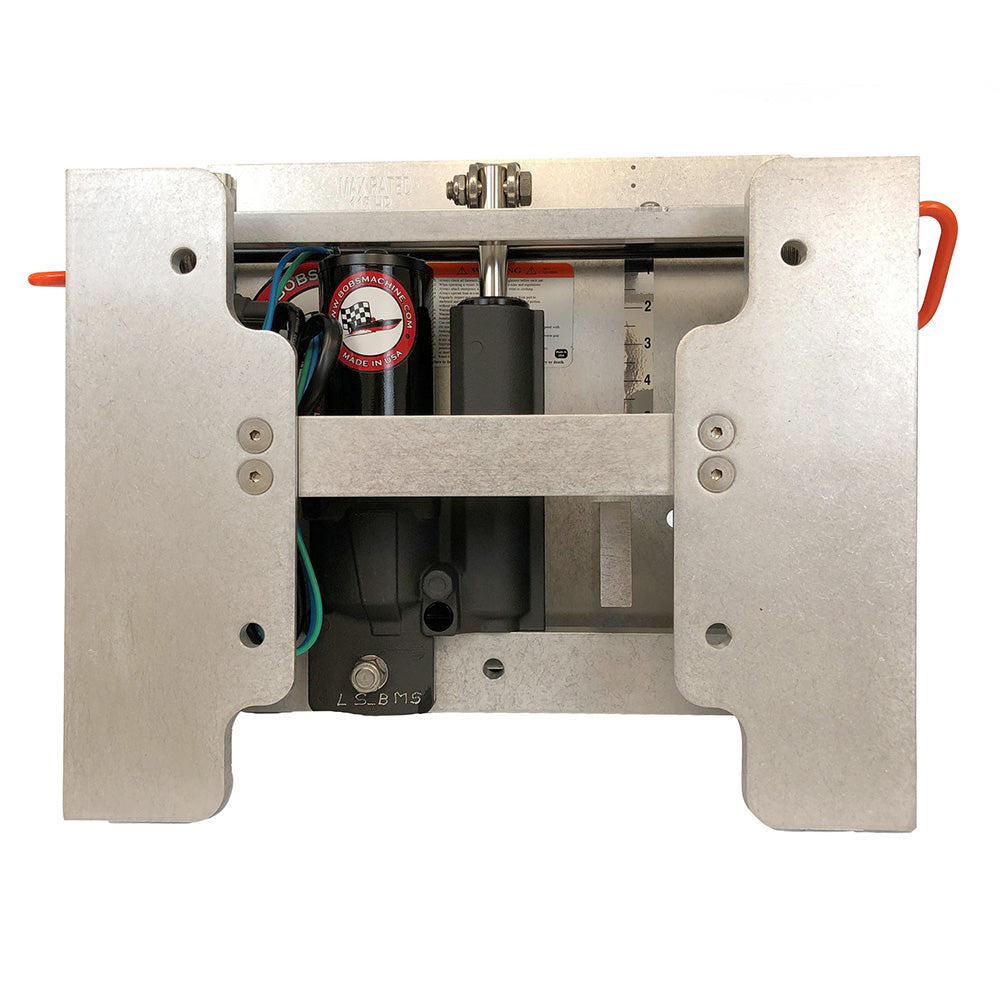

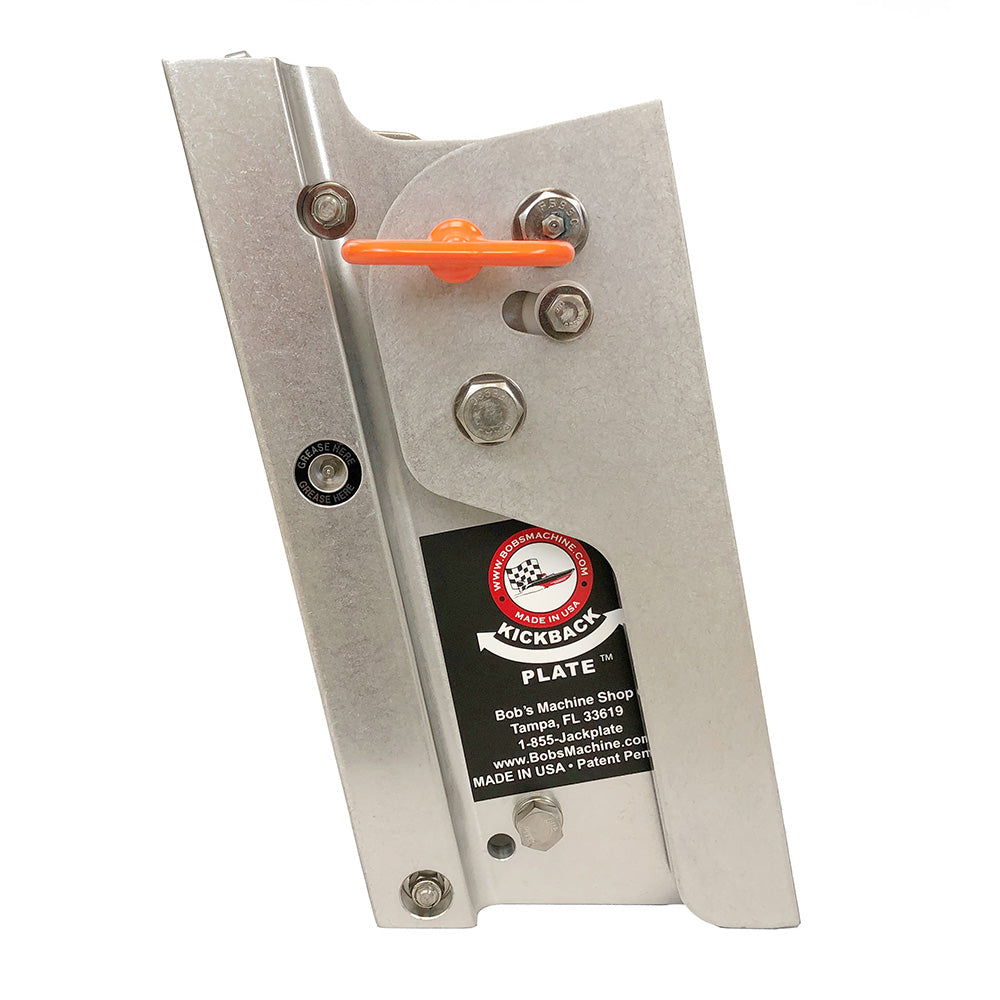

Bob's Machine 6 Hydraulic Action Series Kick-Back Jac - Silver - 100-105100-NOPC
Couldn't load pickup availability
Bob's Machine Hydraulic Action Series Kick-Back Jack Plate combines hydraulic height adjustment with impact-protection functionality for shallow-water boating and demanding outboard applications. Part Number 100-105100-NOPC features 6 inches of hydraulic stroke plus 1.5 inches of built-in structural lift, providing up to 7.5 inches of total lift. The patented Kick-Back design allows the outboard to move back when an underwater obstruction is encountered at low speed, helping reduce the risk of costly lower-unit damage.
Designed for smooth, dependable operation, this silver jack plate uses Delrin rollers, bushings, and bearings throughout the sliding and pivoting components. Greasable pivot points and slide areas with automotive-style Zerk fittings simplify maintenance, while tension rods provide structural support without the need for springs or chains. The 30-degree tilt capability helps improve maneuverability in shallow water and supports convenient motor positioning during operation, trailering, and service.
Locking pins help prevent the plate from kicking out while reversing or trailering, and the integrated motor tether attachment point provides an added safety connection. The Bob's Machine Kick-Back Jack Plate is rated for outboard motors up to 150 horsepower and uses a BIA bolt pattern. It includes a limited lifetime structural warranty against manufacturing defects and a 3-year action pump warranty. For safe operation, do not encounter obstructions above 5 miles per hour or while traveling in reverse.
Features:
- Patented hydraulic Kick-Back jack plate design
- 6 inches of hydraulic setback with 1.5 inches of structural lift
- Up to 7.5 inches of total lift
- Silver finish
- 30-degree tilt capability
- Locking pins help secure the plate during reversing and trailering
- Delrin rollers, bushings, and bearings for smooth operation
- Greasable pivot points and slide plate area with automotive Zerk fittings
- Tension rods provide support without springs or chains
- Integrated motor tether attachment point for safety
- Rated for outboard motors up to 150 horsepower
- BIA bolt pattern
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
Bob's Machine 6 Hydraulic Action Series Kick-Back Jac - Silver
Bob's Machine Hydraulic Action Series Kick-Back Jack Plate combines hydraulic height adjustment with impact-protection functionality for shallow-water boating and demanding outboard applications. Part Number 100-105100-NOPC features 6 inches of hydraulic stroke plus 1.5 inches of built-in structural lift, providing up to 7.5 inches of total lift. The patented Kick-Back design allows the outboard to move back when an underwater obstruction is encountered at low speed, helping reduce the risk of costly lower-unit damage.
Designed for smooth, dependable operation, this silver jack plate uses Delrin rollers, bushings, and bearings throughout the sliding and pivoting components. Greasable pivot points and slide areas with automotive-style Zerk fittings simplify maintenance, while tension rods provide structural support without the need for springs or chains. The 30-degree tilt capability helps improve maneuverability in shallow water and supports convenient motor positioning during operation, trailering, and service.
Locking pins help prevent the plate from kicking out while reversing or trailering, and the integrated motor tether attachment point provides an added safety connection. The Bob's Machine Kick-Back Jack Plate is rated for outboard motors up to 150 horsepower and uses a BIA bolt pattern. It includes a limited lifetime structural warranty against manufacturing defects and a 3-year action pump warranty. For safe operation, do not encounter obstructions above 5 miles per hour or while traveling in reverse.
Features:
- Patented hydraulic Kick-Back jack plate design
- 6 inches of hydraulic setback with 1.5 inches of structural lift
- Up to 7.5 inches of total lift
- Silver finish
- 30-degree tilt capability
- Locking pins help secure the plate during reversing and trailering
- Delrin rollers, bushings, and bearings for smooth operation
- Greasable pivot points and slide plate area with automotive Zerk fittings
- Tension rods provide support without springs or chains
- Integrated motor tether attachment point for safety
- Rated for outboard motors up to 150 horsepower
- BIA bolt pattern
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
BRAND: Bob's Machine
Manufacturer Part Number: 100-105100-NOPC
Bob's Machine 6 Hydraulic Action Series Kick-Back Jac - Silver - 100-105100-NOPC is backordered and will ship as soon as it is back in stock.
