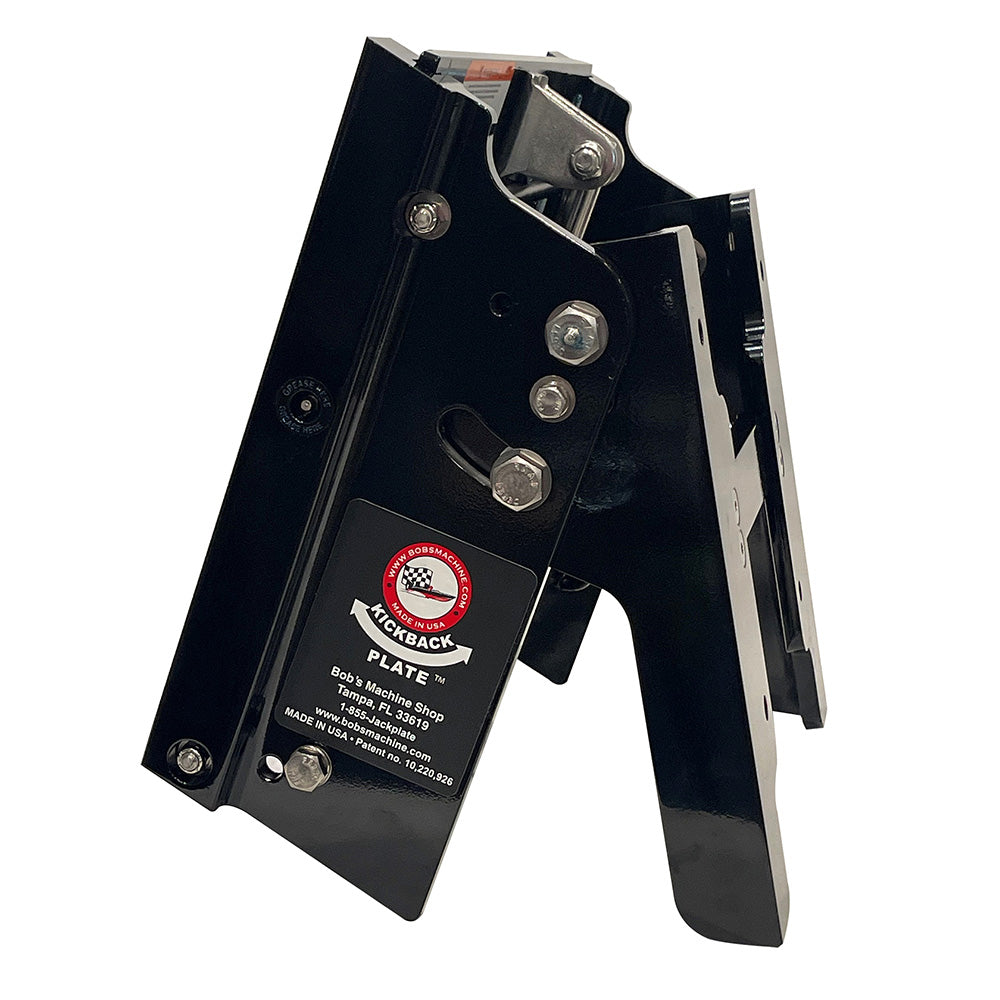

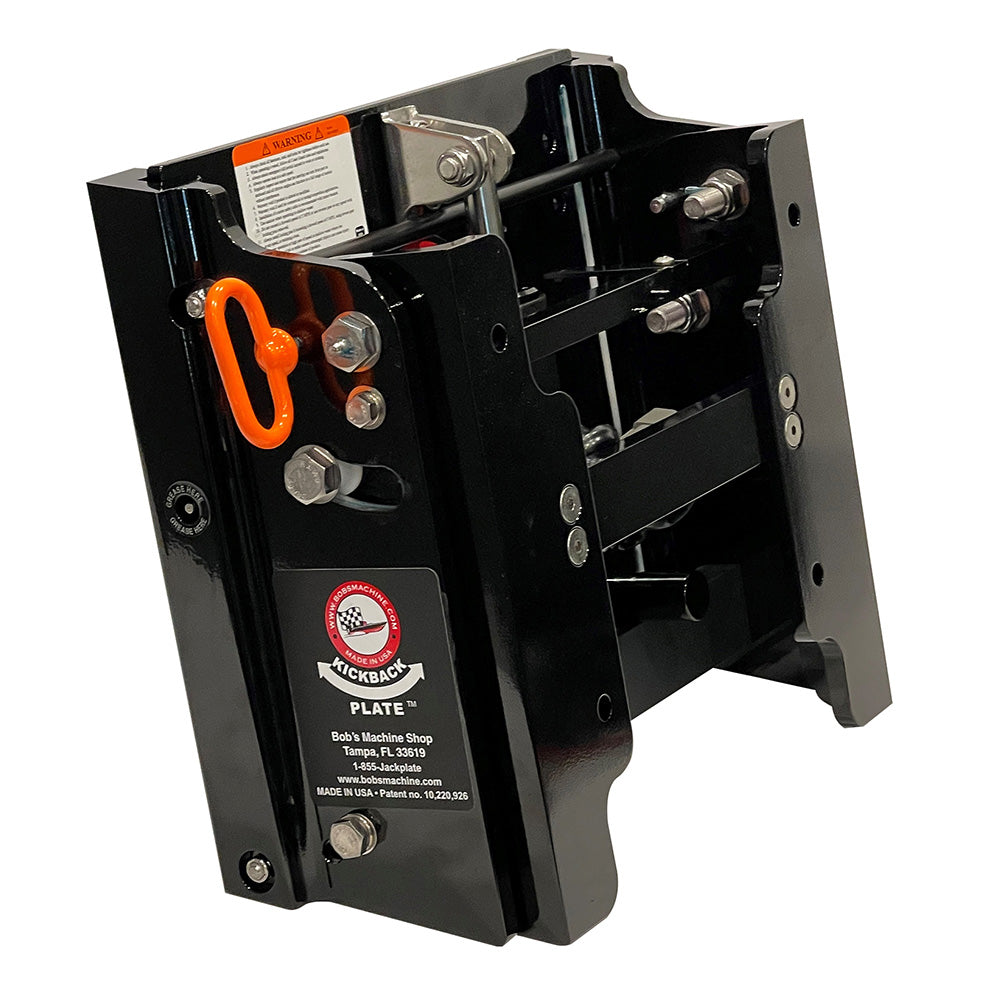

Bob's Machine 6 Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss Black - 100-105100P-PCGB
Couldn't load pickup availability
Bob's Machine Hydraulic Action Series Kick-Back Jack combines a 6-inch hydraulic setback with 1.5 inches of built-in structural lift for 7.5 inches of total lift. Finished in powder-coated gloss black, this patented jack plate is designed to help outboard boat owners navigate shallow water and reduce the risk of lower-unit damage. When an obstruction is encountered at low speed while moving forward, the kick-back design allows the motor to rise and pivot over the object. The Bob's Machine part number for this unit is 100-105100P-PCGB.
Delrin rollers, bushings, and bearings support smooth sliding and pivoting operation without the use of chains or springs. Greaseable pivot points and slide plate areas feature automotive-style zerk fittings for convenient maintenance, while tension rods provide structural support. The plate offers 30 degrees of tilt and includes locking pins to help prevent kick-out during reverse operation or trailering. A dedicated motor tether attachment point adds an additional safety connection.
Rated for outboard motors up to 150 horsepower, the unit uses a BIA bolt pattern and is suitable for compatible marine installations. Its structure is covered by a limited lifetime warranty against manufacturing defects, and the action pump includes a 3-year warranty. The jack plate weighs 48 pounds. For safe operation, do not encounter obstructions at speeds above 5 miles per hour, and use the kick-back function only while moving forward. This product is not designed to encounter obstructions while the boat is traveling in reverse.
Features:
- Patented hydraulic kick-back jack plate design
- 6-inch setback with 1.5 inches of built-in structural lift for 7.5 inches of total lift
- Powder-coated gloss black finish
- Rated for outboard motors up to 150 horsepower
- BIA bolt pattern for compatible installations
- Delrin rollers, bushings, and bearings for smooth operation
- Greaseable pivot points and slide plate area with automotive-style zerk fittings
- 30 degrees of tilt for improved shallow-water maneuverability
- Locking pins help prevent kick-out during reverse operation and trailering
- Tension rods provide additional support without chains or springs
- Motor tether attachment point for added safety
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
- 48-pound unit weight
Bob's Machine 6 Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss Black
Bob's Machine Hydraulic Action Series Kick-Back Jack combines a 6-inch hydraulic setback with 1.5 inches of built-in structural lift for 7.5 inches of total lift. Finished in powder-coated gloss black, this patented jack plate is designed to help outboard boat owners navigate shallow water and reduce the risk of lower-unit damage. When an obstruction is encountered at low speed while moving forward, the kick-back design allows the motor to rise and pivot over the object. The Bob's Machine part number for this unit is 100-105100P-PCGB.
Delrin rollers, bushings, and bearings support smooth sliding and pivoting operation without the use of chains or springs. Greaseable pivot points and slide plate areas feature automotive-style zerk fittings for convenient maintenance, while tension rods provide structural support. The plate offers 30 degrees of tilt and includes locking pins to help prevent kick-out during reverse operation or trailering. A dedicated motor tether attachment point adds an additional safety connection.
Rated for outboard motors up to 150 horsepower, the unit uses a BIA bolt pattern and is suitable for compatible marine installations. Its structure is covered by a limited lifetime warranty against manufacturing defects, and the action pump includes a 3-year warranty. The jack plate weighs 48 pounds. For safe operation, do not encounter obstructions at speeds above 5 miles per hour, and use the kick-back function only while moving forward. This product is not designed to encounter obstructions while the boat is traveling in reverse.
Features:
- Patented hydraulic kick-back jack plate design
- 6-inch setback with 1.5 inches of built-in structural lift for 7.5 inches of total lift
- Powder-coated gloss black finish
- Rated for outboard motors up to 150 horsepower
- BIA bolt pattern for compatible installations
- Delrin rollers, bushings, and bearings for smooth operation
- Greaseable pivot points and slide plate area with automotive-style zerk fittings
- 30 degrees of tilt for improved shallow-water maneuverability
- Locking pins help prevent kick-out during reverse operation and trailering
- Tension rods provide additional support without chains or springs
- Motor tether attachment point for added safety
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
- 48-pound unit weight
BRAND: Bob's Machine
Manufacturer Part Number: 100-105100P-PCGB
