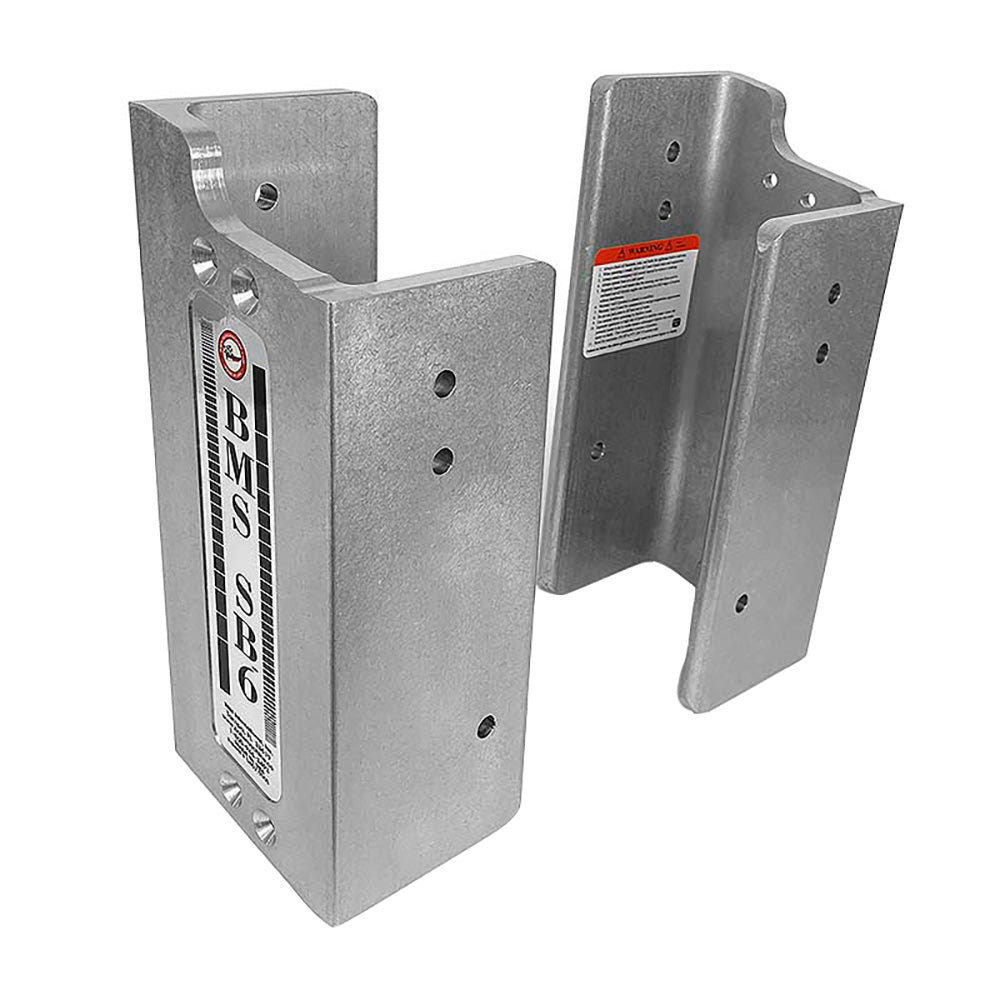

Bob's Machine 6" Fixed Setback Brackets w/1.5" Built-In Lift - Silver - 100-406000-NOPC
Couldn't load pickup availability
Bob's Machine 6-Inch Fixed Setback Brackets with 1.5-Inch Built-In Lift reposition an outboard motor into cleaner water to improve propeller efficiency and reduce propeller slippage. By moving the motor farther from the hull, these silver fixed setback brackets can reduce drag, improve bow lift, and provide a drier, more controlled ride. The increased propeller-to-hull clearance also supports improved maneuverability when operating the boat in reverse.
Manufactured from heavy-duty 5/8-inch-thick 6061-T6 aircraft-grade aluminum, Bob's Machine Part 100-406000-NOPC is engineered for outboard engines producing up to 550 horsepower. The brackets feature an industrial appearance similar to hydraulic jack plates, helping create a consistent, professional look across the transom. Their fixed design delivers a reliable setback solution without the adjustment complexity of a hydraulic system.
Installation is straightforward: remove the outboard motor, attach the brackets directly to the transom using the existing mounting holes, and remount the motor to the brackets. Compatibility with standard BIA bolt patterns eliminates the need to plug and re-glass the original holes. Two sets of pre-drilled mounting holes allow for different engine height positions, helping boaters optimize motor placement for their hull and performance requirements.
These brackets are designed for direct installation between the transom and motor and are not intended for use as spacers. For additional setback beyond the bracket design, select a no-lift version. With robust construction, built-in lift, and broad compatibility with standard outboard mounting patterns, Bob's Machine fixed setback brackets can contribute to improved fuel economy, stronger top speed, and more efficient overall boat operation.
Features:
- Fixed setback brackets rated for outboard engines up to 550 horsepower
- Includes 1.5 inches of built-in lift
- Constructed from heavy-duty 5/8-inch-thick 6061-T6 aircraft-grade aluminum
- Designed for direct installation between the transom and motor; not intended for use as a spacer
- Compatible with standard BIA outboard motor bolt patterns
- Two sets of pre-drilled mounting holes provide engine height adjustment options
- Silver finish with an industrial appearance similar to hydraulic jack plates
- Helps improve propeller efficiency, reduce drag and slippage, and enhance reverse operation
Bob's Machine 6" Fixed Setback Brackets w/1.5" Built-In Lift - Silver
Bob's Machine 6-Inch Fixed Setback Brackets with 1.5-Inch Built-In Lift reposition an outboard motor into cleaner water to improve propeller efficiency and reduce propeller slippage. By moving the motor farther from the hull, these silver fixed setback brackets can reduce drag, improve bow lift, and provide a drier, more controlled ride. The increased propeller-to-hull clearance also supports improved maneuverability when operating the boat in reverse.
Manufactured from heavy-duty 5/8-inch-thick 6061-T6 aircraft-grade aluminum, Bob's Machine Part 100-406000-NOPC is engineered for outboard engines producing up to 550 horsepower. The brackets feature an industrial appearance similar to hydraulic jack plates, helping create a consistent, professional look across the transom. Their fixed design delivers a reliable setback solution without the adjustment complexity of a hydraulic system.
Installation is straightforward: remove the outboard motor, attach the brackets directly to the transom using the existing mounting holes, and remount the motor to the brackets. Compatibility with standard BIA bolt patterns eliminates the need to plug and re-glass the original holes. Two sets of pre-drilled mounting holes allow for different engine height positions, helping boaters optimize motor placement for their hull and performance requirements.
These brackets are designed for direct installation between the transom and motor and are not intended for use as spacers. For additional setback beyond the bracket design, select a no-lift version. With robust construction, built-in lift, and broad compatibility with standard outboard mounting patterns, Bob's Machine fixed setback brackets can contribute to improved fuel economy, stronger top speed, and more efficient overall boat operation.
Features:
- Fixed setback brackets rated for outboard engines up to 550 horsepower
- Includes 1.5 inches of built-in lift
- Constructed from heavy-duty 5/8-inch-thick 6061-T6 aircraft-grade aluminum
- Designed for direct installation between the transom and motor; not intended for use as a spacer
- Compatible with standard BIA outboard motor bolt patterns
- Two sets of pre-drilled mounting holes provide engine height adjustment options
- Silver finish with an industrial appearance similar to hydraulic jack plates
- Helps improve propeller efficiency, reduce drag and slippage, and enhance reverse operation
BRAND: Bob's Machine
Manufacturer Part Number: 100-406000-NOPC
Bob's Machine 6" Fixed Setback Brackets w/1.5" Built-In Lift - Silver - 100-406000-NOPC is backordered and will ship as soon as it is back in stock.
