Bob's Machine 4-Inch Setback Action Series Hydraulic Jack Plate – Silver

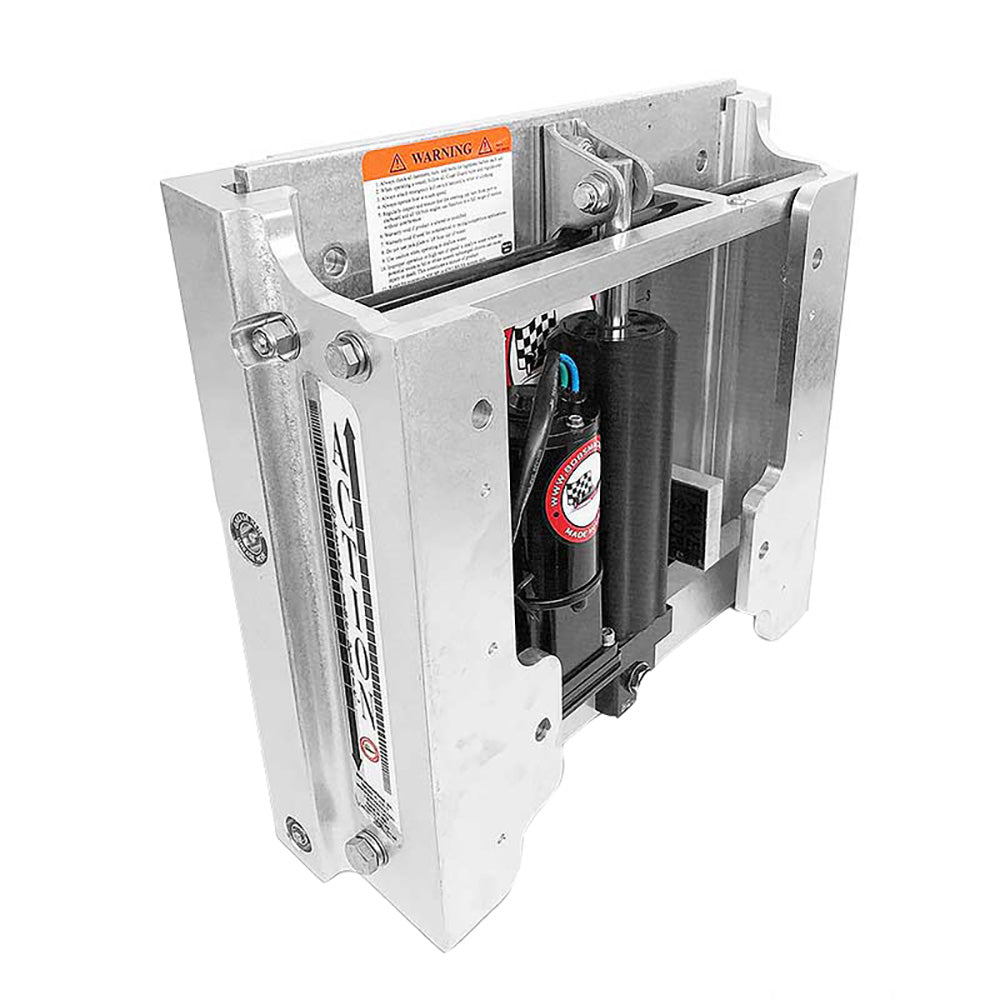

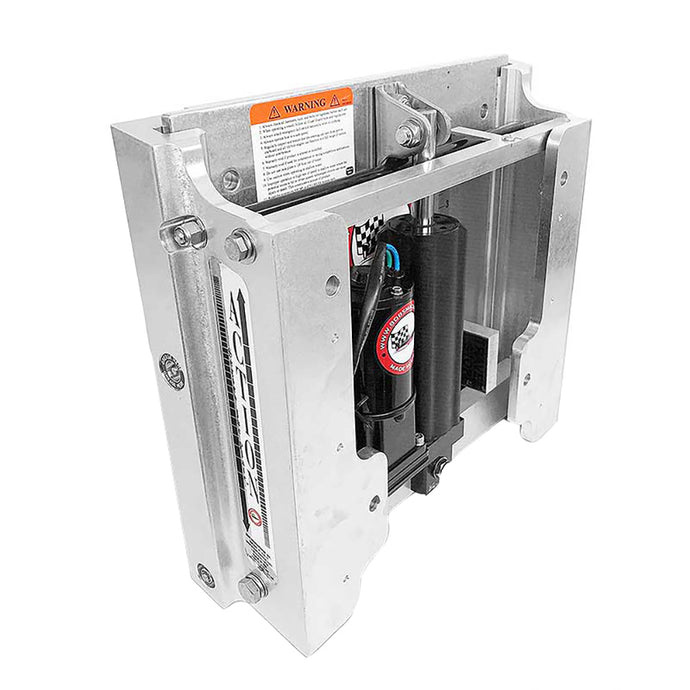

The Bob's Machine Action Series Hydraulic Jack Plate combines integrated hydraulic power with a streamlined one-piece design for efficient boat rigging and reliable outboard adjustment. Unlike jack plates that require separate setback spacers, this model provides a built-in 4-inch setback while placing the hydraulic pump inside the jack plate structure. This space-saving configuration helps reduce clutter inside the boat and can simplify installation for OEM and replacement applications.

A powerful internal motor delivers fast, dependable lifting performance for heavy outboards, while the plate incorporates Bob's Machine design features, including automotive-style grease fittings in the side rails and tension rods for added serviceability and support. The jack plate provides 1.5 inches of structural lift plus 6 inches of adjustable travel, delivering 7.5 inches of total lift. It is rated for outboards up to 300 horsepower and 625 pounds; heavier applications should use the Extreme Series. Action Series models support motor mounting widths up to 14.5 inches.

Part number 100-104101-NOPC-NOSPN-NG includes the hydraulic jack plate, wiring harness, relays, and rocker-style switch. The structure is backed by a limited lifetime warranty against manufacturing defects, while the Action pump includes a 3-year warranty. The jack plate can also be converted for installations where the pump is mounted inside the boat, providing flexibility for future rigging changes. Pre-drilled mounting provisions support dual side-mount Power-Pole brackets.

Features:

• Integrated hydraulic pump housed inside the jack plate structure
• 4-inch built-in setback with one-piece construction
• 1.5 inches of structural lift plus 6 inches of adjustable travel for 7.5 inches of total lift
• Powerful internal motor designed to lift heavy outboards under full power
• Supports outboards up to 300 horsepower and 625 pounds
• Compatible with motor mounting widths up to 14.5 inches
• Automotive-style grease fittings for convenient lubrication
• Tension rods for added support and stability
• Convertible design allows the pump to be relocated inside the boat
• Pre-drilled for dual side-mount Power-Pole brackets
• Includes wiring harness, relays, and rocker-style switch
• Limited lifetime structural warranty against manufacturing defects
• 3-year Action pump warranty

BRAND: Bob's Machine
Manufacturer Part Number: 100-104101-NOPC-NOSPN-NG
