Bob's Machine 4" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-104101P-PCGBLK-NOSPN-NG
Couldn't load pickup availability

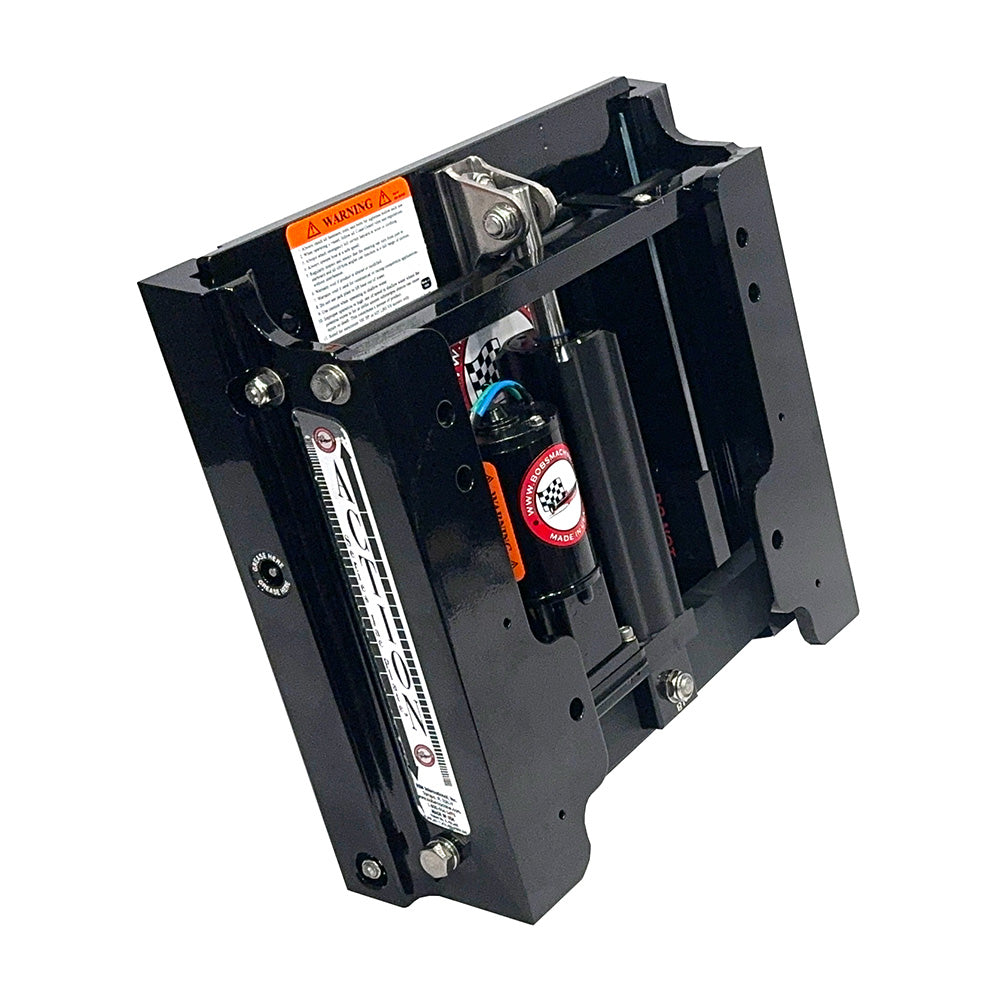

Bob's Machine 4-Inch Setback Action Series Hydraulic Jack Plate - Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate brings integrated hydraulic performance and simplified rigging to outboard-powered boats. Its internal pump is built directly into the jack plate structure, eliminating the need to install a separate pump inside the boat and helping preserve valuable storage space. This design can also save installation time for boat builders, marine technicians, and boat owners.
A powerful internal motor provides responsive lifting performance for heavy outboards, while the one-piece construction delivers a clean, durable installation without requiring separate setback spacers. The 4-inch setback configuration supports engines with mounting widths up to 14.5 inches. For wider mounting applications, Bob's Machine recommends the Extreme Gen 3 Series. The Action Series also incorporates proven Bob's Machine design features, including automotive-style grease fittings in the side rails, tension rods, and a structure engineered for dependable use.
This hydraulic jack plate includes a wiring harness, relays, and rocker-style switch for installation. It is rated for outboards up to 300 horsepower and 625 pounds; heavier engines should use the Extreme Series. The plate includes built-in lift and adjustable travel for a total of 7.5 inches of lift, and it is pre-drilled for dual side-mount Power-Pole brackets. The internal pump can be converted to an in-boat configuration if your rigging preferences change. Bob's Machine backs the structure with a limited lifetime warranty against manufacturing defects and includes a 3-year Action pump warranty.
Features:
- Integrated hydraulic pump built into the jack plate structure
- 4-inch setback with one-piece construction
- Gloss black finish
- 46-pound plate weight
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor designed to lift heavy outboards under full power
- Convertible pump configuration for installation inside the boat
- Automotive-style grease fittings for convenient lubrication
- Tension rods for added structural support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
Bob's Machine 4" Setback Action Series Hydraulic Jack Plate - Gloss Black
Bob's Machine 4-Inch Setback Action Series Hydraulic Jack Plate - Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate brings integrated hydraulic performance and simplified rigging to outboard-powered boats. Its internal pump is built directly into the jack plate structure, eliminating the need to install a separate pump inside the boat and helping preserve valuable storage space. This design can also save installation time for boat builders, marine technicians, and boat owners.
A powerful internal motor provides responsive lifting performance for heavy outboards, while the one-piece construction delivers a clean, durable installation without requiring separate setback spacers. The 4-inch setback configuration supports engines with mounting widths up to 14.5 inches. For wider mounting applications, Bob's Machine recommends the Extreme Gen 3 Series. The Action Series also incorporates proven Bob's Machine design features, including automotive-style grease fittings in the side rails, tension rods, and a structure engineered for dependable use.
This hydraulic jack plate includes a wiring harness, relays, and rocker-style switch for installation. It is rated for outboards up to 300 horsepower and 625 pounds; heavier engines should use the Extreme Series. The plate includes built-in lift and adjustable travel for a total of 7.5 inches of lift, and it is pre-drilled for dual side-mount Power-Pole brackets. The internal pump can be converted to an in-boat configuration if your rigging preferences change. Bob's Machine backs the structure with a limited lifetime warranty against manufacturing defects and includes a 3-year Action pump warranty.
Features:
- Integrated hydraulic pump built into the jack plate structure
- 4-inch setback with one-piece construction
- Gloss black finish
- 46-pound plate weight
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor designed to lift heavy outboards under full power
- Convertible pump configuration for installation inside the boat
- Automotive-style grease fittings for convenient lubrication
- Tension rods for added structural support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
BRAND: Bob's Machine
Manufacturer Part Number: 100-104101P-PCGBLK-NOSPN-NG
