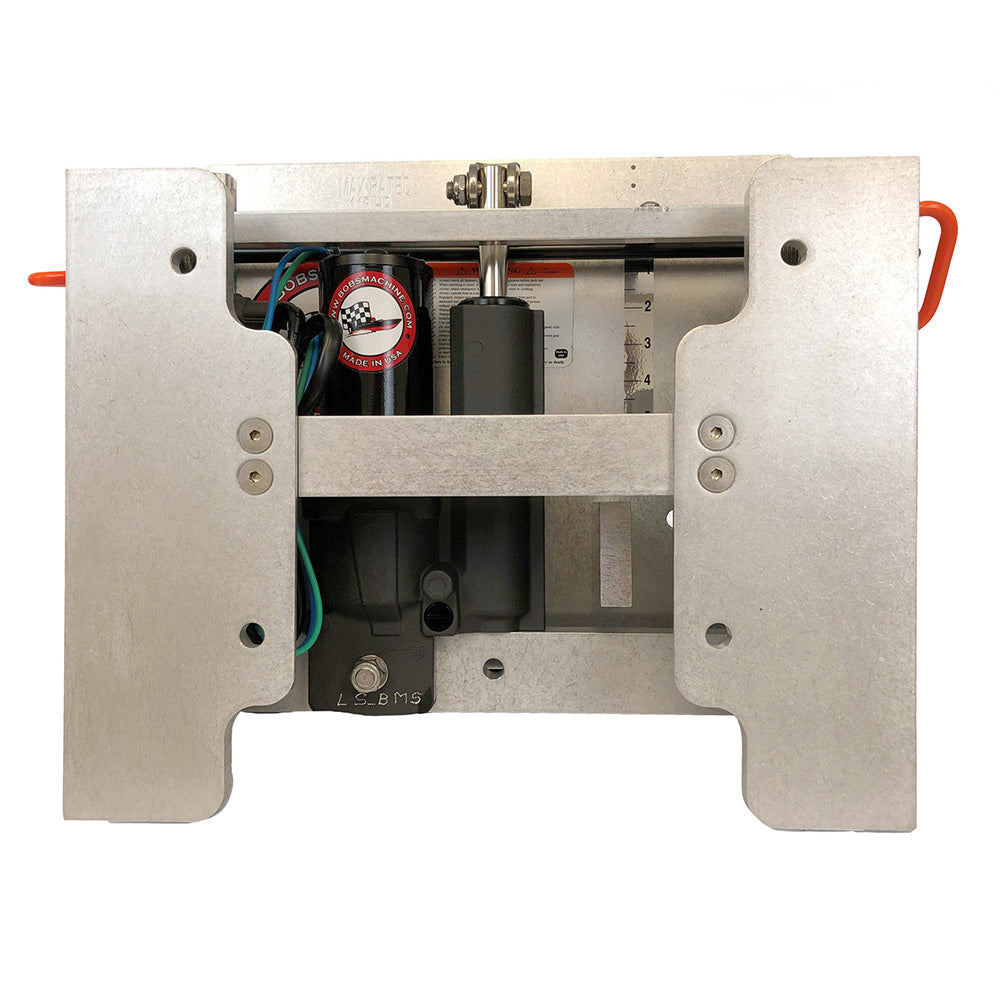

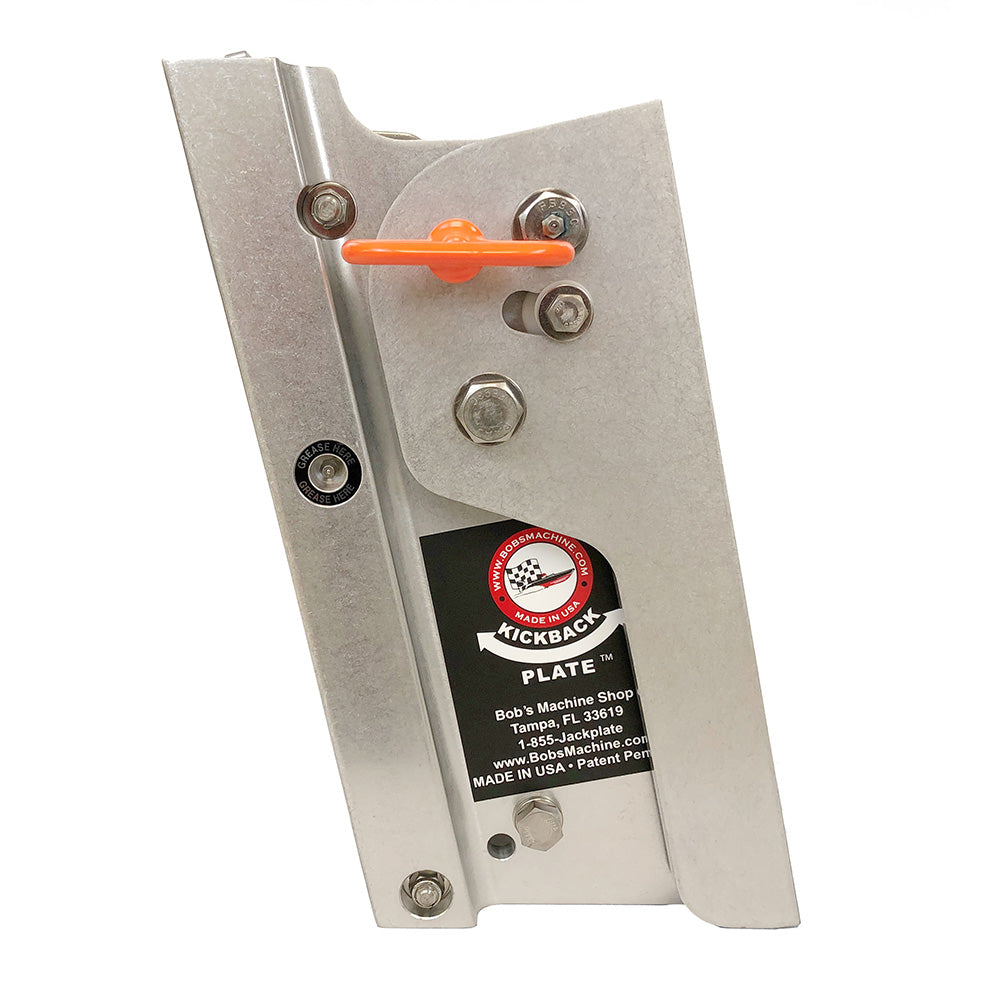

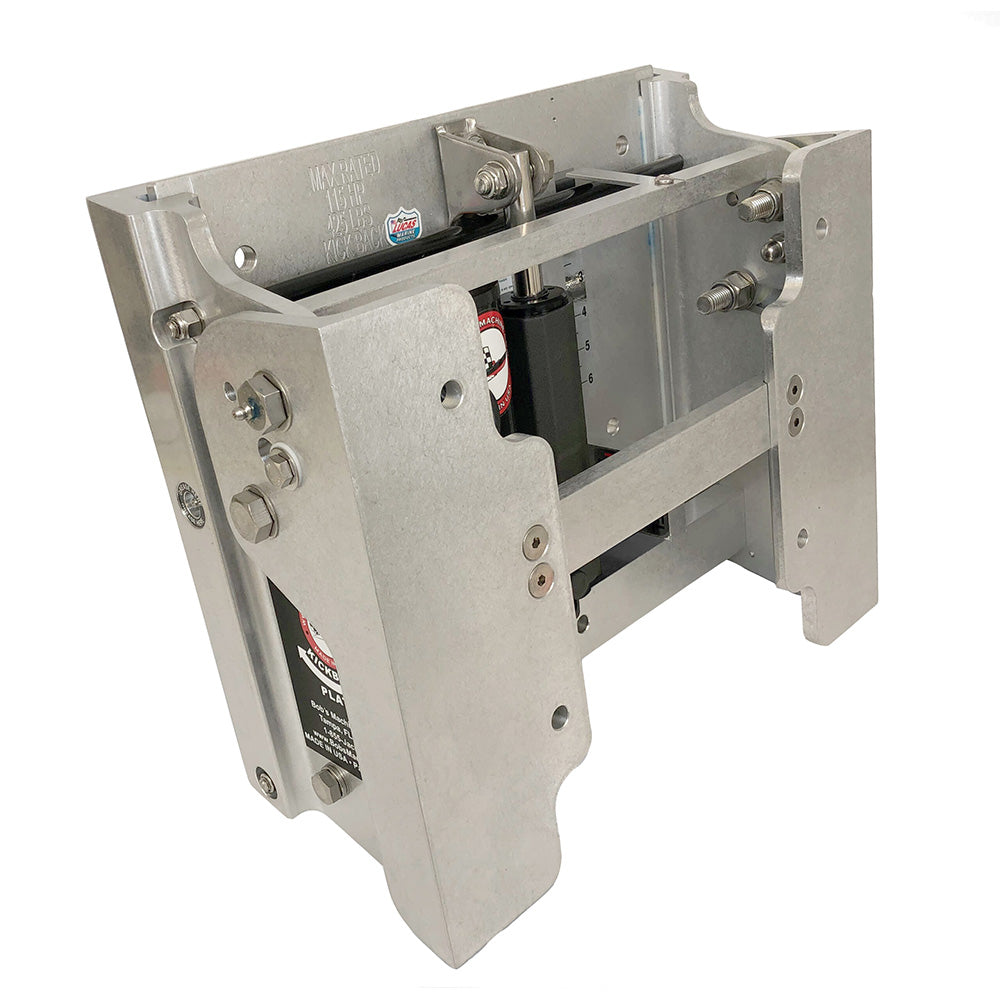

Bob's Machine 4-Inch Hydraulic Action Series Kick-Back Jack Plate – Silver
The Bob's Machine Hydraulic Action Series Kick-Back Jack Plate combines hydraulic height adjustment with protective kick-back functionality for outboard boats. Part number 100-105102-NOPC features 6 inches of hydraulic stroke and 1.5 inches of built-in structural lift, providing a total adjustment range of 7.5 inches. The patented design helps you navigate shallow water and allows the outboard to kick back when an underwater obstruction is encountered, helping reduce the risk of costly lower-unit damage. Use the system only in forward direction at speeds of 5 mph or less when encountering obstructions.
Delrin rollers, bushings, and bearings support smooth sliding and pivoting operation without the need for springs or chains. Tension rods, greasable pivot points, automotive-style grease fittings, and a dedicated motor tether attachment point contribute to dependable performance and safe operation. Locking pins help prevent the plate from kicking out while operating in reverse or trailering, while the 30-degree tilt capability adds flexibility during installation and use. The jack plate uses a BIA bolt pattern and is rated for outboard motors up to 150 horsepower.
This silver Bob's Machine jack plate is designed for boaters who want hydraulic adjustment and added protection in one integrated system. It is backed by a limited lifetime structural warranty against manufacturing defects and a 3-year action pump warranty. Do not use the unit to encounter obstructions while operating in reverse, and follow all installation, operating, and safety instructions before use.
Features:
- Patented hydraulic kick-back jack plate design
- 4-inch setback for outboard positioning
- 6 inches of hydraulic stroke plus 1.5 inches of structural lift
- 7.5 inches of total lift adjustment
- Locking pins help prevent kick-out during reverse operation and trailering
- Delrin rollers, bushings, and bearings provide smooth movement
- Greaseable pivot points and slide plate area with automotive-style grease fittings
- Tension rods provide structural support without springs or chains
- 30-degree tilt capability
- Motor tether attachment point for added safety
- BIA bolt pattern
- Rated for outboard motors up to 150 horsepower
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
- Silver finish
Bob's Machine 4 Hydraulic Action Series Kick-Back Jac - Silver
Bob's Machine 4-Inch Hydraulic Action Series Kick-Back Jack Plate – Silver
The Bob's Machine Hydraulic Action Series Kick-Back Jack Plate combines hydraulic height adjustment with protective kick-back functionality for outboard boats. Part number 100-105102-NOPC features 6 inches of hydraulic stroke and 1.5 inches of built-in structural lift, providing a total adjustment range of 7.5 inches. The patented design helps you navigate shallow water and allows the outboard to kick back when an underwater obstruction is encountered, helping reduce the risk of costly lower-unit damage. Use the system only in forward direction at speeds of 5 mph or less when encountering obstructions.
Delrin rollers, bushings, and bearings support smooth sliding and pivoting operation without the need for springs or chains. Tension rods, greasable pivot points, automotive-style grease fittings, and a dedicated motor tether attachment point contribute to dependable performance and safe operation. Locking pins help prevent the plate from kicking out while operating in reverse or trailering, while the 30-degree tilt capability adds flexibility during installation and use. The jack plate uses a BIA bolt pattern and is rated for outboard motors up to 150 horsepower.
This silver Bob's Machine jack plate is designed for boaters who want hydraulic adjustment and added protection in one integrated system. It is backed by a limited lifetime structural warranty against manufacturing defects and a 3-year action pump warranty. Do not use the unit to encounter obstructions while operating in reverse, and follow all installation, operating, and safety instructions before use.
Features:
- Patented hydraulic kick-back jack plate design
- 4-inch setback for outboard positioning
- 6 inches of hydraulic stroke plus 1.5 inches of structural lift
- 7.5 inches of total lift adjustment
- Locking pins help prevent kick-out during reverse operation and trailering
- Delrin rollers, bushings, and bearings provide smooth movement
- Greaseable pivot points and slide plate area with automotive-style grease fittings
- Tension rods provide structural support without springs or chains
- 30-degree tilt capability
- Motor tether attachment point for added safety
- BIA bolt pattern
- Rated for outboard motors up to 150 horsepower
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
- Silver finish
BRAND: Bob's Machine
Manufacturer Part Number: 100-105102-NOPC
