Bob's Machine 4 Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss Black - 100-105102P-PCGBLK
Couldn't load pickup availability

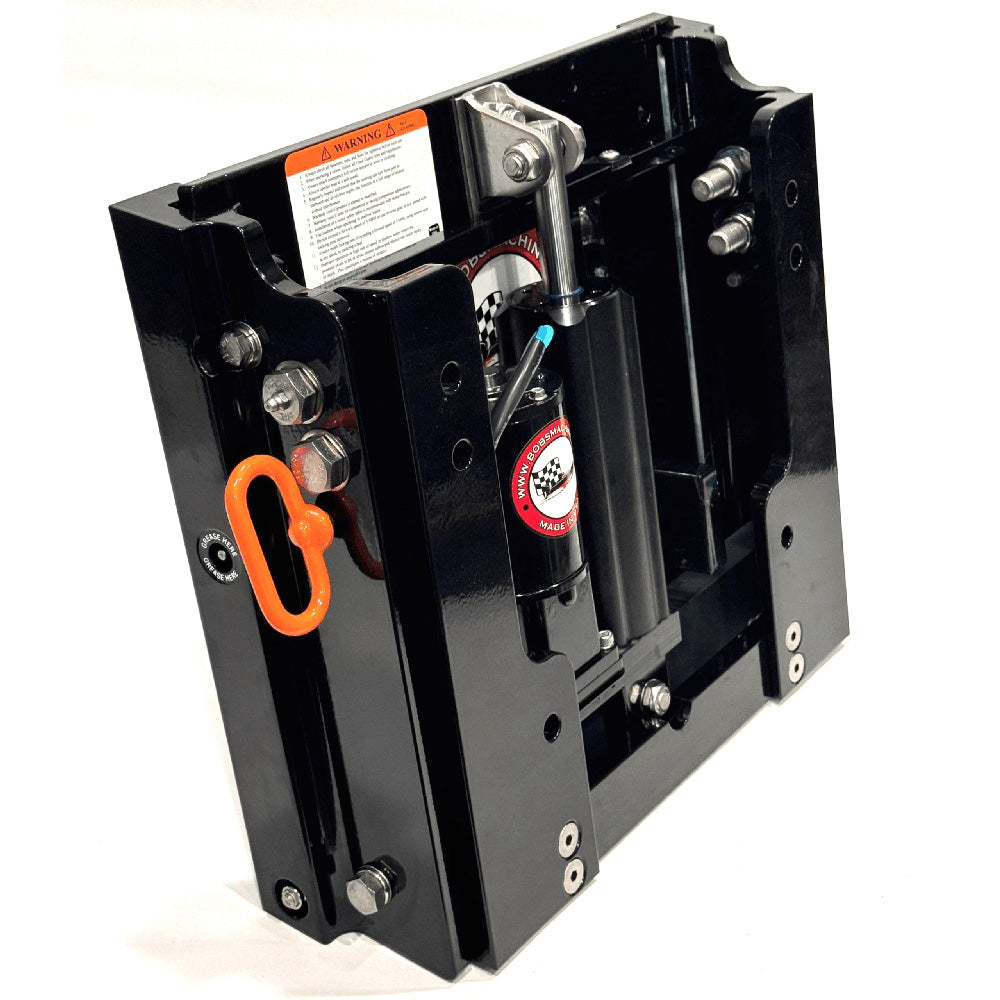

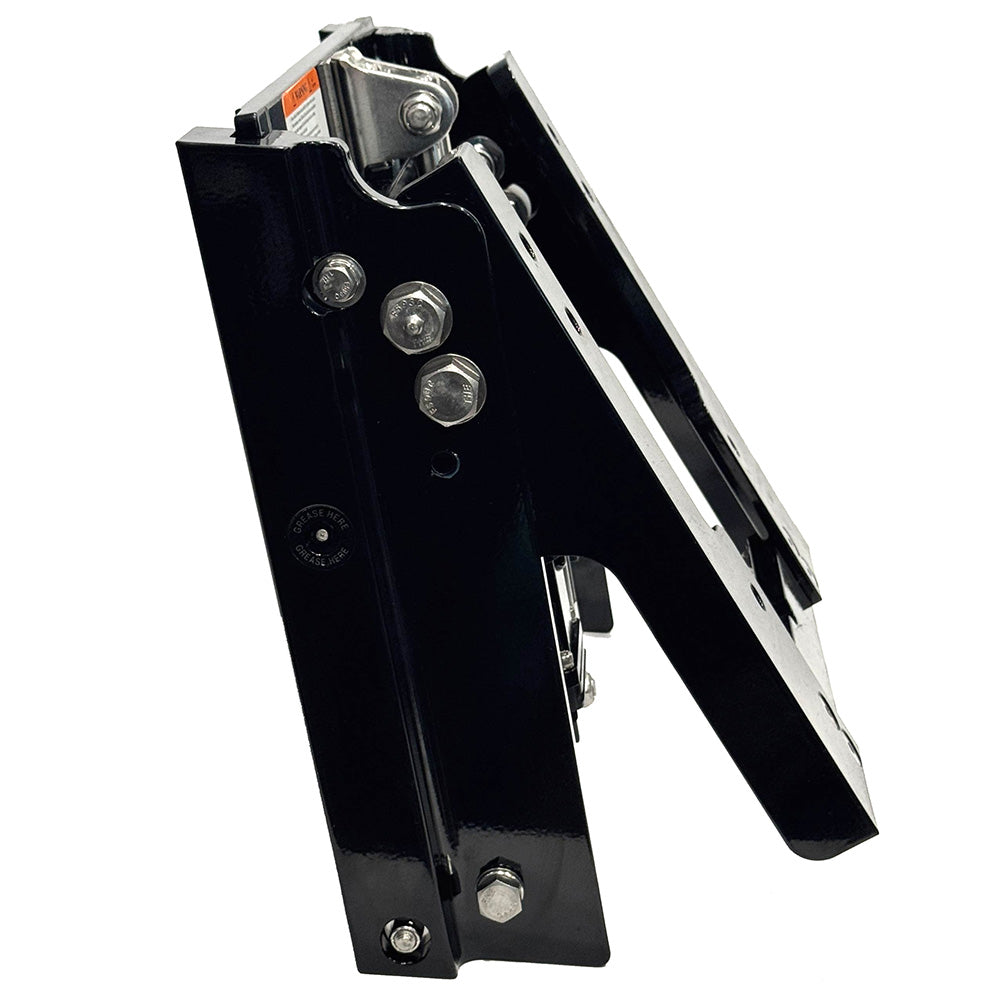

Bob's Machine 4-Inch Hydraulic Action Series Kick-Back Jack Plate delivers adjustable engine positioning and impact protection for outboard-powered boats. Part 100-105102P-PCGBLK features a durable gloss black powder-coated finish and combines a hydraulic jack plate with Kick-Back functionality, providing 6 inches of hydraulic stroke plus 1.5 inches of built-in structural lift for 7.5 inches of total lift. This design helps boaters navigate shallow water and safely idle over submerged obstructions by allowing the motor to move upward and back, helping reduce the risk of costly lower-unit damage.
Built for smooth, dependable operation, the patented Bob's Machine design uses Delrin rollers, bushings, and bearings instead of chains or springs. Greaseable pivot points and slide plate areas with automotive Zerk fittings support routine maintenance, while tension rods and locking pins help secure the plate during reverse operation and trailering. A dedicated motor tether attachment point adds an additional safety feature, and the plate provides up to 30 degrees of tilt for greater flexibility on the water.
Features:
- Patented Kick-Back jack plate design for shallow-water operation and impact protection
- 6 inches of hydraulic stroke with 1.5 inches of built-in structural lift
- 7.5 inches of total lift for adjustable outboard positioning
- 4 inches of setback
- Gloss black powder-coated finish for lasting surface protection
- Locking pins help prevent the plate from kicking out during reverse operation or trailering
- Delrin rollers, bushings, and bearings provide smooth, durable movement
- Greaseable pivot points and slide plate area with automotive Zerk fittings
- No springs or chains required
- Tension rods and motor tether attachment point included
- Up to 30 degrees of tilt
- Fits BIA bolt patterns and is rated for outboard motors up to 150 horsepower
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
Safety Warning: This Bob's Machine jack plate is rated for outboard motors up to 150 horsepower. Do not intentionally encounter obstructions at speeds above 5 mph or while operating in reverse. The Kick-Back feature is intended for forward-direction, low-speed shallow-water situations and is not designed for reverse impacts.
Bob's Machine 4 Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss Black
Bob's Machine 4-Inch Hydraulic Action Series Kick-Back Jack Plate delivers adjustable engine positioning and impact protection for outboard-powered boats. Part 100-105102P-PCGBLK features a durable gloss black powder-coated finish and combines a hydraulic jack plate with Kick-Back functionality, providing 6 inches of hydraulic stroke plus 1.5 inches of built-in structural lift for 7.5 inches of total lift. This design helps boaters navigate shallow water and safely idle over submerged obstructions by allowing the motor to move upward and back, helping reduce the risk of costly lower-unit damage.
Built for smooth, dependable operation, the patented Bob's Machine design uses Delrin rollers, bushings, and bearings instead of chains or springs. Greaseable pivot points and slide plate areas with automotive Zerk fittings support routine maintenance, while tension rods and locking pins help secure the plate during reverse operation and trailering. A dedicated motor tether attachment point adds an additional safety feature, and the plate provides up to 30 degrees of tilt for greater flexibility on the water.
Features:
- Patented Kick-Back jack plate design for shallow-water operation and impact protection
- 6 inches of hydraulic stroke with 1.5 inches of built-in structural lift
- 7.5 inches of total lift for adjustable outboard positioning
- 4 inches of setback
- Gloss black powder-coated finish for lasting surface protection
- Locking pins help prevent the plate from kicking out during reverse operation or trailering
- Delrin rollers, bushings, and bearings provide smooth, durable movement
- Greaseable pivot points and slide plate area with automotive Zerk fittings
- No springs or chains required
- Tension rods and motor tether attachment point included
- Up to 30 degrees of tilt
- Fits BIA bolt patterns and is rated for outboard motors up to 150 horsepower
- Limited lifetime structural warranty against manufacturing defects
- 3-year action pump warranty
Safety Warning: This Bob's Machine jack plate is rated for outboard motors up to 150 horsepower. Do not intentionally encounter obstructions at speeds above 5 mph or while operating in reverse. The Kick-Back feature is intended for forward-direction, low-speed shallow-water situations and is not designed for reverse impacts.
BRAND: Bob's Machine
Manufacturer Part Number: 100-105102P-PCGBLK
Bob's Machine 4 Hydraulic Action Series Kick-Back Jac - Powder Coated Gloss Black - 100-105102P-PCGBLK is backordered and will ship as soon as it is back in stock.
