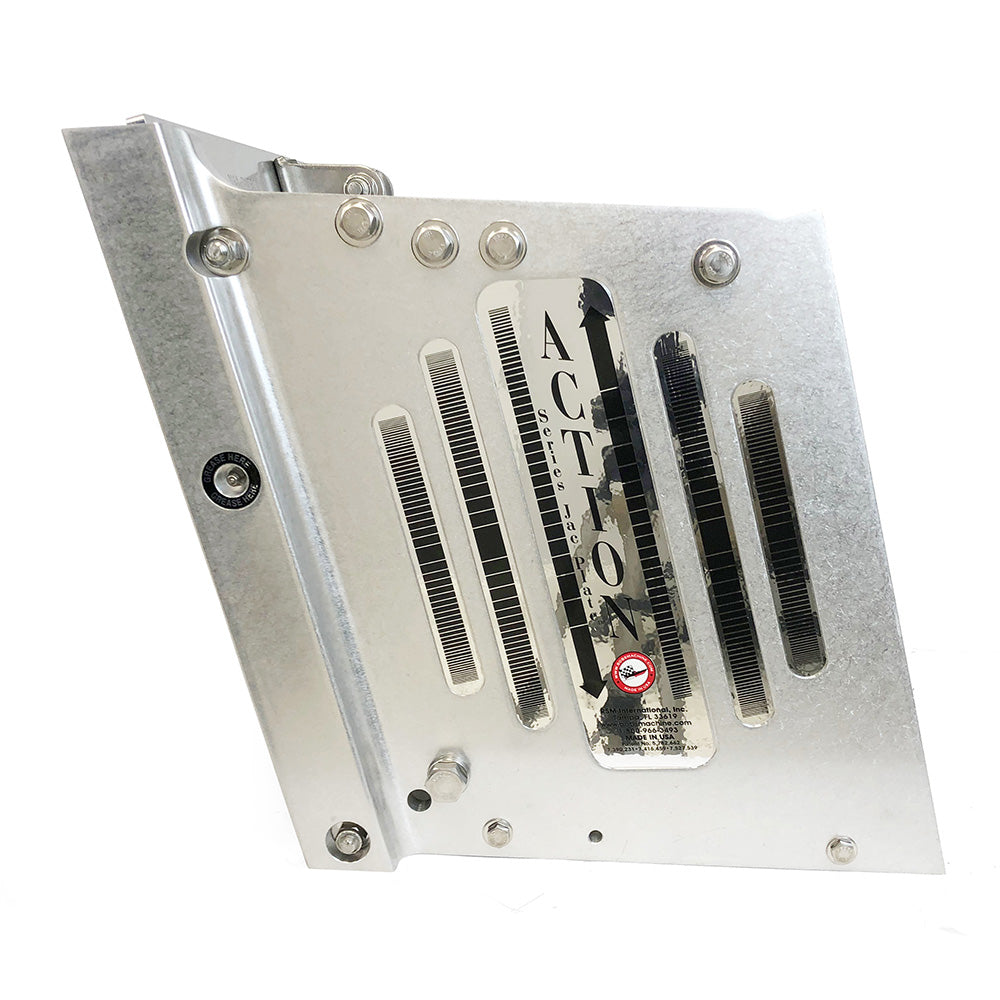

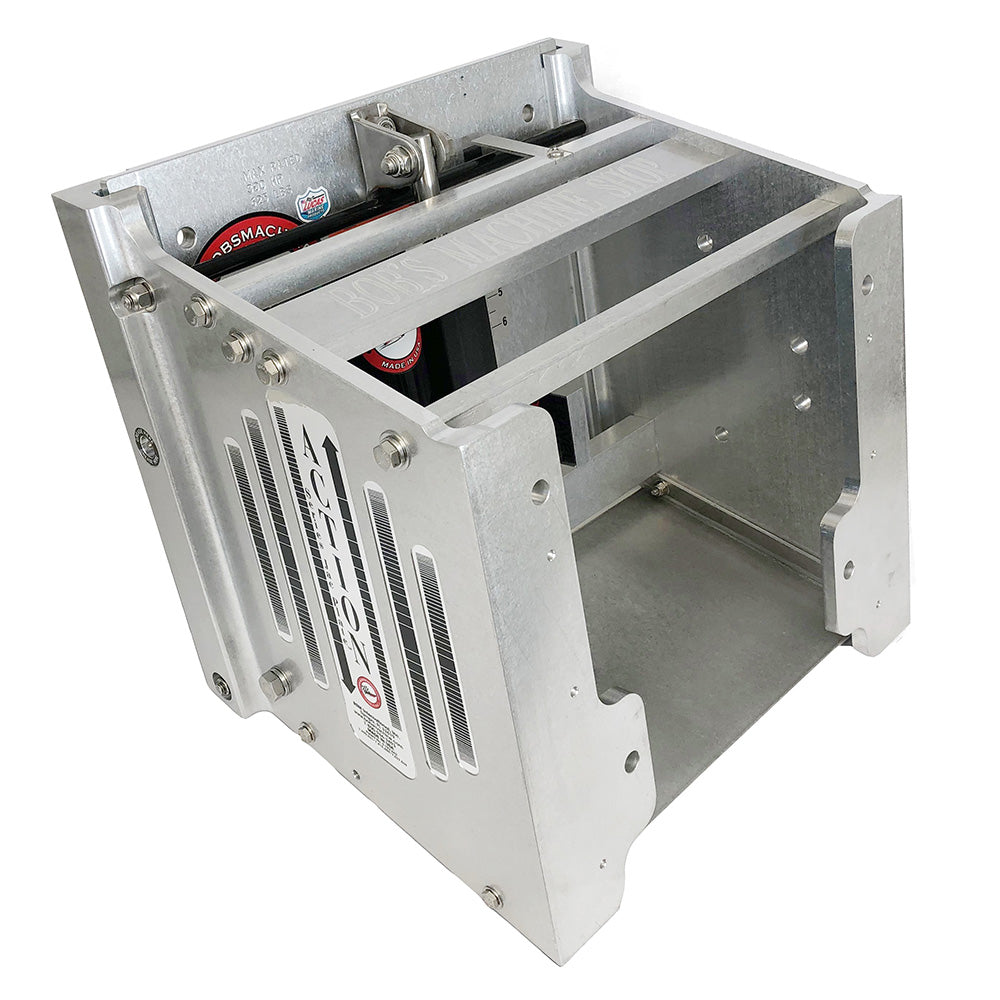

Bob's Machine 12-Inch Setback Action Series Hydraulic Jack Plate - Silver

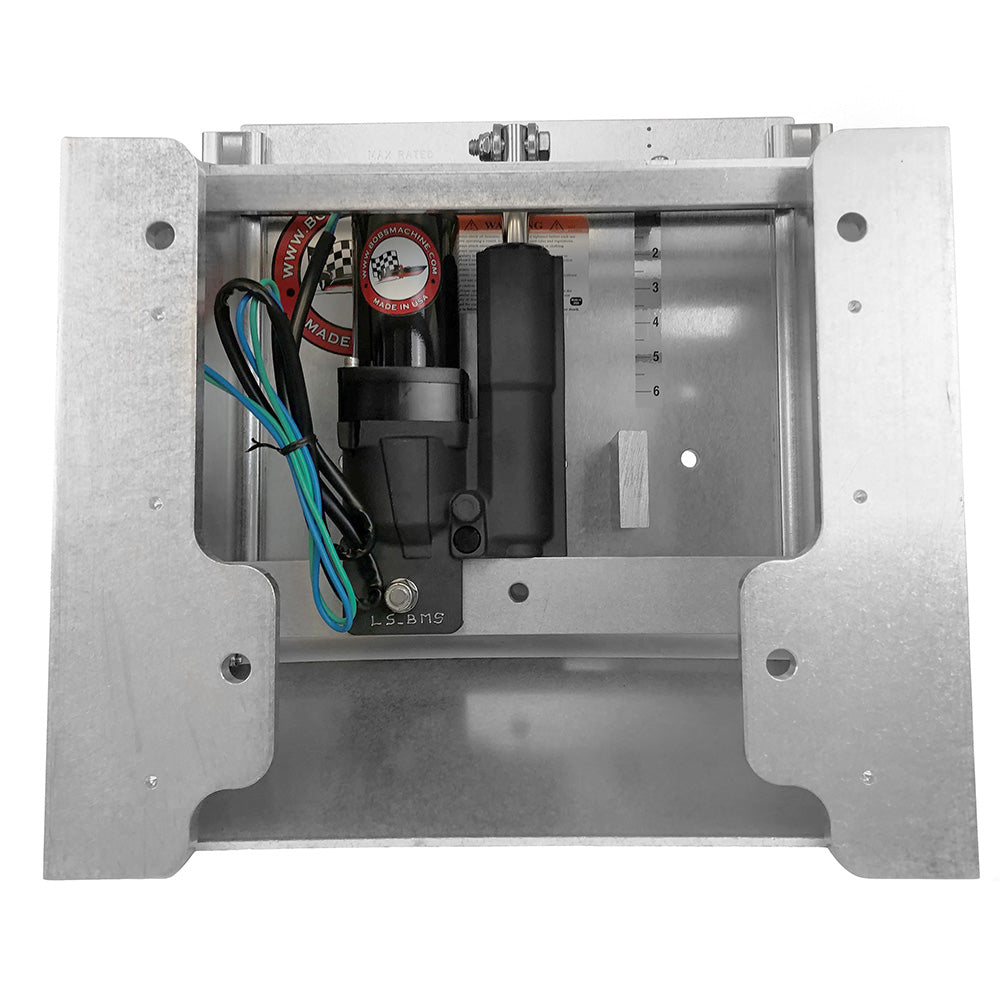

The Bob's Machine Action Series Hydraulic Jack Plate combines integrated hydraulic lifting technology with a durable one-piece design for boaters who need reliable outboard adjustment without sacrificing valuable rigging space. Unlike traditional systems that require an externally mounted pump, this jack plate houses the hydraulic pump inside its structure, helping simplify installation and keeping the pump protected within the plate. The included wiring harness, relays, and rocker-style switch provide the essential components for convenient operation.
Designed for demanding marine applications, the Action Series uses a powerful motor to provide strong lifting performance with heavy outboard engines. It includes 1.5 inches of built-in lift and 6 inches of adjustable travel, providing 7.5 inches of total lift. Automotive-style grease fittings in the side rails simplify routine lubrication, while integrated tension rods and Bob's Machine's proven structural design help support long-term performance. The plate is rated for outboards up to 300 horsepower and 625 pounds; heavier engines should use the Extreme Series. It supports motor mounting widths up to 14.5 inches, with wider applications requiring an Extreme Gen 3 jack plate.
This silver Bob's Machine jack plate is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if installation requirements change. The 12-inch setback configuration is built into the one-piece structure, eliminating the need for separate setback spacers. Part 100-112112-NOPC-NOSPN-NG includes the jack plate and operating components, along with a limited lifetime structural warranty against manufacturing defects and a 3-year Action pump warranty.
Features:
- Integrated hydraulic pump housed inside the jack plate structure
- 12-inch setback one-piece design without separate setback spacers
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor designed to lift heavy outboards under full power
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Can be converted for an inside-the-boat pump installation
- Automotive-style grease fittings for convenient lubrication
- Integrated tension rods for added structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
Bob's Machine 2" Setback Action Series Hydraulic Jack Plate - Silver
Bob's Machine 12-Inch Setback Action Series Hydraulic Jack Plate - Silver
The Bob's Machine Action Series Hydraulic Jack Plate combines integrated hydraulic lifting technology with a durable one-piece design for boaters who need reliable outboard adjustment without sacrificing valuable rigging space. Unlike traditional systems that require an externally mounted pump, this jack plate houses the hydraulic pump inside its structure, helping simplify installation and keeping the pump protected within the plate. The included wiring harness, relays, and rocker-style switch provide the essential components for convenient operation.
Designed for demanding marine applications, the Action Series uses a powerful motor to provide strong lifting performance with heavy outboard engines. It includes 1.5 inches of built-in lift and 6 inches of adjustable travel, providing 7.5 inches of total lift. Automotive-style grease fittings in the side rails simplify routine lubrication, while integrated tension rods and Bob's Machine's proven structural design help support long-term performance. The plate is rated for outboards up to 300 horsepower and 625 pounds; heavier engines should use the Extreme Series. It supports motor mounting widths up to 14.5 inches, with wider applications requiring an Extreme Gen 3 jack plate.
This silver Bob's Machine jack plate is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if installation requirements change. The 12-inch setback configuration is built into the one-piece structure, eliminating the need for separate setback spacers. Part 100-112112-NOPC-NOSPN-NG includes the jack plate and operating components, along with a limited lifetime structural warranty against manufacturing defects and a 3-year Action pump warranty.
Features:
- Integrated hydraulic pump housed inside the jack plate structure
- 12-inch setback one-piece design without separate setback spacers
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor designed to lift heavy outboards under full power
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Can be converted for an inside-the-boat pump installation
- Automotive-style grease fittings for convenient lubrication
- Integrated tension rods for added structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
BRAND: Bob's Machine
Manufacturer Part Number: 100-112112-NOPC-NOSPN-NG
