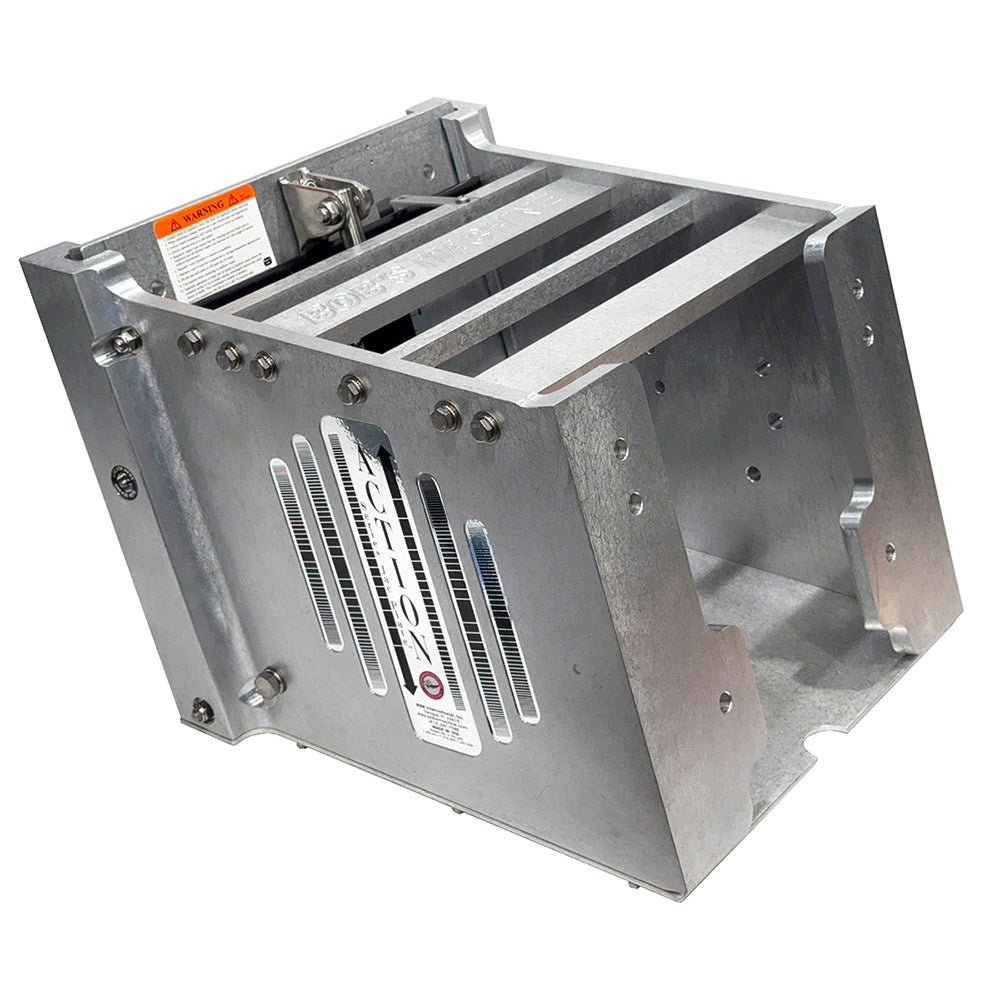

Bob's Machine 16" Setback Action Series Hydraulic Jack Plate - Silver - 100-116001-NOPC-NOSPN-NG
Couldn't load pickup availability
Bob's Machine 16-Inch Setback Action Series Hydraulic Jack Plate, Silver
The Bob's Machine Action Series Hydraulic Jack Plate delivers dependable outboard height adjustment with a space-saving internal hydraulic pump built directly into the jack plate structure. This integrated design eliminates the need to mount a separate pump inside the boat, helping simplify rigging and preserving valuable interior space. It is also well suited for OEM installations where efficient setup and clean component integration are important.
The powerful internal motor is engineered to provide fast lifting performance and reliable strength for heavy outboards. The one-piece 16-inch setback design avoids the need for additional setback spacers while incorporating Bob's patented features, including automotive-style grease nipples in the side rails, tension rods, and the company's proven jack plate construction. The Action Series supports motors with mounting widths up to 14.5 inches; wider applications should use the Extreme Gen 3 series.
This silver hydraulic jack plate is rated for outboards up to 300 horsepower and 625 pounds. It includes a wiring harness, relays, and rocker-style switch for installation. The assembly is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if installation requirements change. A limited lifetime structural warranty against manufacturing defects and a 3-year Action pump warranty provide additional ownership confidence.
Features:
- Integrated hydraulic pump built into the jack plate
- 16-inch setback with a one-piece design
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- High-power motor designed to lift heavy outboards under full power
- Convertible design allows the pump to be relocated inside the boat
- Automotive-style grease nipples for convenient lubrication
- Tension rods for added structural support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
- Silver finish
Bob's Machine 16" Setback Action Series Hydraulic Jack Plate - Silver
Bob's Machine 16-Inch Setback Action Series Hydraulic Jack Plate, Silver
The Bob's Machine Action Series Hydraulic Jack Plate delivers dependable outboard height adjustment with a space-saving internal hydraulic pump built directly into the jack plate structure. This integrated design eliminates the need to mount a separate pump inside the boat, helping simplify rigging and preserving valuable interior space. It is also well suited for OEM installations where efficient setup and clean component integration are important.
The powerful internal motor is engineered to provide fast lifting performance and reliable strength for heavy outboards. The one-piece 16-inch setback design avoids the need for additional setback spacers while incorporating Bob's patented features, including automotive-style grease nipples in the side rails, tension rods, and the company's proven jack plate construction. The Action Series supports motors with mounting widths up to 14.5 inches; wider applications should use the Extreme Gen 3 series.
This silver hydraulic jack plate is rated for outboards up to 300 horsepower and 625 pounds. It includes a wiring harness, relays, and rocker-style switch for installation. The assembly is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if installation requirements change. A limited lifetime structural warranty against manufacturing defects and a 3-year Action pump warranty provide additional ownership confidence.
Features:
- Integrated hydraulic pump built into the jack plate
- 16-inch setback with a one-piece design
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- High-power motor designed to lift heavy outboards under full power
- Convertible design allows the pump to be relocated inside the boat
- Automotive-style grease nipples for convenient lubrication
- Tension rods for added structural support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action pump warranty
- Silver finish
BRAND: Bob's Machine
Manufacturer Part Number: 100-116001-NOPC-NOSPN-NG
Bob's Machine 16" Setback Action Series Hydraulic Jack Plate - Silver - 100-116001-NOPC-NOSPN-NG is backordered and will ship as soon as it is back in stock.
