Bob's Machine 14" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-114001P-PCGBLK-NOSPN-NG
Couldn't load pickup availability

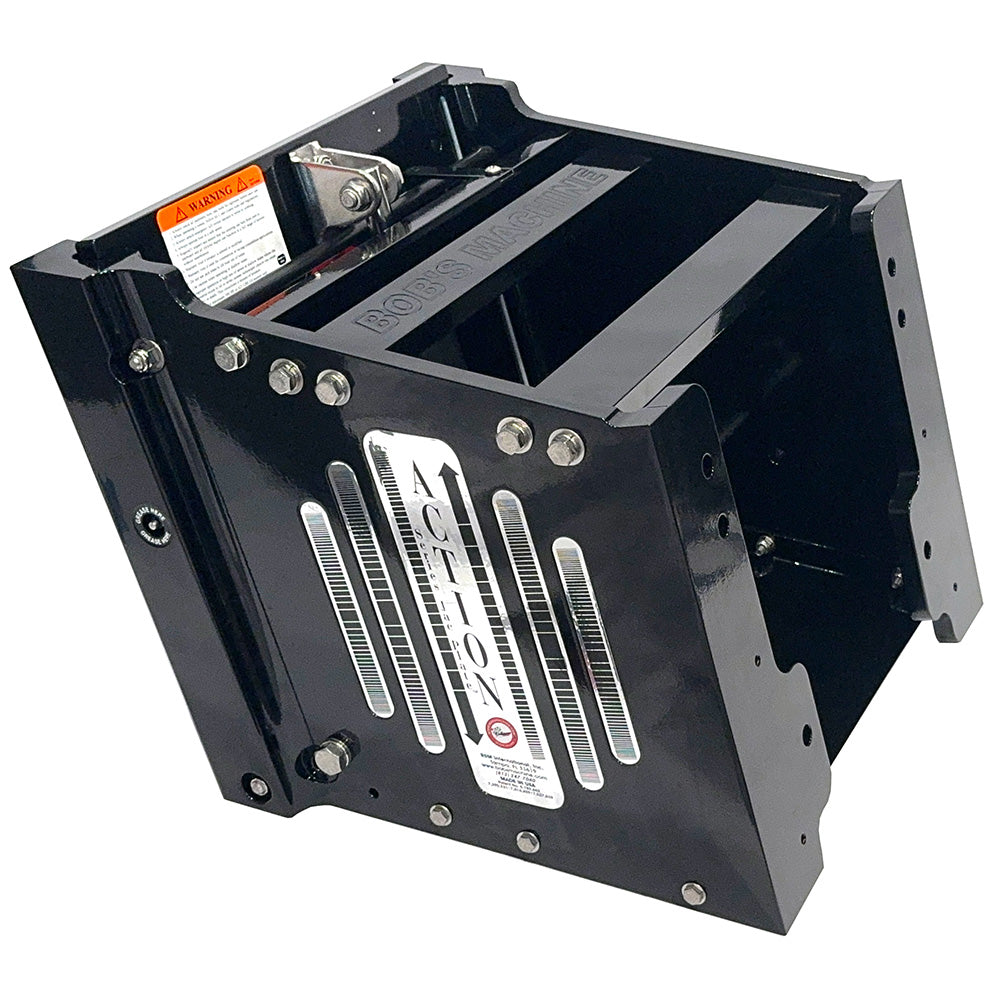

Bob's Machine 14-Inch Setback Action Series Hydraulic Jack Plate, Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate combines a one-piece design with an integrated hydraulic pump to simplify installation and preserve valuable space inside the boat. By placing the pump within the jack plate structure, this 14-inch setback model eliminates the need to mount a separate pump inside the hull and can help reduce rigging time for OEM and replacement applications. Its gloss black finish provides a clean appearance while supporting dependable performance in demanding marine environments.
The powerful internal motor is designed to raise heavy outboards quickly and confidently under full power. The jack plate includes 1.5 inches of built-in lift along with 6 inches of adjustable travel, providing 7.5 inches of total lift. Bob's Machine patented design features are incorporated throughout, including automotive-style grease fittings in the side rails for convenient lubrication and tension rods for added structural support. The Action Series supports outboards up to 300 horsepower and 625 pounds, with wider or heavier applications better suited to the Extreme Series. It accommodates motors with mounting widths up to 14.5 inches.
Part number 100-114001P-PCGBLK-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch for a complete installation package. The unit is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if your rigging configuration changes. Bob's Machine backs the structure with a limited lifetime warranty against manufacturing defects and provides a 3-year warranty on the Action Series pump.
Features:
- Integrated hydraulic pump within the jack plate structure
- Gloss black finish
- 14-inch setback one-piece design
- 1.5 inches of built-in lift plus 6 inches of adjustable travel
- 7.5 inches of total lift
- High-power motor for lifting heavy outboards under full power
- Convertible configuration for an optional pump mounted inside the boat
- Automotive-style grease fittings for easier lubrication
- Tension rods for added support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action Series pump warranty
Bob's Machine 14" Setback Action Series Hydraulic Jack Plate - Gloss Black
Bob's Machine 14-Inch Setback Action Series Hydraulic Jack Plate, Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate combines a one-piece design with an integrated hydraulic pump to simplify installation and preserve valuable space inside the boat. By placing the pump within the jack plate structure, this 14-inch setback model eliminates the need to mount a separate pump inside the hull and can help reduce rigging time for OEM and replacement applications. Its gloss black finish provides a clean appearance while supporting dependable performance in demanding marine environments.
The powerful internal motor is designed to raise heavy outboards quickly and confidently under full power. The jack plate includes 1.5 inches of built-in lift along with 6 inches of adjustable travel, providing 7.5 inches of total lift. Bob's Machine patented design features are incorporated throughout, including automotive-style grease fittings in the side rails for convenient lubrication and tension rods for added structural support. The Action Series supports outboards up to 300 horsepower and 625 pounds, with wider or heavier applications better suited to the Extreme Series. It accommodates motors with mounting widths up to 14.5 inches.
Part number 100-114001P-PCGBLK-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch for a complete installation package. The unit is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if your rigging configuration changes. Bob's Machine backs the structure with a limited lifetime warranty against manufacturing defects and provides a 3-year warranty on the Action Series pump.
Features:
- Integrated hydraulic pump within the jack plate structure
- Gloss black finish
- 14-inch setback one-piece design
- 1.5 inches of built-in lift plus 6 inches of adjustable travel
- 7.5 inches of total lift
- High-power motor for lifting heavy outboards under full power
- Convertible configuration for an optional pump mounted inside the boat
- Automotive-style grease fittings for easier lubrication
- Tension rods for added support
- Rated for outboards up to 300 horsepower and 625 pounds
- Supports motor mounting widths up to 14.5 inches
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- 3-year Action Series pump warranty
BRAND: Bob's Machine
Manufacturer Part Number: 100-114001P-PCGBLK-NOSPN-NG
Bob's Machine 14" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-114001P-PCGBLK-NOSPN-NG is backordered and will ship as soon as it is back in stock.
