Bob's Machine 12" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-112112P-PCGBLK-NOSPN-NG

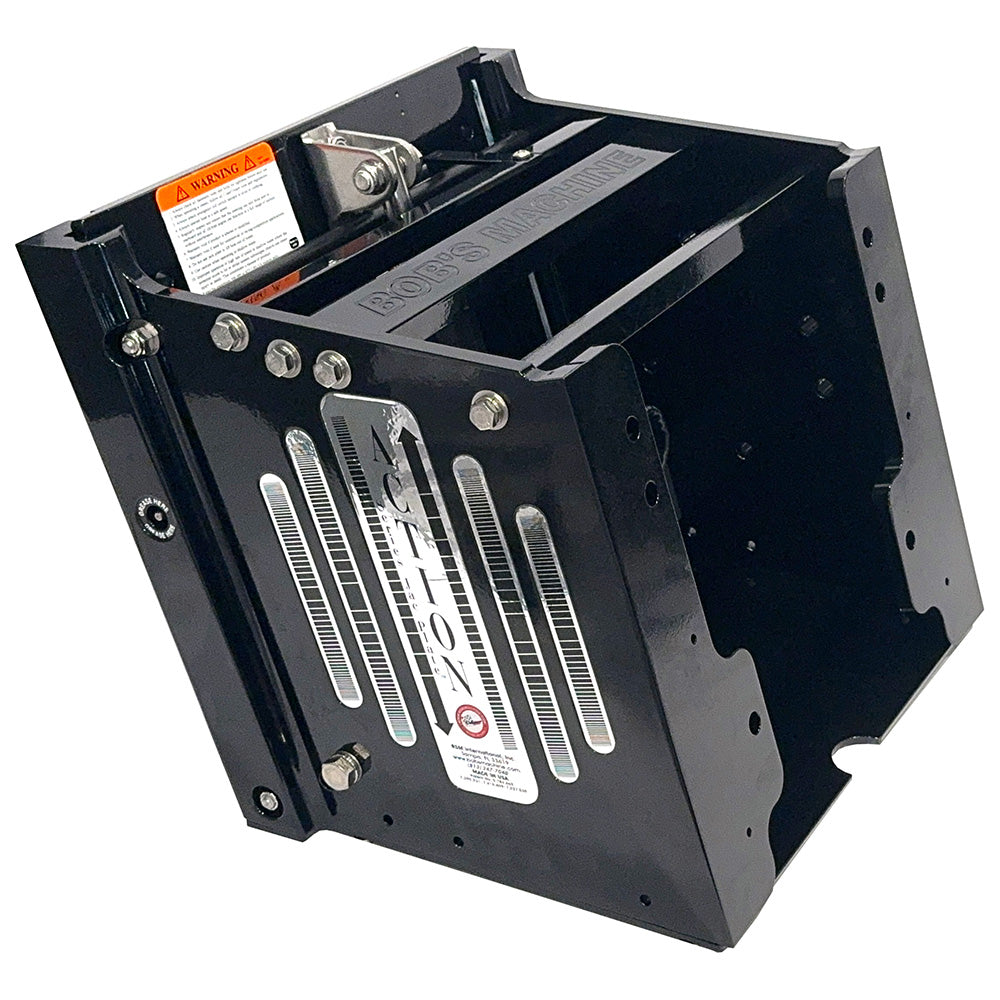

Bob's Machine 12" Setback Action Series Hydraulic Jack Plate - Gloss Black

Bob's Machine 12-Inch Setback Action Series Hydraulic Jack Plate - Gloss Black

The Bob's Machine Action Series Hydraulic Jack Plate combines space-saving installation with powerful outboard height adjustment. Its integrated hydraulic pump is built into the jack plate structure, eliminating the need to install a separate pump inside the boat. This design helps simplify rigging and preserves valuable storage space, making it a practical choice for OEM installations, repowers, and performance-focused marine applications. The gloss black finish provides a clean, durable appearance that complements a wide range of boat and outboard configurations.

The internal motor is engineered to deliver strong lifting performance with heavy outboards, while Bob's Machine patented design features help support long-term serviceability. Automotive-style grease fittings are built into the side rails for convenient lubrication, and included tension rods help maintain structural support. The one-piece construction provides the full 12-inch setback without requiring additional spacers. The Action Series supports motors with mounting widths up to 14.5 inches and is rated for outboards up to 300 horsepower and 625 pounds; heavier applications should use the Extreme Series.

This jack plate includes the plate assembly, wiring harness, relays, and rocker-style switch for a complete hydraulic adjustment system. It also comes pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump mounted inside the boat if installation preferences change. The unit includes a limited lifetime structural warranty against manufacturing defects and a 3-year Action pump warranty. Bob's Machine part number 100-112112P-PCGBLK-NOSPN-NG identifies this gloss black 12-inch setback configuration.

Features:

• Pump inside jack plate for space-saving installation and simplified rigging
• Gloss black finish for a durable, professional appearance
• 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
• Powerful internal motor designed to lift heavy outboards under full power
• One-piece 12-inch setback design with no additional spacers required
• Automotive-style grease fittings in the side rails for convenient lubrication
• Integrated tension rods for added structural support
• Rated for outboards up to 300 horsepower and 625 pounds
• Supports motor mounting widths up to 14.5 inches
• Pre-drilled for dual side-mount Power-Pole brackets
• Includes jack plate, wiring harness, relays, and rocker-style switch
• Convertible design allows the pump to be relocated inside the boat
• Limited lifetime structural warranty against manufacturing defects
• 3-year Action pump warranty

BRAND: Bob's Machine
Manufacturer Part Number: 100-112112P-PCGBLK-NOSPN-NG
