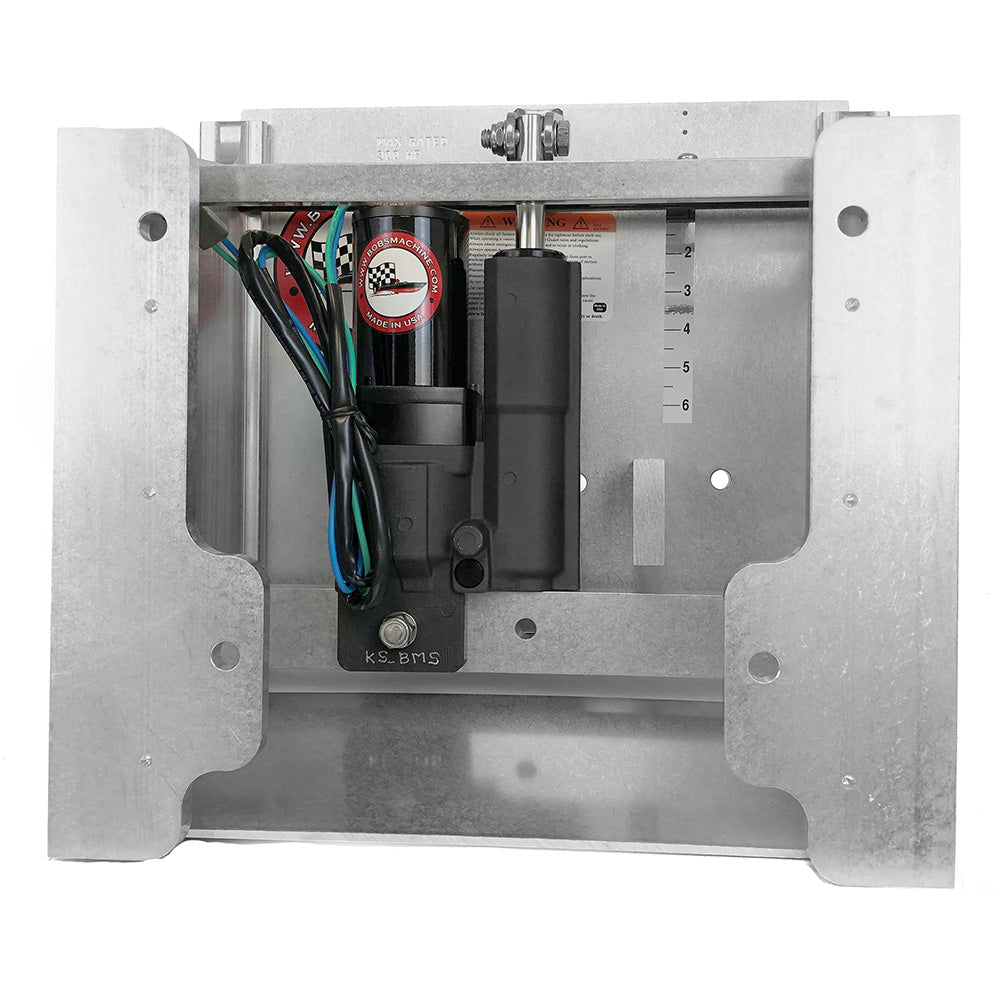

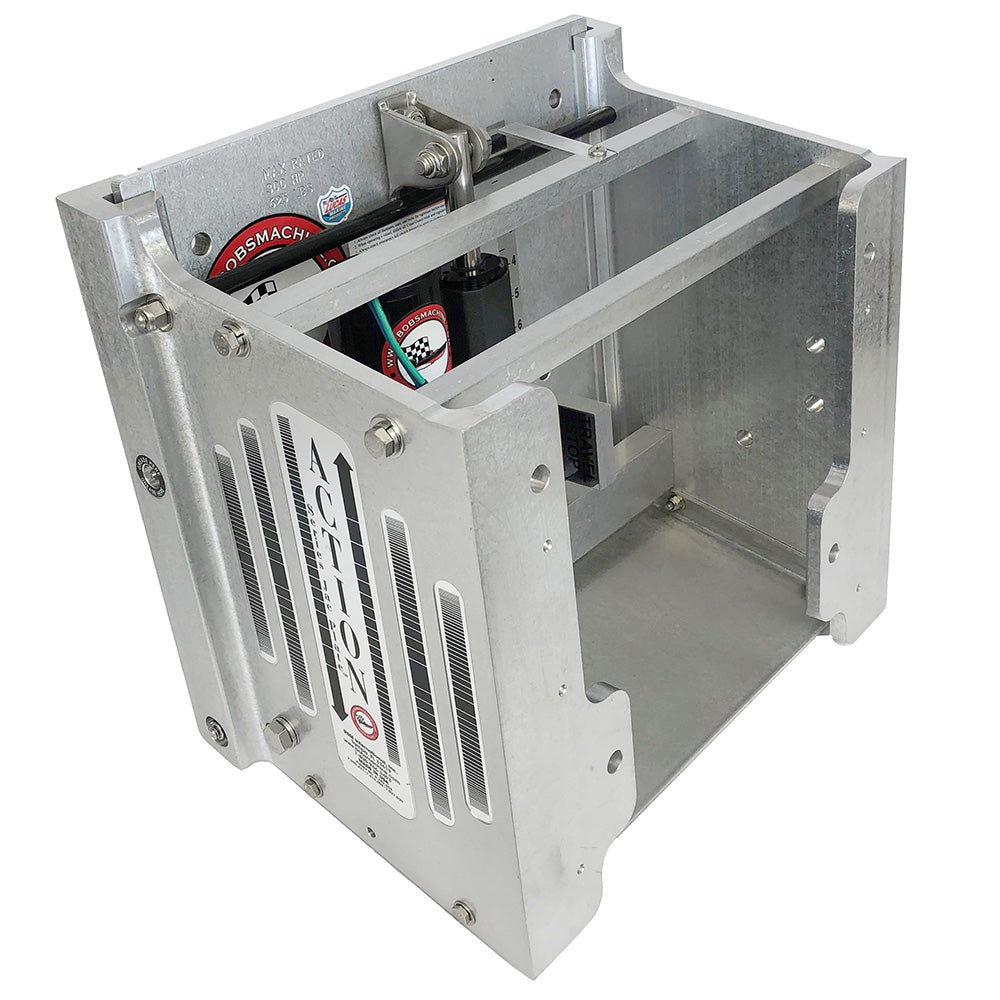

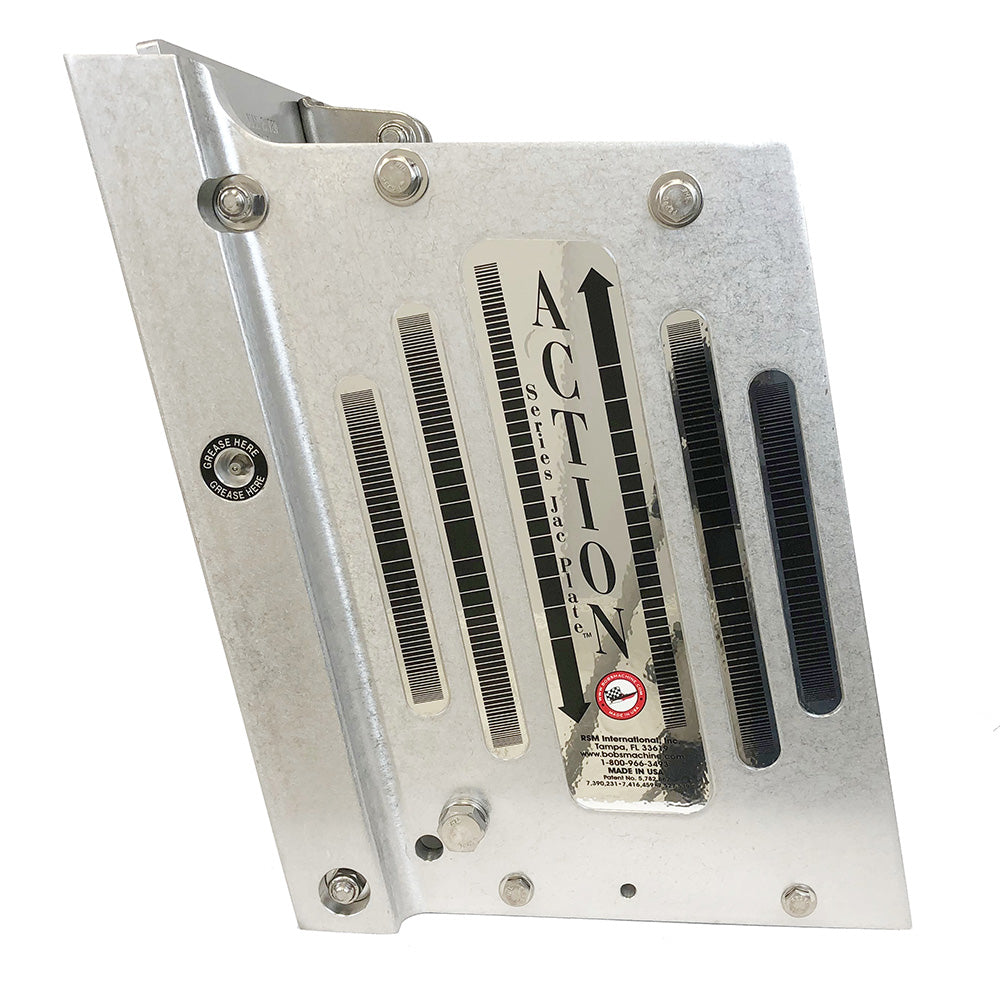

Bob's Machine 10-Inch Setback Action Series Hydraulic Jack Plate
The Bob's Machine Action Series Hydraulic Jack Plate delivers reliable outboard height adjustment while conserving valuable space inside the boat. Its integrated hydraulic pump is built directly into the jack plate structure, eliminating the need to mount a separate pump inside the boat and helping streamline OEM installation and rigging. The silver finish provides a clean, professional appearance for a wide range of marine applications.
Designed for demanding boating conditions, this Action Series jack plate uses a powerful motor engineered to lift heavy outboards under full power. The one-piece design provides a true 10-inch setback without requiring additional spacers. It includes 1.5 inches of structural lift and 6 inches of adjustable travel for 7.5 inches of total lift. The assembly supports motors rated up to 300 horsepower and weighing up to 625 pounds; heavier outboards should use the Bob's Machine Extreme Series.
Additional Bob's Machine design features include automotive-style grease fittings in the side rails for convenient lubrication, tension rods for added support, and compatibility with dual side-mount Power-Pole brackets. The internal pump can also be converted for installation inside the boat if your rigging requirements change. Part 100-111000-NOPC-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch, along with a limited lifetime structural warranty against manufacturing defects and a three-year Action Pump warranty.
Features:
- Integrated hydraulic pump saves space inside the boat and simplifies rigging
- 10-inch setback one-piece design requires no setback spacers
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor provides lifting strength for heavy outboards under full power
- Rated for outboards up to 300 horsepower and 625 pounds
- Convertible pump design allows installation inside the boat if desired
- Automotive-style grease fittings support convenient side-rail lubrication
- Tension rods provide additional structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- Three-year Action Pump warranty
Bob's Machine 10" Setback Action Series Hydraulic Jack Plate - Silver
Bob's Machine 10-Inch Setback Action Series Hydraulic Jack Plate
The Bob's Machine Action Series Hydraulic Jack Plate delivers reliable outboard height adjustment while conserving valuable space inside the boat. Its integrated hydraulic pump is built directly into the jack plate structure, eliminating the need to mount a separate pump inside the boat and helping streamline OEM installation and rigging. The silver finish provides a clean, professional appearance for a wide range of marine applications.
Designed for demanding boating conditions, this Action Series jack plate uses a powerful motor engineered to lift heavy outboards under full power. The one-piece design provides a true 10-inch setback without requiring additional spacers. It includes 1.5 inches of structural lift and 6 inches of adjustable travel for 7.5 inches of total lift. The assembly supports motors rated up to 300 horsepower and weighing up to 625 pounds; heavier outboards should use the Bob's Machine Extreme Series.
Additional Bob's Machine design features include automotive-style grease fittings in the side rails for convenient lubrication, tension rods for added support, and compatibility with dual side-mount Power-Pole brackets. The internal pump can also be converted for installation inside the boat if your rigging requirements change. Part 100-111000-NOPC-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch, along with a limited lifetime structural warranty against manufacturing defects and a three-year Action Pump warranty.
Features:
- Integrated hydraulic pump saves space inside the boat and simplifies rigging
- 10-inch setback one-piece design requires no setback spacers
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- Powerful motor provides lifting strength for heavy outboards under full power
- Rated for outboards up to 300 horsepower and 625 pounds
- Convertible pump design allows installation inside the boat if desired
- Automotive-style grease fittings support convenient side-rail lubrication
- Tension rods provide additional structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Includes jack plate, wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- Three-year Action Pump warranty
BRAND: Bob's Machine
Manufacturer Part Number: 100-111000-NOPC-NOSPN-NG
Bob's Machine 10" Setback Action Series Hydraulic Jack Plate - Silver - 100-111000-NOPC-NOSPN-NG is backordered and will ship as soon as it is back in stock.
