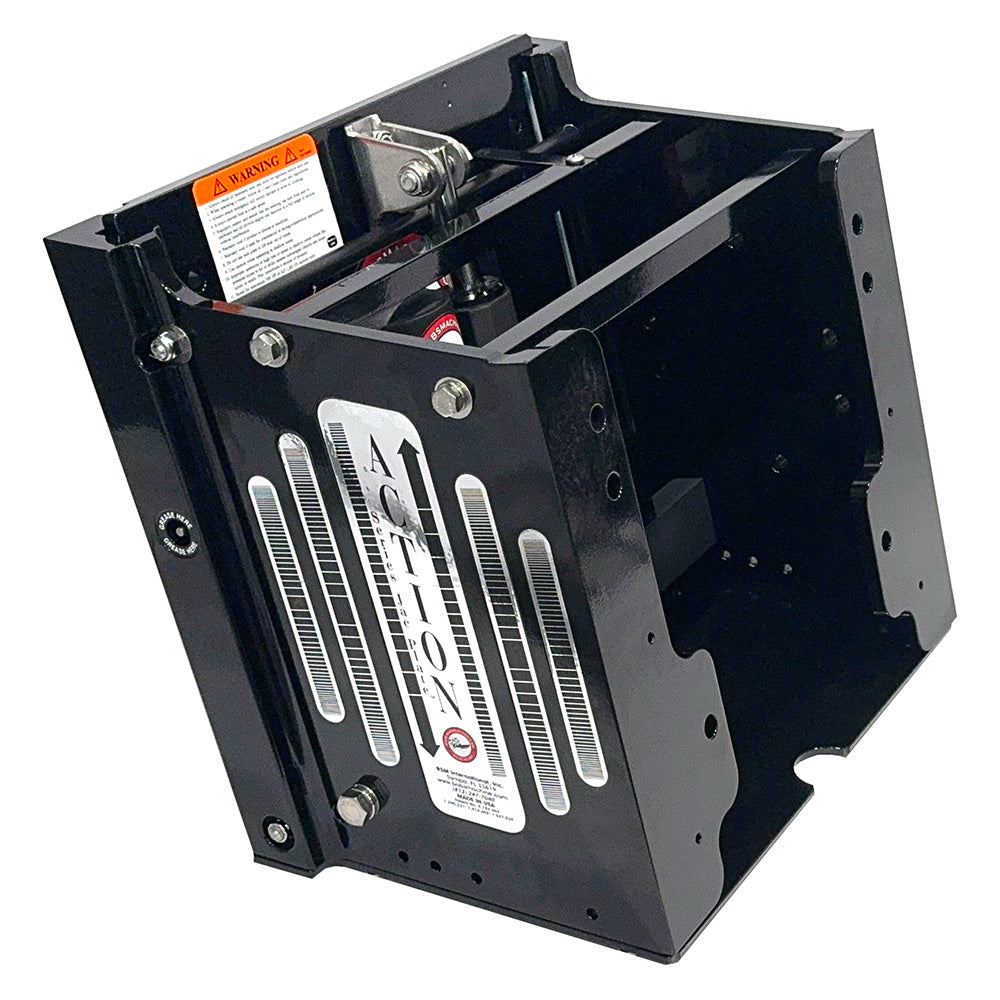

Bob's Machine 10" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-111000P-PCGBLK-NOSPN-NG
Couldn't load pickup availability
Bob's Machine 10-Inch Setback Action Series Hydraulic Jack Plate in Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate delivers efficient outboard height adjustment while simplifying boat rigging. Its integrated hydraulic pump is built directly into the jack plate structure, eliminating the need to install a separate pump inside the boat and preserving valuable interior space. This OEM-friendly design can help reduce installation time while maintaining a clean, organized rigging layout.
A powerful internal motor provides fast, dependable lifting performance for heavy outboards. The one-piece construction delivers a true 10-inch setback without requiring additional spacers. The Action Series also incorporates Bob's patented design features, including automotive-style grease fittings in the side rails for convenient lubrication and tension rods for added structural support. The jack plate includes a built-in 1.5 inches of lift, plus 6 inches of adjustable travel, providing 7.5 inches of total lift adjustment.
Rated for outboards up to 300 horsepower and 625 pounds, the Action Series supports motors with a mounting width up to 14.5 inches. Heavier engines or wider mounting configurations may require Bob's Machine Extreme Gen 3 series. The plate is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump installed inside the boat if desired. Part number 100-111000P-PCGBLK-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch, along with a limited lifetime structural warranty and a three-year Action pump warranty.
Features:
- Integrated hydraulic pump saves space inside the boat and simplifies rigging
- 10-inch one-piece setback design requires no spacer sections
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- High-output motor provides strong lifting performance for heavy outboards
- Supports outboards up to 300 horsepower and 625 pounds
- Fits motor mounting widths up to 14.5 inches
- Automotive-style grease fittings support convenient side-rail lubrication
- Tension rods provide added structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Convertible design allows the pump to be relocated inside the boat
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- Three-year Action pump warranty
- Gloss black finish
Bob's Machine 10" Setback Action Series Hydraulic Jack Plate - Gloss Black
Bob's Machine 10-Inch Setback Action Series Hydraulic Jack Plate in Gloss Black
The Bob's Machine Action Series Hydraulic Jack Plate delivers efficient outboard height adjustment while simplifying boat rigging. Its integrated hydraulic pump is built directly into the jack plate structure, eliminating the need to install a separate pump inside the boat and preserving valuable interior space. This OEM-friendly design can help reduce installation time while maintaining a clean, organized rigging layout.
A powerful internal motor provides fast, dependable lifting performance for heavy outboards. The one-piece construction delivers a true 10-inch setback without requiring additional spacers. The Action Series also incorporates Bob's patented design features, including automotive-style grease fittings in the side rails for convenient lubrication and tension rods for added structural support. The jack plate includes a built-in 1.5 inches of lift, plus 6 inches of adjustable travel, providing 7.5 inches of total lift adjustment.
Rated for outboards up to 300 horsepower and 625 pounds, the Action Series supports motors with a mounting width up to 14.5 inches. Heavier engines or wider mounting configurations may require Bob's Machine Extreme Gen 3 series. The plate is pre-drilled for dual side-mount Power-Pole brackets and can be converted to use a pump installed inside the boat if desired. Part number 100-111000P-PCGBLK-NOSPN-NG includes the jack plate, wiring harness, relays, and rocker-style switch, along with a limited lifetime structural warranty and a three-year Action pump warranty.
Features:
- Integrated hydraulic pump saves space inside the boat and simplifies rigging
- 10-inch one-piece setback design requires no spacer sections
- 1.5 inches of built-in lift plus 6 inches of adjustable travel for 7.5 inches of total lift
- High-output motor provides strong lifting performance for heavy outboards
- Supports outboards up to 300 horsepower and 625 pounds
- Fits motor mounting widths up to 14.5 inches
- Automotive-style grease fittings support convenient side-rail lubrication
- Tension rods provide added structural support
- Pre-drilled for dual side-mount Power-Pole brackets
- Convertible design allows the pump to be relocated inside the boat
- Includes wiring harness, relays, and rocker-style switch
- Limited lifetime structural warranty against manufacturing defects
- Three-year Action pump warranty
- Gloss black finish
BRAND: Bob's Machine
Manufacturer Part Number: 100-111000P-PCGBLK-NOSPN-NG
Bob's Machine 10" Setback Action Series Hydraulic Jack Plate - Gloss Black - 100-111000P-PCGBLK-NOSPN-NG is backordered and will ship as soon as it is back in stock.
