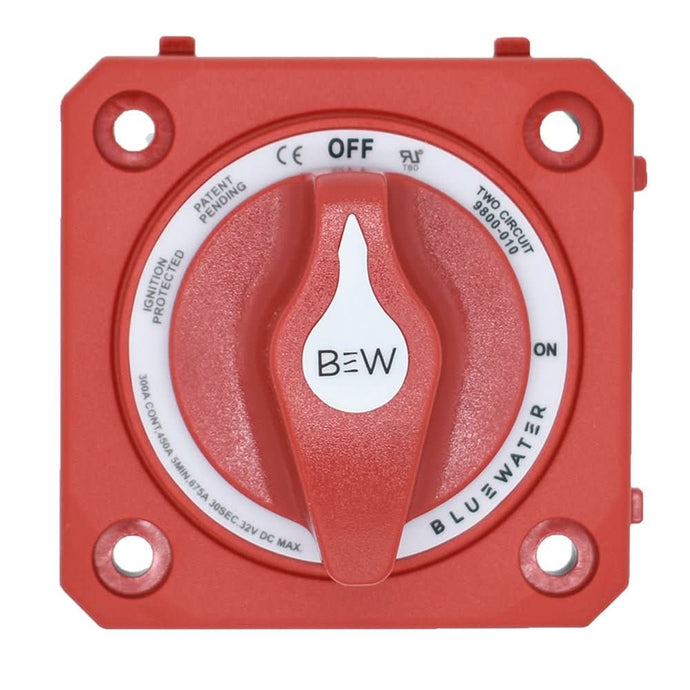

Bluewater Part 9800-010-10 On/Off 4 Post Dual Circuit Battery Switch for Marine and RV Systems - 9800-010-10

Bluewater Part 9800-010-10 On/Off 4 Post Dual Circuit Battery Switch for Marine and RV Systems

The Bluewater 9800-010-10 dual circuit battery switch provides reliable, independent control of two separate circuits with a single toggle. Designed for applications such as marine, RV, and other vehicle systems, this switch enables you to switch between batteries or isolate circuits without risk of cross-connection, ensuring safe and efficient power management. Its panel-mount design supports surface, front, or rear panel installation, offering versatility for various setups. The switch features three 3/8-16 tin-plated copper studs that deliver high conductivity and corrosion resistance, capable of accepting both 3/8-inch and M10 ring terminals. The 7/8-inch stud length allows for secure connection of multiple cables, enhancing reliability and ease of wiring. Constructed from marine-grade, non-corrosive metals and housed in reinforced polycarbonate, this switch is built to withstand harsh environments and prolonged use. The tactile knob textures enable users to identify switch positions by feel, while international ON/OFF legends and an ICON label set provide clear circuit identification for safe operation. Suitable for continuous operation at up to 300 amps DC, with intermittent ratings up to 450 amps for five minutes and a cranking rating of 675 amps for thirty seconds, the switch supports a maximum voltage of 32VDC. It accommodates cable sizes up to 4/0 AWG, making it ideal for high-current applications where dependable power control is critical. Whether used in marine vessels, RVs, or other vehicles, this switch ensures safe and efficient circuit management, backed by durable construction and user-friendly features.

Features:

• Dual circuit control: allows independent switching of two circuits with a single toggle

• Panel mount design: supports surface, front, or rear panel installation

• High conductivity studs: three 3/8-16 tin-plated copper studs for corrosion-resistant connections

• Secure cable connections: accepts 3/8-inch and M10 ring terminals with 7/8-inch stud length

• Durable construction: marine-grade metals housed in reinforced polycarbonate for harsh environments

• Tactile knob: textured for easy position recognition by feel

• Clear labeling: international ON/OFF legends and ICON labels for circuit identification

• High current ratings: continuous 300 amps DC, intermittent 450 amps (5 min), cranking 675 amps (30 sec)

• Maximum voltage: 32VDC, suitable for high-current marine and RV applications

BRAND: Bluewater

Manufacturer Part Number: 9800-010-10
