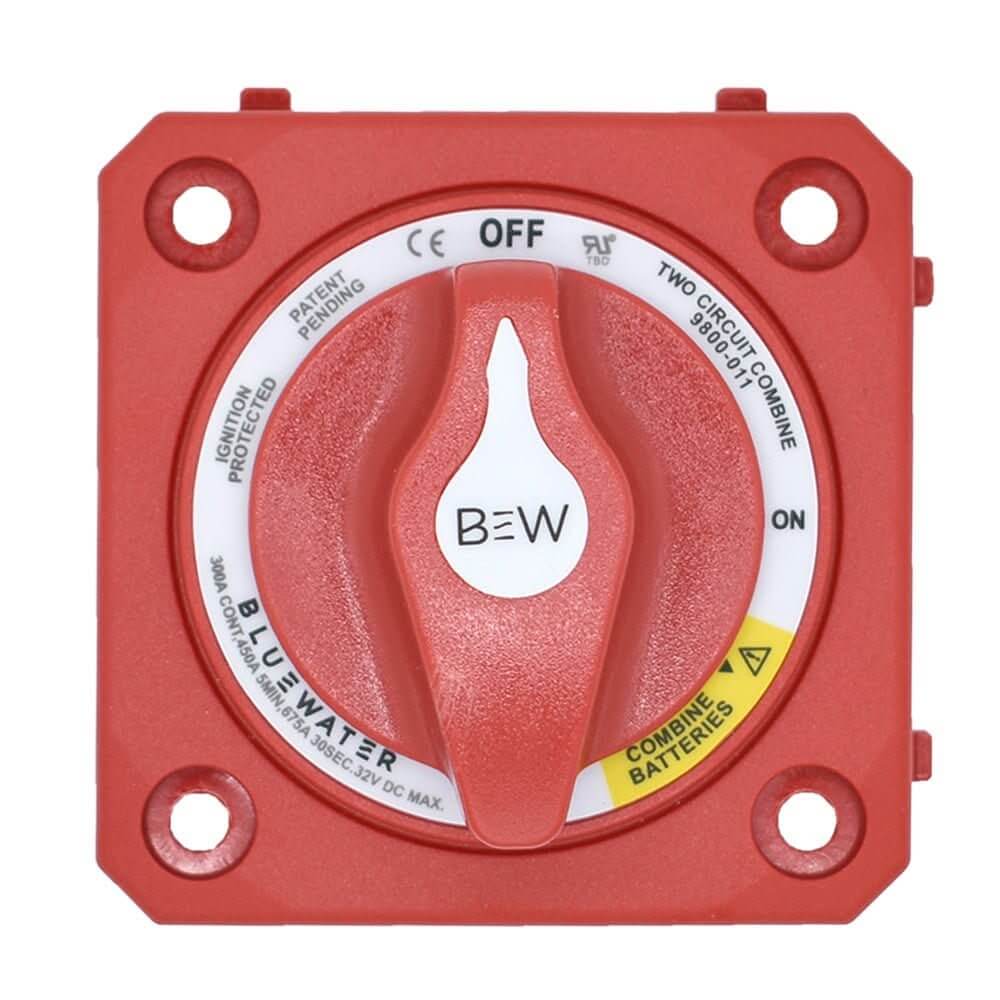

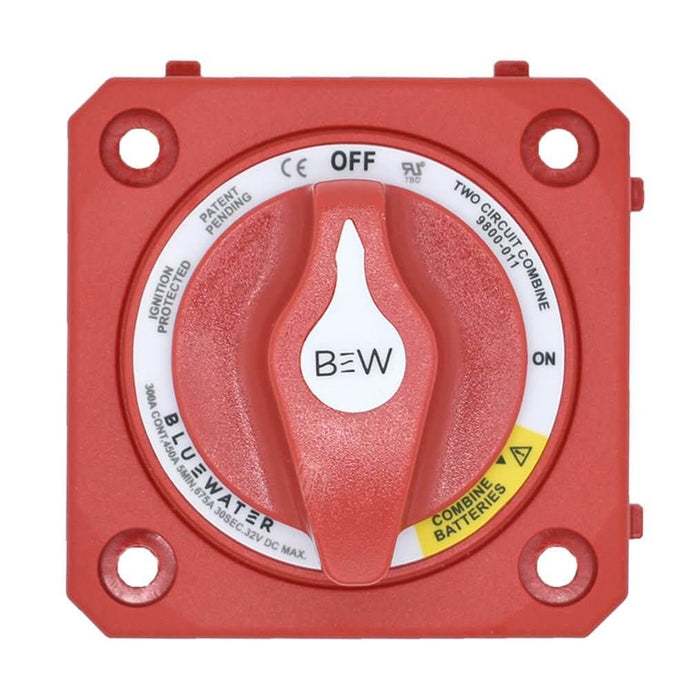

Bluewater Off/On Combine Battery Switch with Emergency Parallel - Panel Mount - Red - 9800-011-10

Bluewater Off/On Combine Battery Switch with Emergency Parallel – Panel Mount – Red – 9800-011-10

The Bluewater Off/On Combine Battery Switch with Emergency Parallel is designed for advanced power management in marine and RV electrical systems. This switch features a dual circuit configuration combined with an emergency parallel function to ensure reliable backup power when the start battery fails, providing users with critical power continuity.

• Continuous rating: 300 amps DC
• Intermittent rating: 450 amps
• Cranking rating: 675 amps
• Maximum voltage: 32VDC
• Compatible cable size: 4/0 AWG
• Stud size: 3/8-16 tin-plated copper, 7/8 inch length

Compared to standard battery switches, the Bluewater 9800-011-10 model excels by incorporating an emergency parallel feature that instantly combines circuits for dependable starting power in emergency situations. Its marine-grade metals combined with a reinforced polycarbonate housing offer exceptional resistance against corrosion, vibration, and salt spray, surpassing typical durability standards especially for use aboard gasoline-powered boats with ignition protection.

Key Technical Advantages: Technology and Performance
This Bluewater battery switch utilizes high-conductivity tin-plated copper studs compatible with both 3/8 and M10 ring terminals, ensuring optimal electrical connections with corrosion resistance. Its thoughtful design includes tactile knob textures for easy operation and internationally recognized ON/OFF labels, supplemented by an included ICON label set for clear circuit identification. Versatile mounting options—surface, front panel, or rear panel—provide installation flexibility tailored to various environments. With its heavy-duty current handling capacity, secure isolation during normal use, and seamless circuit combining in emergencies, this switch guarantees robust and safe power control for demanding marine and RV applications.
