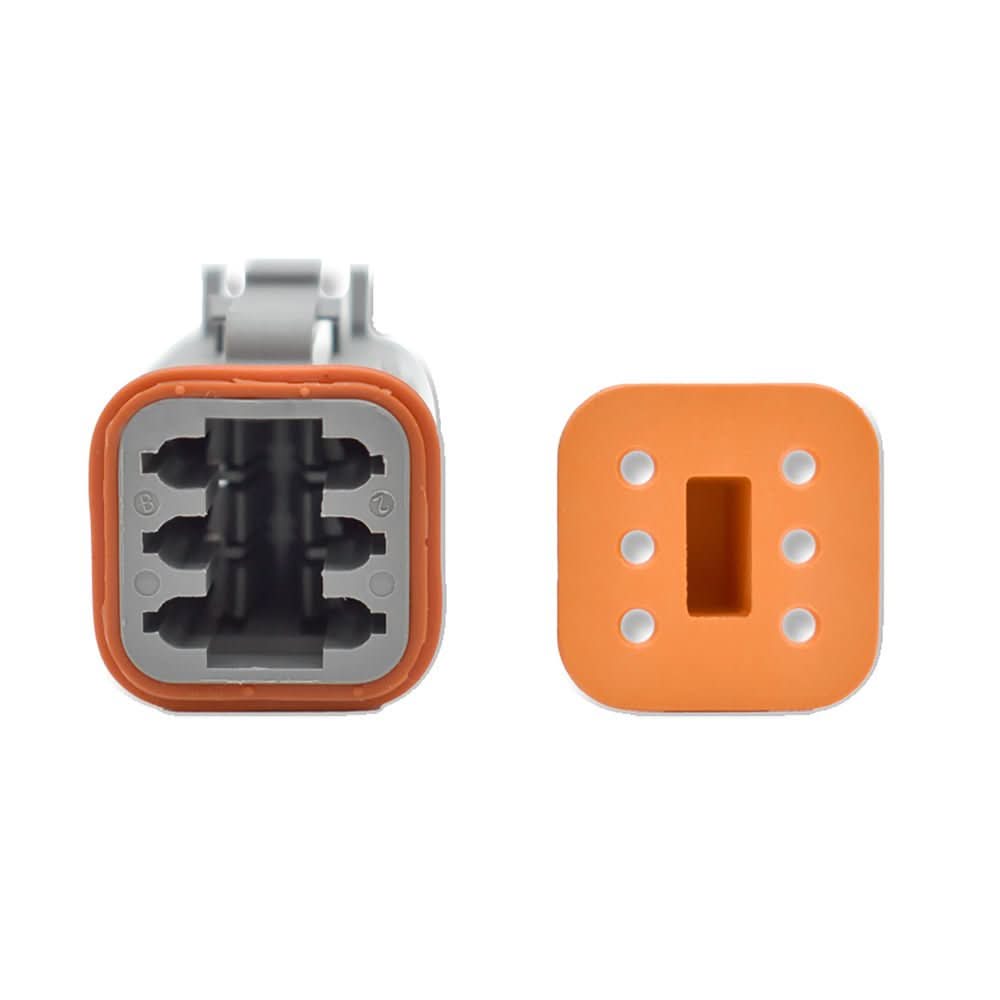

Bluewater DT06-6S 6-Position Female Deutsch Connector with Wedge Lock
Manufacturer Part #: DT06-6S
Couldn't load pickup availability
Bluewater DT06-6S 6-Position Female Deutsch Connector with Wedge Lock
Ensure secure, weather-resistant electrical connections with the Bluewater DT06-6S Female Deutsch Connector. Designed for demanding marine, automotive, and industrial environments, this 6-position connector provides a reliable, vibration-resistant connection you can trust.
Built to Deutsch DT series standards, the DT06-6S features a durable thermoplastic housing and includes a wedge lock to securely retain contacts and prevent loosening over time. Its sealed design helps protect against moisture, dirt, and corrosion—making it ideal for harsh marine and outdoor applications.
Technical Dimensions | DT06-6S
| Dimension | Measurement (Metric) | Measurement (Imperial) |
| Product Length | 30.94 mm | 1.218 in |
| Product Width | 18.19 mm | 0.716 in |
| Product Height | 22.63 mm | 0.891 in |
| Centerline (Pitch) | 9.12 mm | 0.359 in |
Critical Specifications
-
Number of Positions: 6 cavities in a 2-row configuration.
-
Contact Size: Size 16 (rated for 13 Amps continuous).
-
Wire Range: 14–20 AWG
-
Mating Part: This female plug (housing for socket terminals) mates with the DT04-6P male receptacle.
-
Ingress Protection: IP68 and IP6K9K (dust-tight and protected against powerful high-temperature water jets).
Installation Requirements
-
Wedgelock Required: To secure the terminals inside the housing, you must use a W6S (or W6S-P012) secondary wedgelock. These are often sold separately but are essential for the connector to function.
-
Terminals: This housing accepts Size 16 Socket (Female) contacts. You can choose between "Stamped and Formed" (economy) or "Solid Machined" (heavy-duty/marine) terminals depending on your application.
-
Sealing: The connector is designed with an internal silicone seal. To maintain the waterproof rating, ensure your wire insulation falls within the compatible range of 2.23 mm – 3.68 mm
Ideal For
-
Marine electrical systems
-
Engine harnesses and accessory wiring
-
Automotive and off-road applications
-
Heavy-duty and outdoor electrical connections
Product Specifications
-
Brand: Bluewater
-
Connector Type: Female Deutsch DT
-
Positions: 6
-
Model Number: DT06-6S
-
Included: Connector housing & wedge lock
-
Application: Marine / Automotive / Industrial
Why Choose Bluewater?
Bluewater electrical components are trusted for their marine-grade quality and reliability, making them a go-to choice for professionals and DIY installers alike.
BRAND: Bluewater
Manufacturer Part Number: DT06-6S
Bluewater DT06-6S 6-Position Female Deutsch Connector with Wedge Lock is backordered and will ship as soon as it is back in stock.
