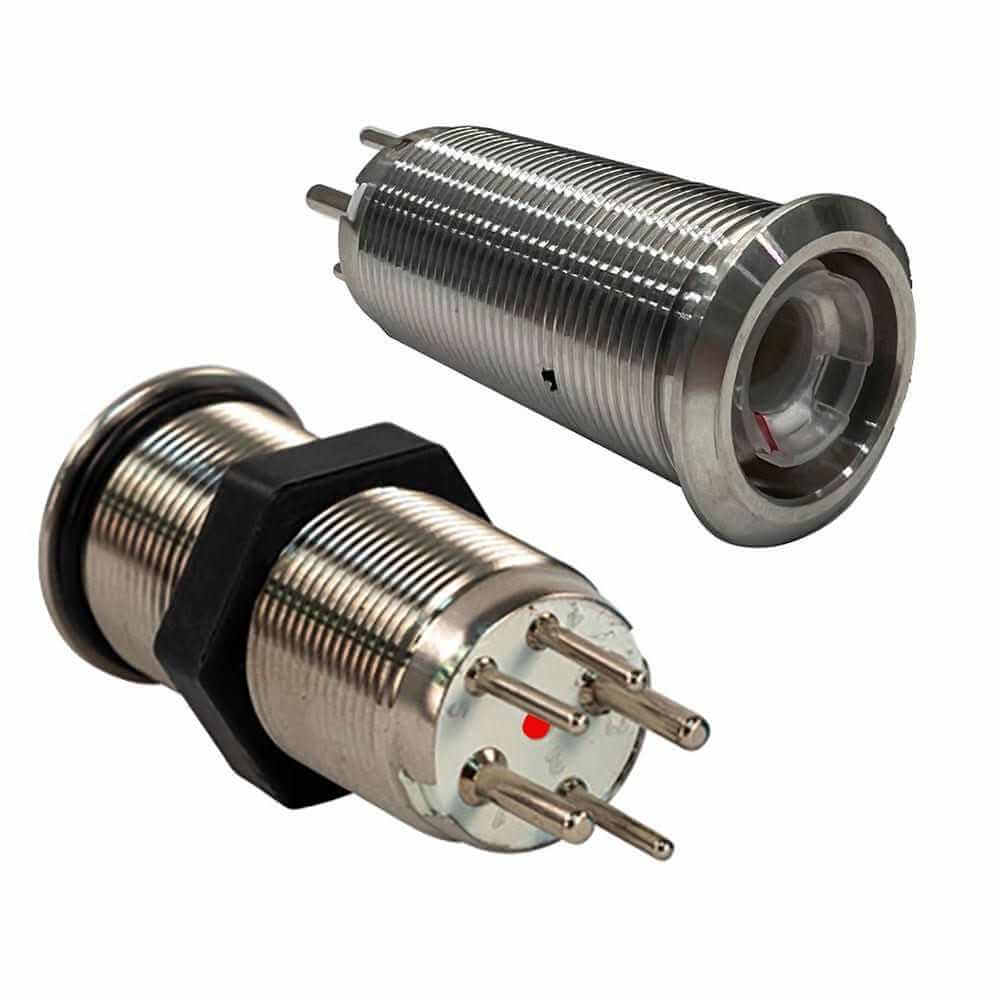

Bluewater 9057-1113 19mm Marine Grade Inrush Push Button Switch with Blue/Red LED - 9057-1113

Bluewater 9057-1113 19mm Marine Grade Inrush Push Button Switch with Blue/Red LED

The Bluewater 9057-1113 19mm Inrush Push Button Switch offers a robust and compact control solution designed for demanding marine and outdoor environments. Crafted from corrosion-resistant SS316 stainless steel and sealed to an IP69K waterproof rating, this switch is engineered to withstand harsh conditions such as salt spray and high-pressure washdowns. Its compact size makes it suitable for tight panel layouts, ensuring reliable operation even in space-constrained installations. The switch features a fully detachable actuator that can be customized to suit your aesthetic or functional preferences, providing flexibility for various control panel designs. The built-in LED indicators provide clear visual feedback; the soft blue backlight enhances visibility in low-light conditions, while the bright red LED indicates active status, ensuring immediate recognition of system states. Rated for 15 amps at 12-24V DC, the switch handles high current loads with consistent performance, making it ideal for controlling power to marine equipment, outdoor lighting, or other rugged electrical systems. Its design includes one normally open and one normally closed contact, with options for dual-channel configurations, supporting versatile electrical setups. Installation is straightforward; simply drill a 19mm hole into panels up to 0.24 inches thick, connect the color-coded contacts for power and control, and secure the switch in place. Built to endure up to 50,000 mechanical cycles and 10,000 electrical cycles, the Bluewater 9057-1113 switch delivers long-lasting reliability for demanding applications. Whether used by boat builders, marine technicians, or outdoor equipment installers, this switch provides a durable, easy-to-use solution that combines high performance with exceptional environmental resistance.

Features:

• Corrosion-resistant SS316 stainless steel housing for durability in harsh environments

• IP69K waterproof rating ensures protection against water and dust ingress

• Built-in LED indicators with blue backlight for low-light visibility and bright red for active status

• Rated for 15 amps at 12-24V DC, supporting high current loads

• Fully detachable and customizable actuator for tailored control interface

• Simple installation with a 19mm mounting hole, suitable for panels up to 0.24 inches thick

• Supports multiple contact configurations including single and dual channel options

• High mechanical and electrical cycle ratings ensure long-term performance

• Designed specifically for marine, outdoor, and rugged applications

BRAND: Bluewater

Manufacturer Part Number: 9057-1113
