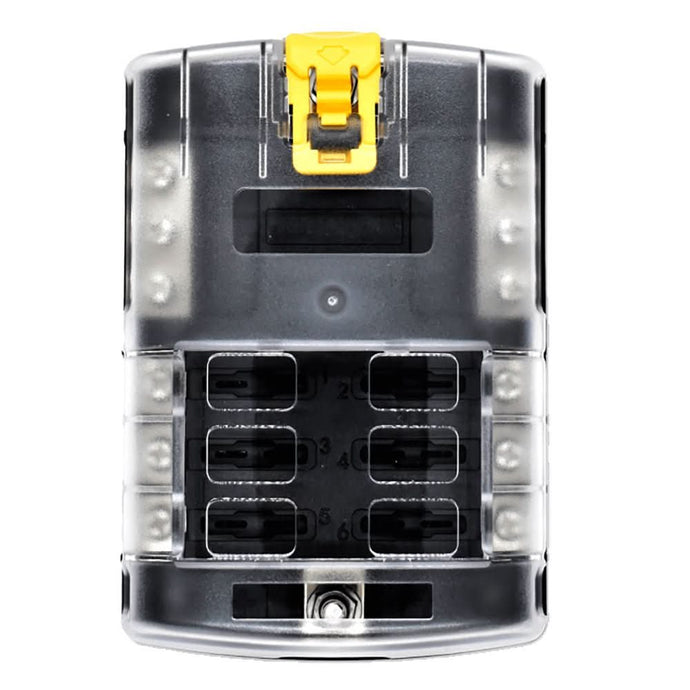

Bluewater 6 & 12-Position ATC Fuse Block with Yellow Slide for Marine and RV Applications - 3200-3003-006
Manufacturer Part #: 3200-3003-006
Couldn't load pickup availability
The Bluewater 3200-3003-006 fuse block offers a reliable and organized solution for managing low-voltage electrical circuits in marine, RV, and off-grid systems. Designed to accommodate up to 12 circuits, this fuse block ensures efficient circuit separation and protection, making it suitable for complex power setups. Its robust construction and professional-grade features deliver dependable performance in demanding environments. The fuse block is rated for 48V DC systems with an input current capacity of up to 100A, supporting a wide range of electrical configurations. It uses sturdy M5 threaded studs for the main input connection and M4 threaded studs for output terminals, which are rated for up to 25A per circuit. Compatible with 88 Series breakers, this fuse block provides flexible circuit management for various power needs. Built with stainless steel hardware, nickel-plated copper conductors, and a durable polycarbonate body, the fuse block is designed to withstand harsh marine and outdoor conditions. Mounting is straightforward, with 0.175-inch mounting holes spaced appropriately for both 6 and 12-position models. Whether you are building a new power system or upgrading an existing one, the Bluewater fuse block offers a professional-grade solution that ensures safety, organization, and ease of maintenance. Its innovative design and high-quality materials make it an essential component for reliable electrical management in demanding environments.
Features:
- Rated for 48V DC systems, supporting up to 100A input current for versatile applications
- Supports up to 12 circuits with 25A per circuit capacity for flexible power management
- Constructed with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body for durability
- Compatible with 88 Series and BW 38 Series breakers for reliable circuit protection
- Easy mounting with 0.175-inch holes spaced for both 6 and 12-position configurations
Bluewater 6 & 12-Position ATC Fuse Block with Yellow Slide for Marine and RV Applications
The Bluewater 3200-3003-006 fuse block offers a reliable and organized solution for managing low-voltage electrical circuits in marine, RV, and off-grid systems. Designed to accommodate up to 12 circuits, this fuse block ensures efficient circuit separation and protection, making it suitable for complex power setups. Its robust construction and professional-grade features deliver dependable performance in demanding environments. The fuse block is rated for 48V DC systems with an input current capacity of up to 100A, supporting a wide range of electrical configurations. It uses sturdy M5 threaded studs for the main input connection and M4 threaded studs for output terminals, which are rated for up to 25A per circuit. Compatible with 88 Series breakers, this fuse block provides flexible circuit management for various power needs. Built with stainless steel hardware, nickel-plated copper conductors, and a durable polycarbonate body, the fuse block is designed to withstand harsh marine and outdoor conditions. Mounting is straightforward, with 0.175-inch mounting holes spaced appropriately for both 6 and 12-position models. Whether you are building a new power system or upgrading an existing one, the Bluewater fuse block offers a professional-grade solution that ensures safety, organization, and ease of maintenance. Its innovative design and high-quality materials make it an essential component for reliable electrical management in demanding environments.
Features:
- Rated for 48V DC systems, supporting up to 100A input current for versatile applications
- Supports up to 12 circuits with 25A per circuit capacity for flexible power management
- Constructed with stainless steel hardware, nickel-plated copper conductors, and a tough polycarbonate body for durability
- Compatible with 88 Series and BW 38 Series breakers for reliable circuit protection
- Easy mounting with 0.175-inch holes spaced for both 6 and 12-position configurations
BRAND: Bluewater
Manufacturer Part Number: 3200-3003-006
