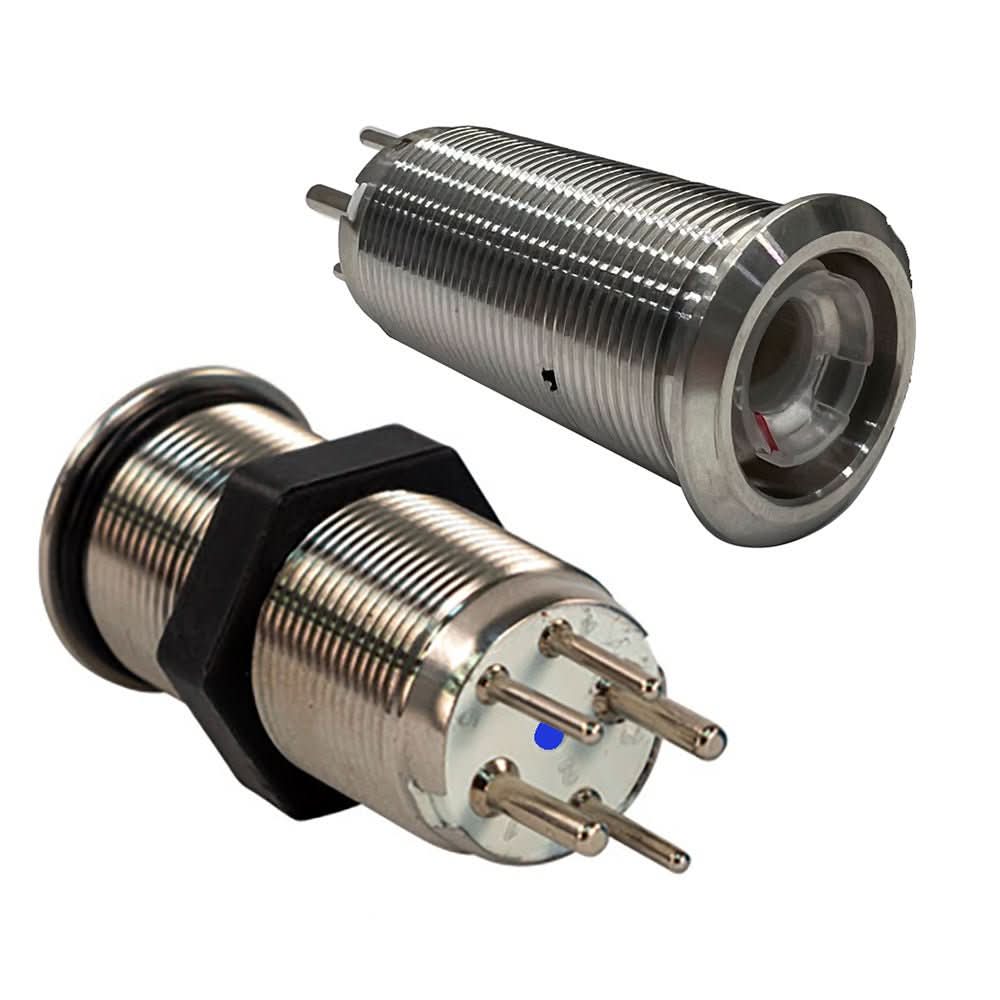

Bluewater 19mm Inrush Push Button Switch Off/On/On with LED Indicators - Marine Grade, Waterproof, Stainless Steel - 9057-3113

Bluewater 19mm Inrush Push Button Switch Off/On/On with LED Indicators - Marine Grade, Waterproof, Stainless Steel

The Bluewater 9057-3113 19mm Inrush Push Button Switch is designed for demanding marine and outdoor environments where durability and space efficiency are critical. Encased in corrosion-resistant SS316 stainless steel, this switch offers a robust, marine-grade solution with a sealed IP69K waterproof rating secured by Bluewater's proprietary Deutsch-style connectors. Its compact size makes it ideal for tight panel layouts, ensuring reliable operation even under harsh conditions such as salt spray, washdowns, and high humidity. The switch's sealed design and rugged materials provide peace of mind for boat builders, marine technicians, and outdoor equipment installers who require dependable electrical controls in challenging environments. The switch features a fully detachable, customizable actuator to suit various aesthetic and functional preferences, enabling easy installation and maintenance. Its integrated LED indicators provide immediate visual feedback, with a soft blue backlight for low-light visibility and a bright red glow to confirm active status. Rated for 15 amps at 12-24VDC, the switch can handle high current loads efficiently, supporting both single-channel and dual-channel configurations for versatile applications. The switch contacts include options for normally open and normally closed circuits, accommodating a range of control schemes. Designed for longevity, it boasts a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, ensuring consistent performance over time. Installation involves drilling a 19mm hole through materials up to ¼ inch thick, connecting the specified contacts (color-coded for safety), and securing the switch in place. The high-quality nickel-plated brass and stainless steel construction combined with the waterproof sealing make this switch an essential component for reliable, marine-grade electrical control systems.

Features:

• Marine-grade stainless steel housing providing corrosion resistance and durability

• IP69K rated waterproof seal suitable for harsh outdoor and marine environments

• Bright LED indicators in blue, green, and red for clear status indication

• Rated for 15 amps at 12-24VDC with support for single or dual channel configurations

• Detachable, customizable actuator for tailored operation and aesthetics

• Robust mechanical lifespan of 50,000 cycles and electrical lifespan of 10,000 cycles

• Easy installation through a 19mm panel cutout with simple wiring connections

• Proprietary Deutsch-style connectors for secure and reliable connections

BRAND: Bluewater

Manufacturer Part Number: 9057-3113
