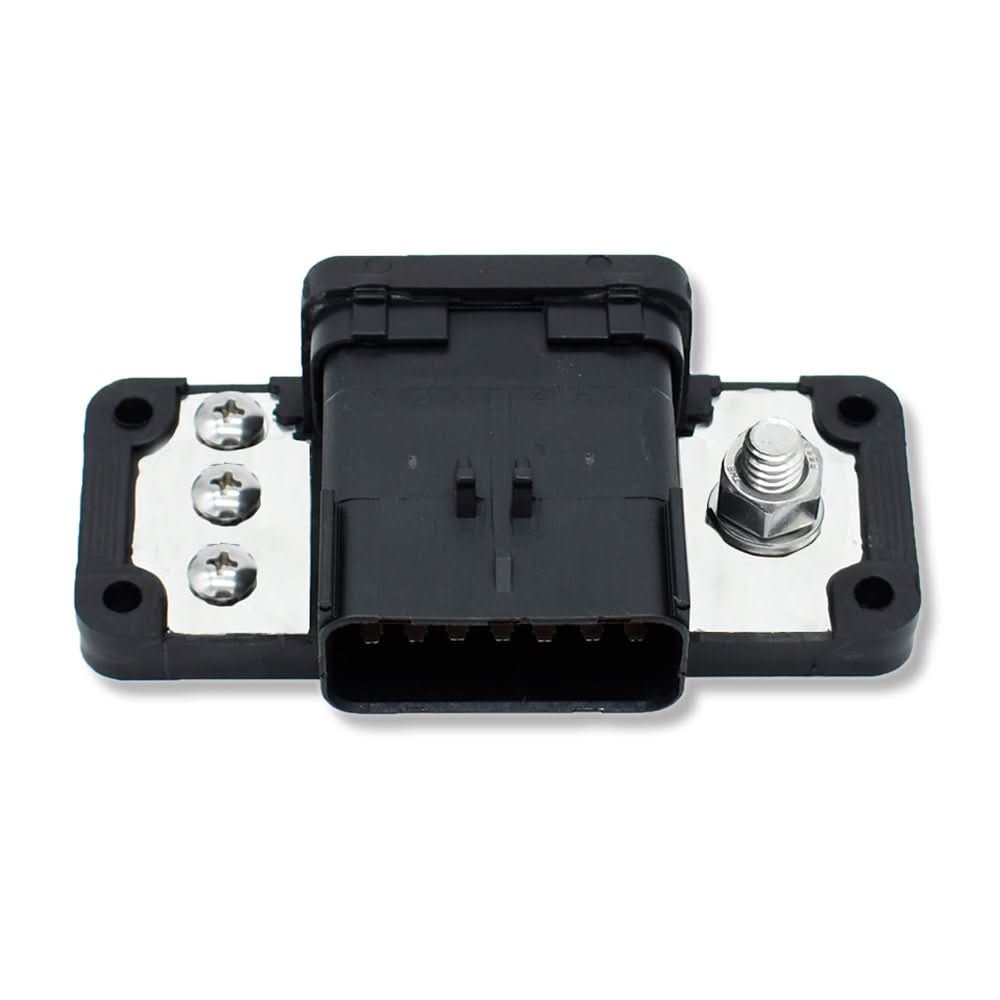

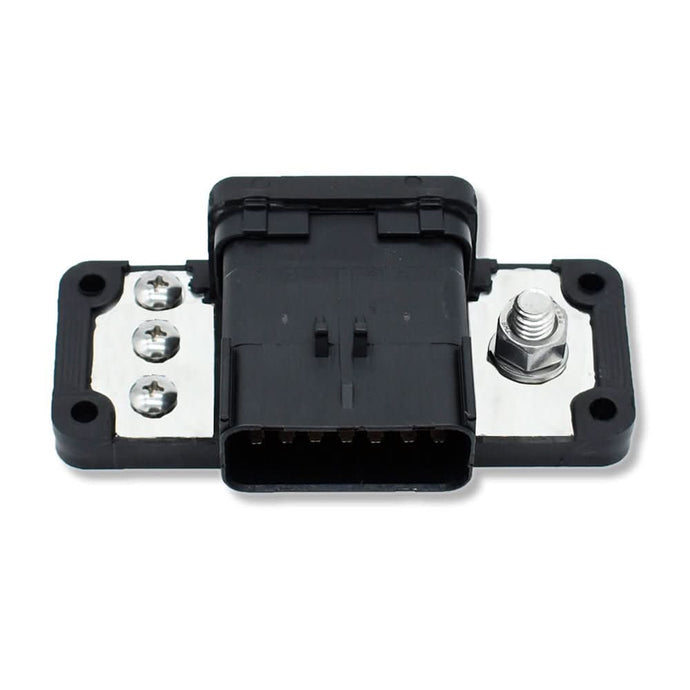

Bluewater 14 Position FCI Busbar with 3 Screw 1 Post - 150A DC Marine Electrical Connection - 2314-B-001

Bluewater 14 Position FCI Busbar with 3 Screw 1 Post - 150A DC Marine Electrical Connection

The Bluewater 14 Position FCI Busbar with Part Number 2314-B-001 is engineered for demanding marine, heavy equipment, and mobile applications requiring secure and reliable electrical connections. Its sealed design ensures protection against water ingress and harsh environmental conditions, making it ideal for environments exposed to moisture, salt spray, and vibrations. Constructed with durable polyamide housing and featuring a rugged copper plate with tin plating, this busbar offers excellent corrosion resistance and stable conductivity over time. The inclusion of stainless steel studs and a robust RETPU overmolded base enhances durability and simplifies installation in challenging settings. This busbar supports a current rating of 150A at 48V DC, accommodating wire gauges from 20 AWG to 12 AWG, and features a compact footprint for streamlined wiring management. Suitable for applications where space efficiency and electrical integrity are critical, it provides a secure connection for multiple circuits using standard FCI connectors. The busbar’s IP68 sealing protection ensures dependable performance even in water-immersed conditions, and its temperature rating from -40°C to +125°C guarantees reliable operation across a broad temperature spectrum. Designed with four mounting holes for flexible installation, this busbar is a dependable choice for maintaining power distribution in demanding operational environments.

Features:

• Current Rating: 150A at 48V DC for high-capacity power distribution

• Number of Positions: 14 for multiple circuit connections

• Wire Gage Range: Supports 20 AWG to 12 AWG wiring

• Terminal Size: 2.8 mm for secure connections

• Housing Material: Durable polyamide (PA) providing corrosion resistance

• Sealing Protection: IP68 rated for water ingress protection

• Temperature Range: Operates reliably from -40°C to +125°C

• Input Connector: Male 54201415 compatible with FCI systems

• Mate Connector: Female 54201411 for secure mating

• Plate Material: 2mm thick copper with tin plating for conductivity and corrosion resistance

• Stud: Stainless steel 3/8 for durability in harsh environments

• Base: RETPU overmolded for added strength and stability

• Mounting Holes: Four mounting points with 0.20-inch diameter for flexible installation

BRAND: Bluewater

Manufacturer Part Number: 2314-B-001
