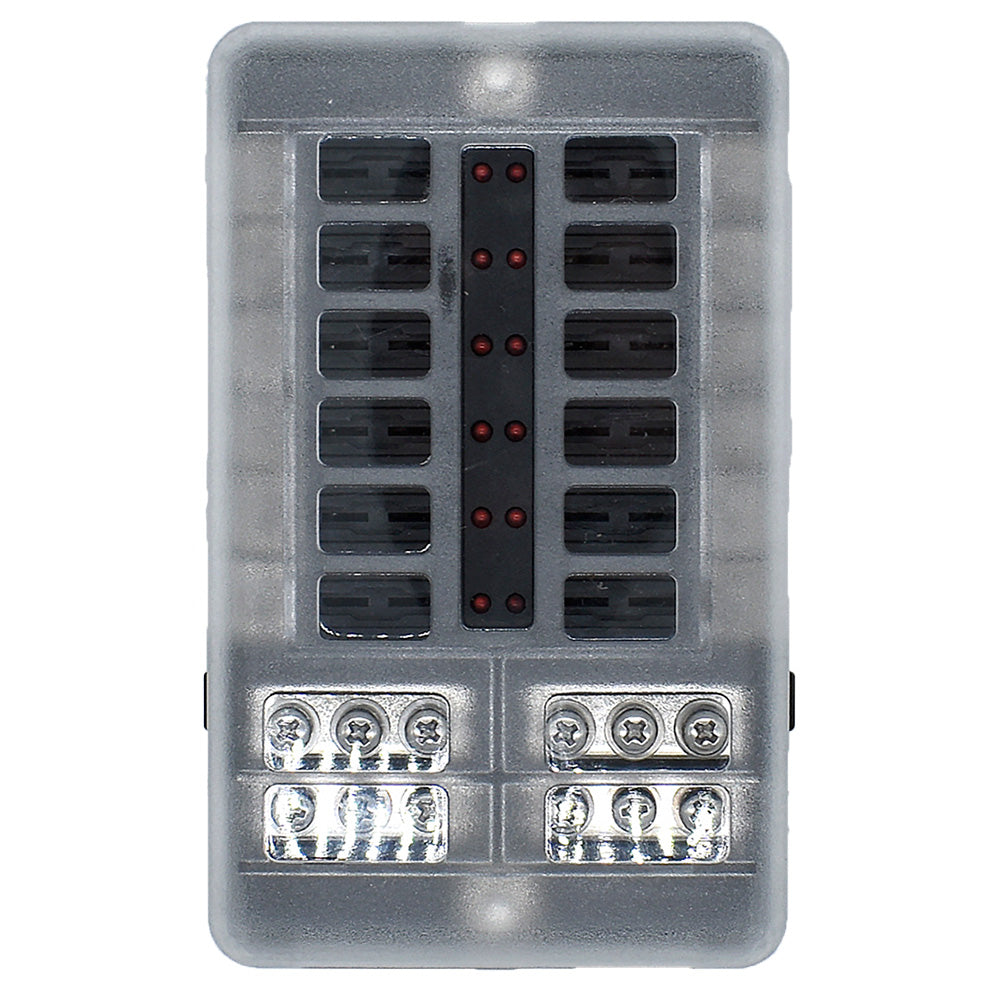

Bluewater 12-Position LED Fuse Block - 48V DC Marine and Mobile Power Distribution - 3200-0001-012
Manufacturer Part #: 3200-0001-012
Couldn't load pickup availability
The Bluewater 12-Position Fuse Block with LEDs is a reliable solution designed to streamline circuit protection and troubleshooting in 48V DC systems. Its 12 circuit capacity allows for organized wiring in marine, RV, or mobile applications, supporting up to 30A per circuit. The integrated LED indicators provide real-time visual alerts when a fuse blows, enabling quick identification and swift maintenance to minimize system downtime.
Constructed with durable materials including stainless steel, nickel-plated copper, and polycarbonate, this fuse block offers excellent corrosion resistance and long-term durability even in harsh environments. The input terminals feature M5 threaded studs rated for 100A, accommodating high current loads, while the output terminals use M4 threaded studs rated for 25A per circuit. Compatible with 88 Series and BW 38 Series breakers, it offers versatile circuit protection options.
Installation is straightforward with mounting holes spaced at 4.725 inches high and 2.725 inches wide, designed for secure and clean wiring arrangements. The sturdy housing and high-quality components make this fuse block suitable for both new installations and upgrades, providing a professional, organized power distribution point that simplifies maintenance and enhances system reliability.
Whether used in marine vessels, RVs, or mobile workstations, the Bluewater 12-Position Fuse Block with LEDs delivers a compact, efficient, and easy-to-maintain solution for managing multiple circuits in high-current 48V DC systems. Its robust construction and integrated LED indicators make it an essential component for ensuring system safety and operational continuity.
Features:
- Supports up to 12 circuits with individual LED indicators for fuse status
- Supports max voltage of 48V DC and input current of 100A
- Compatible with 88 Series and BW 38 Series circuit breakers
- Input terminals feature M5 threaded studs rated for 100A
- Output terminals feature M4 threaded studs rated for 25A per circuit
- Constructed from stainless steel, nickel-plated copper, and polycarbonate for durability and corrosion resistance
- Mounting holes spaced at 4.725 inches high and 2.725 inches wide for secure installation
Bluewater 12-Position LED Fuse Block - 48V DC Marine and Mobile Power Distribution
The Bluewater 12-Position Fuse Block with LEDs is a reliable solution designed to streamline circuit protection and troubleshooting in 48V DC systems. Its 12 circuit capacity allows for organized wiring in marine, RV, or mobile applications, supporting up to 30A per circuit. The integrated LED indicators provide real-time visual alerts when a fuse blows, enabling quick identification and swift maintenance to minimize system downtime.
Constructed with durable materials including stainless steel, nickel-plated copper, and polycarbonate, this fuse block offers excellent corrosion resistance and long-term durability even in harsh environments. The input terminals feature M5 threaded studs rated for 100A, accommodating high current loads, while the output terminals use M4 threaded studs rated for 25A per circuit. Compatible with 88 Series and BW 38 Series breakers, it offers versatile circuit protection options.
Installation is straightforward with mounting holes spaced at 4.725 inches high and 2.725 inches wide, designed for secure and clean wiring arrangements. The sturdy housing and high-quality components make this fuse block suitable for both new installations and upgrades, providing a professional, organized power distribution point that simplifies maintenance and enhances system reliability.
Whether used in marine vessels, RVs, or mobile workstations, the Bluewater 12-Position Fuse Block with LEDs delivers a compact, efficient, and easy-to-maintain solution for managing multiple circuits in high-current 48V DC systems. Its robust construction and integrated LED indicators make it an essential component for ensuring system safety and operational continuity.
Features:
- Supports up to 12 circuits with individual LED indicators for fuse status
- Supports max voltage of 48V DC and input current of 100A
- Compatible with 88 Series and BW 38 Series circuit breakers
- Input terminals feature M5 threaded studs rated for 100A
- Output terminals feature M4 threaded studs rated for 25A per circuit
- Constructed from stainless steel, nickel-plated copper, and polycarbonate for durability and corrosion resistance
- Mounting holes spaced at 4.725 inches high and 2.725 inches wide for secure installation
BRAND: Bluewater
Manufacturer Part Number: 3200-0001-012
